Manufacturers continue to make improvements in heat-pump technology, including higher efficiencies, contractor-friendly designs, and innovative extras like two-stage compressors that allow them to run at lower speeds and cut down energy use and homeowners’ bills. Below is a sampling of six of the latest products to hit the heat pump market.

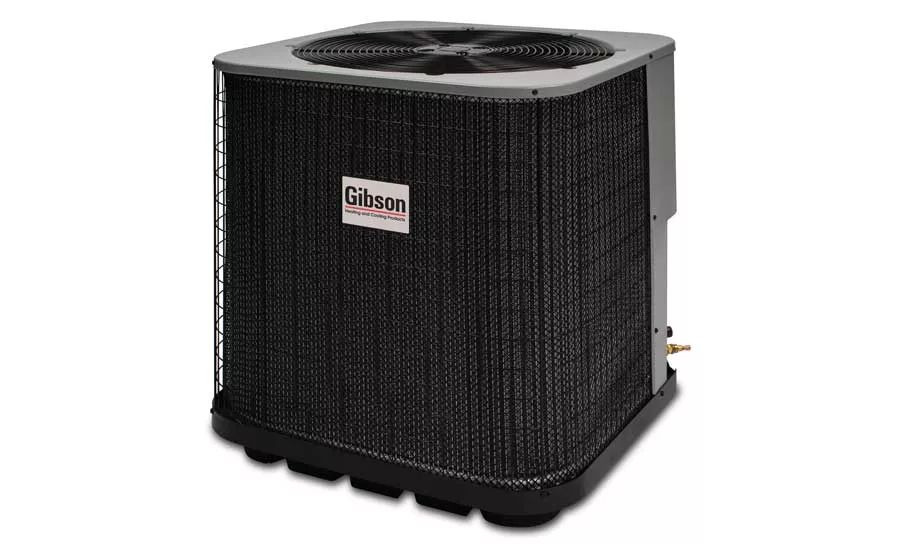

Nortek Global HVAC introduced the W-Series of air conditioning and heat pump equipment for residential and light commercial applications, completing its redesign of Gibson®, NuTone®, and Frigidaire® branded 1.5- to 5-ton, single-phase air conditioning units and heat pumps. The redesign offers contractors a “good-better-best” strategy (the premium F-Series, the mid-range E-Series, and the economically-priced W-Series) to accommodate varying consumer price ranges.
The W-Series heat pump is available in 14- and 16-SEER models. Standard features include Copeland scroll compressors and a liquid line filter-drier for field installation in an accessible position to facilitate easy periodic change-outs. It also has a coil-protecting wire guard that adds cabinet structural integrity and holds a plastic mesh in place to safeguard against hail and accidental contact damage, plus an anti-corrosive polymer drain pan with more drainage holes to eliminate potential standing water.
On the unit’s exterior cabinet, above the refrigerant access port, is a weather-proof QR code called “Charge Me” that can be scanned to access Nortek’s charge assist tool (www.chargecalculator.com).
“The new W-series of heat pumps recently introduced by Gibson, Frigidaire, and NuTone features a high-tech way to charge,” said Dave Garvin, product manager, Nortek Global HVAC. “The proprietary website helps account for subcooling, fixed orifices, thermostatic expansion valves, ambient temperature at time of charging, lineset length, and other variables that can trip up contractors when charging any heat pump brand.”
RHEEM MFG. CO.
The Rheem® Prestige® Series EcoNet®-Enabled Variable Speed Heat Pump features a contractor-friendly design, which means expanded valve space and triple service access, for fast and easy install and repairs. Corner-service access allows optimal access to internal components, while individual louver panels speed coil cleaning and cabinet reassembly. Plus, Rheem’s next generation Prestige® heat pump harnesses the power of the new EcoNet Smart Thermostat, which provides control, monitoring, and one-touch alert capability.
“Rheem’s Prestige Heat Pump powered by our EcoNet Smart Thermostat keeps contractors in control,” said Ryan Teschner, product manager for Rheem Mfg. “From real-time alerts and system notifications to a charge mode capability, which allows for proper installation and reduced time on the job, Rheem’s heat pump increases job site efficiencies and reduces labor costs for contractors.”
A. O. SMITH
The hybrid electric Voltex® from A. O. Smith has an energy factor (efficiency based on the amount of hot water produced per unit of fuel consumed over a typical day) of 2.3, and is Energy Star® qualified.
“Heat pump water heaters use electricity to pull heat from the surrounding air rather than generating their own heat,” said Brandon Stepanek, national field marketing manager at A. O. Smith. “This means that they can be a logical choice for dedicated green home builders interested in enhancing energy efficiency.
“Because a heat pump water heater uses energy efficiently, it can save customers up to 10 percent on energy bills, which adds up to thousands of dollars over the life of the water heater,” he continued. “The significant reduction in electricity use also has a direct effect on reducing greenhouse gas emissions.”
Carrier’s Performance™ Series heat pumps offer a range of efficiencies that start at 14 SEER and reach 17.5 SEER and up to 9.5 HSPF. Combining a gas furnace, an electric heat pump, and a compatible thermostat, Carrier’s Hybrid Heat systems automatically switch between electric and gas heating to optimize the efficiency of each fuel source, helping defend homeowners against utility cost fluctuations. They have Energy Star designation.
“Our microtube coil technology saves space and provides lasting comfort with its corrosion-resistant construction,” the company stated. “In addition, some models include innovative extras, like a two-speed compressor for added benefits like higher efficiency and even, consistent comfort. When installed with a custom-matched Carrier indoor furnace or fan coil and a Côr® Wi-Fi® thermostat, our two-stage heat pumps can operate on low stage up to 80 percent of the time to keep airflow and temperatures even and consistent while adding humidity control during cooling operation.”
FUJITSU GENERAL AMERICA INC.

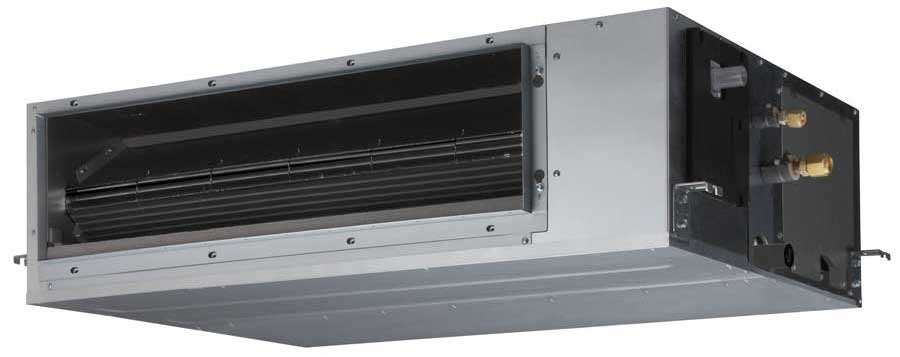

Fujitsu General America Inc. recently debuted the RGLX Series, three medium-static pressure ducted indoor units for the single-zone Halcyon mini split line. They have sufficient static pressure to heat or cool a whole house. Heating operation is rated down to minus 5˚F outdoor temperature. The 12,000-, 18,000-, and 24,000-Btuh models are Energy Star qualified.
Units are available in seven sizes ranging from 12,000 to 48,000 Btuh, with efficiency ratings up to 21.3 SEER. The evaporators are slim enough to fit most ceiling spaces, making them ideal for hidden installations, while the condensing units can be installed below a window or in a narrow space. The new models can be installed in applications that require static pressure up to 0.80 inches of water column and offer maximum piping lengths of up to 246 feet. A built-in drain pump with 33.5 feet of vertical lift comes standard.
“The combination of the V-shaped heat exchanger, air stabilizer, and the energy-efficient DC fan motor results in high efficiency and quiet operation,” Fujitsu wrote in the product specs.
GOODMAN MFG. CO. L.P.

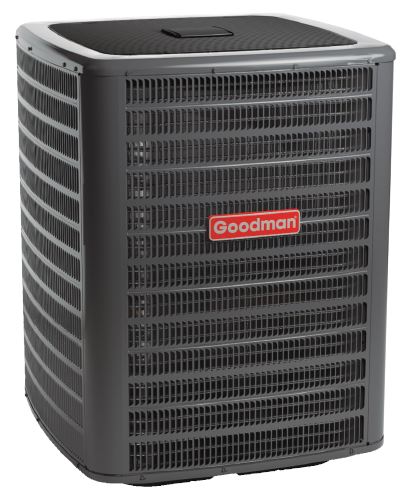

The Goodman GSZC18 Heat Pump features the next-generation Copeland Scroll™ two-stage compressor coupled with Goodman’s ComfortBridge® communicating technology to deliver up to 19 SEER and 10 HSPF performance. ComfortBridge “off-the-wall” technology gives contractors more installation options and intelligent controls. It works with any thermostat, including single-stage ones.
ComfortBridge constantly gathers data, making automatic adjustments for peak performance, using the minimum energy needed for consistent, customized indoor comfort. A companion CoolCloud™ app connects technicians wirelessly via Bluetooth to ComfortBridge. Advanced ComfortAlert™ Diagnostics constantly monitor the system, reducing failures and pinpointing trouble spots.
“Our 18-SEER heat pumps provide high-efficiency, energy-saving indoor comfort with the ease of installation as compared to less sophisticated products,” said Cory Gottfredson, senior product manager, Outdoor Split Systems for Goodman. “We have incorporated ComfortBridge technology to optimize installation while allowing homeowners to use any thermostat. This truly enhances both operation and installation, freeing contractors from hassles and leaving money in the hands of homeowners where it belongs.”
The scroll compressor inside the GSZC18 is designed with fewer moving parts, and the high-efficiency, two-speed electronically commutated condenser fan motor with advanced fan design provides quiet airflow. Other features include SmartShift® technology with short-cycle protection, a bi-flow liquid-line filter-drier, suction line accumulator, high- and low-pressure switches, coil and ambient temperature sensors, a transformer, compressor crankcase heater, high-capacity muffler, and a color-coded terminal strip for non-communicating set-up.
Publication date: 5/20/2019
