HVAC Product Roundup: August 2015
Wi-Fi®-capable Residential Communicating Control
Johnson Controls recently introduced the Wi-Fi®-capable Luxaire® Acclimate™ Residential Communicating Control, offering an intuitive interface and remote access, making installation and troubleshooting easy.
The unit instantly syncs with an integrated control that connects each piece of intelligent Luxaire Acclimate equipment – gas furnaces, air conditioners, heat pumps and air handlers – via familiar four-wire connections and a plug and play design. Configuration of the unit is easy through contractor-accessible menus.
Contractors can ask homeowners to provide them with access to automated system faults and notification alerts via email.
The Wi-Fi capability provides homeowners with remote access to the control system from their smartphone or tablet device using the IntelliComfort™ mobile app, allowing them to easily monitor the status of every enabled system device –from the air conditioner to the furnace to the air handler to the heat pump.

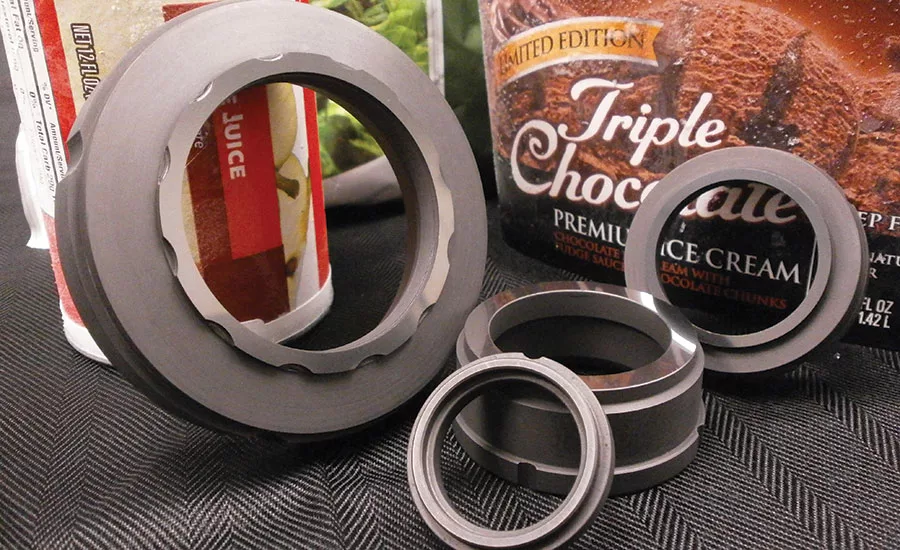

Mechanical Seal Primary Rings for Sealing Refrigerants and Other Low Viscosity Liquids
Metallized Carbon Corp. has introduced mechanical seal primary rings for sealing refrigerants and other low viscosity liquids.
Designing mechanical seals for sealing refrigerants and other low viscosity liquids has been a difficult problem for seal manufacturers for many years. It has now been established that mechanical seals with antimony impregnated, carbon-graphite primary rings and solid silicon carbide counter face rings can solve this problem. Low viscosity liquids such as Freon refrigerants, liquid oxygen, liquid carbon dioxide, propane, ethylene and acetone are now being successfully sealed using mechanical seals with Metcar Grade M-444, antimony impregnated, carbon-graphite primary seal rings.
It is the self-polishing characteristic of the M-444, antimony impregnated, carbon-graphite material and the high dimensional stability of both solid silicon carbide and antimony impregnated carbon-graphite that enable these two materials to run in the required close proximity.
Metallized Carbon Corp.

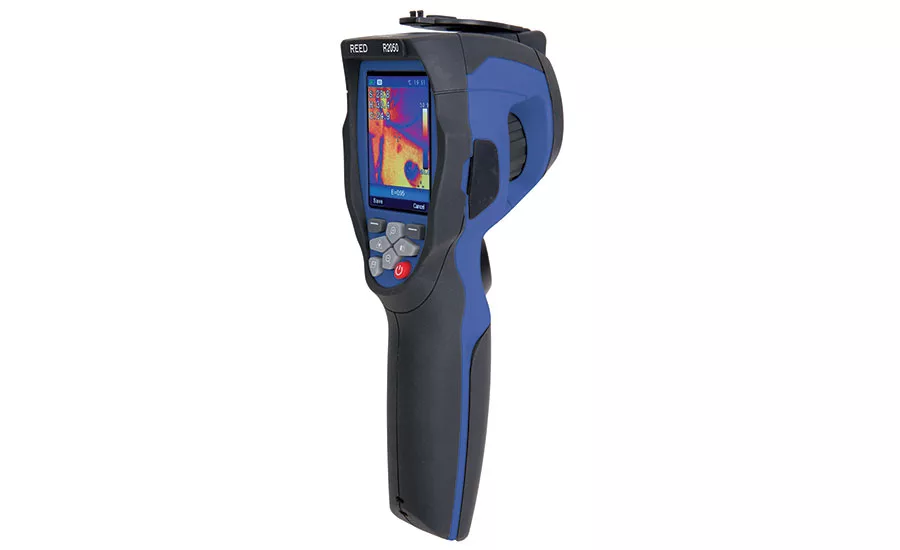

Pixel Thermal Imager
REED Instruments has introduced the R2050 80 x 80 pixel thermal imager. With a low price point, this thermal imager is an excellent entry-level camera loaded with features.
• IR Resolution: 80 x 80 (6,400 pixels).
• Thermal Sensitivity: <0.1°C.
• Temperature Range: -20 to 350°C (-4 to 662°F).
• 5.0mp digital camera, 32X digital zoom and the ability to record video with audio.
• 2 Meter Drop Tested.
• Comes complete with li-ion battery, earphones, wrist strap, USB/HDMI cable, micro SD card, software and carrying case.
Thermal Imager Applications
Thermal imagers are a beneficial tool for electrical inspection, mechanical inspection, predictive maintenance, equipment troubleshooting and verification.
Expanding AT Cooling Tower Line
EVAPCO Inc. has expanded its AT (Advanced Technology) line of factory-assembled cooling towers with more than 200 new models, offering customers improved efficiency and a more complete range of selections. Featuring the same easy maintenance and durable construction that the AT line is known for, the new models offer an even more efficient design, with less energy consumption through decreased horsepower.
The AT Cooling Tower product line utilizes induced draft, counterflow technology that is well suited for operation in any climate. With a CTI-certified capacity range of 33 to 5,141 Nominal Tons and more than 1,100 models to choose from, EVAPCO offers an AT Cooling Tower for every application. Standard construction consists of G-235 (Z 700 metric) galvanized steel with Type 304 or 316 stainless steel upgrades available.

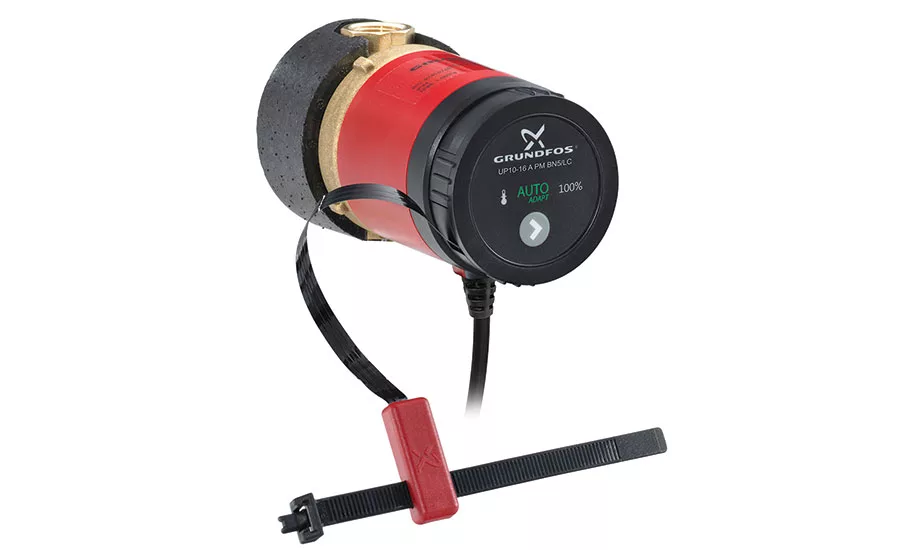

COMFORT PM Recirculating Pump Uses AUTOADAPT to Cut Residential Energy Costs up to 85 percent
The new Grundfos COMFORT PM AUTO® range of residential circulating pumps sets the standard for intelligent and energy-efficient hot water recirculation through its AUTOADAPT function, which learns the household’s consumption patterns and then adapts to it.
When using the AUTOADAPT mode, average run times are only three hours per day, yielding up to an 85 percent power and 48 percent heat/energy savings over conventional constant-speed circulators.
The single phase, 115V pump motor yields up to 6.5 GPM and uses two temperature sensors — one within the pump and another connected by a cable installed in the hot-water flow pipe.
The AUTOADAPT function is so powerful that eight out of every 10 installations can rely on this feature to automatically select the optimal setting, with no additional human intervention. For the installer, that simply means plug and play and walk away.

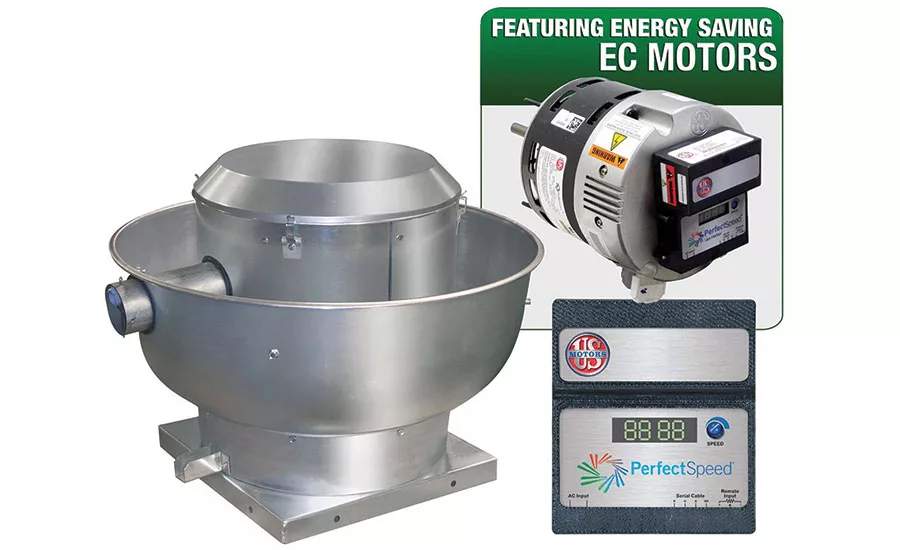

New ALX-UD-EC Series – Upblast Direct Drive Spun Aluminum Exhausters
Ideal for exhausting air from restaurants, offices, warehouses or commercial buildings – the ALX series spun aluminum exhaust fan is usable as either a rooftop or wall mount exhaust fan.
These units feature perfect speed EC motors, providing up to 82 percent efficiency and an energy savings of up to 70 percent over regular duty PSC motors.
Other features of the ALX-UD-EC Series Spun Aluminum Exhausters include:
• Spun aluminum housing will not rust, chip or peel.
• Aluminum backward inclined wheel is nonoverloading.
• EC motors offer true variable speed operation and significant energy savings over PSC motors (up to 70 percent).
• On-board speed adjustment allows simple setup and balancing with LED display.
• Can be controlled remotely up to 50’ using a remote mount potentiometer or 0-10V.
• All motors are 1 Phase 120/240V operation and can be operated at 50 or 60 Hz.
• All units can be wall mounted.
• Quick release latches for easy motor access.

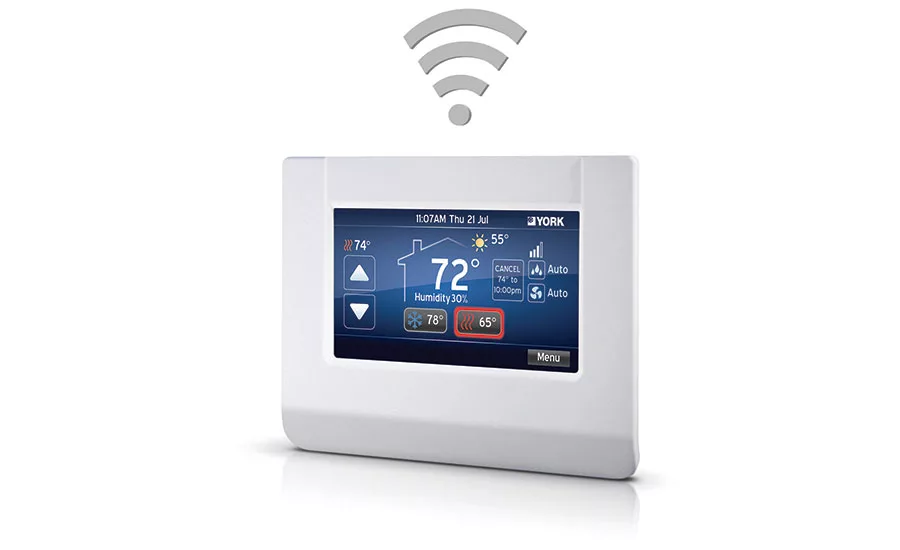

Johnson Controls Introduces Wi-Fi®-Capable York® Residential Communicating Control
The new Wi-Fi®-capable York® Affinity™ Residential Communicating Control from Johnson Controls, a global multi-industrial company with established core businesses in the automotive, building and energy storage industries, offers an intuitive interface and remote access, which makes installation and troubleshooting routines easy.
The Wi-Fi capability provides homeowners with remote access to the control system from their smartphone or tablet device using the IntelliComfort™ mobile app, allowing them to easily monitor the status of every enabled system device – from the air conditioner to the furnace to the air handler to the heat pump. Contractors can ask homeowners to provide them with access to automated system faults and notification alerts via email.
Contractors save installation time with familiar four-wire connections to all York® Affinity™ gas furnaces, air conditioners, heat pumps and air handlers. The plug and play design instantly syncs with an integrated control that connects with each piece of intelligent equipment.
