Company: Ruskin Co.

Product: AIRFLOW-IQ

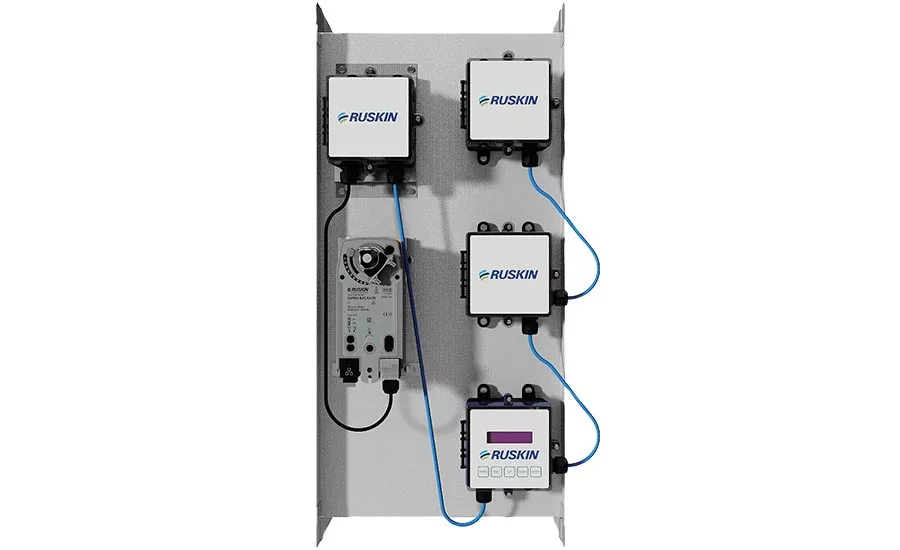

Description: This product brings together an electronic air measuring station with BACnet actuator and Class 1A damper. It combines the features of the Ruskin TDP05K airflow and temperature measuring probes with the Ruskin CD50 control damper and the Ruskin VAFB24-BAC RAMS Air Measurement BACnet actuator. Features include thermal dispersion flow and temperature sensors; factory-calibrated controller in nonvolatile, erasable, programmable, read-only memory; and factory-mounted 24-V modulating actuators. There is a single-point 24-V power connection, and temperature as well as altitude are compensated. It helps satisfy the requirements for minimum outside air as required by ASHRAE 62.1, 90.1, and 189.1, California Title 24, International Mechanical Code (IMC), and International Energy Conservation Code (IECC). The device can be customized to fit a variety of applications with a custom density probe/sensor array, NEMA 4 control enclosure, opposed damper blade action, insulated blade damper, silicone damper blade seals, stainless steel linkage, and stainless steel jackshaft options.

Contact: 816-761-7476; www.ruskin.com; eproduct 184
