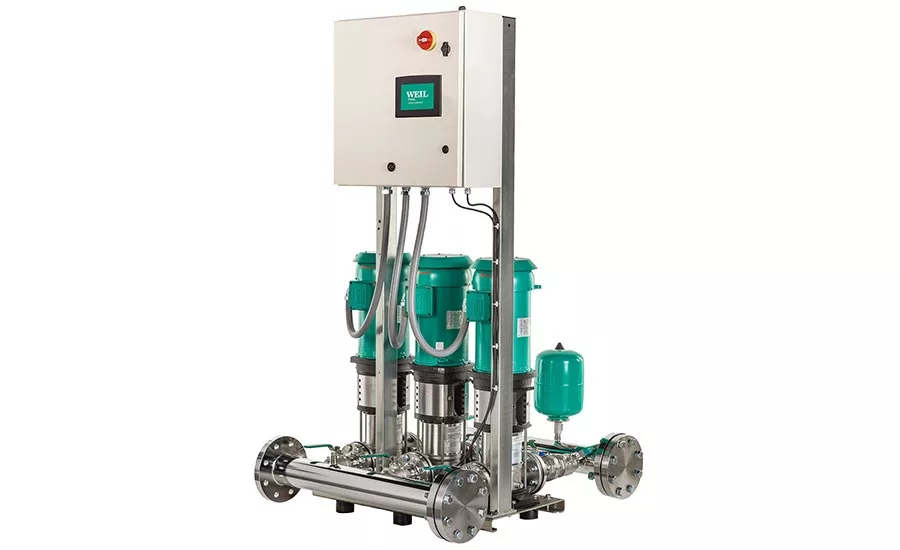

Description: The booster systems combine Weil’s programmable logic controller (PLC) panels with Wilo-Helix V pumps and are available in 2-, 3-, or 4-pump configurations. The multi-pump systems offer real-time diagnostics and remote monitoring with variable speed-control and balanced run time for each pump. The systems have a maximum head of 780 feet, maximum flow of 550 gpm, rated pressure of 232 psi, and a liquid temperature range of minus 4° to 248°F. Additionally, these systems are NSF-61 and NSF-372 certified, have full 304 stainless steel construction, and feature 300 class ANSI flange connections.

Contact: 262-377-1399; www.weilpump.com;
