Mammoth Light Commercial

Model: Q7TQ packaged heat pump

Footprint (in inches): 89 (length) by 60 (width) by 54 (height)

Serviceability features: The sturdy, 1-inch, foam panel wall construction ensures IAQ is fiberglass-free, which inhibits mold growth. Panel walls are easy to clean and provide a high R-value. High-quality hinges eliminate screws on the roof and keep the access doors in place, even in high wind conditions. Thermostatic expansion valves (TXVs) utilize mechanical connections to simplify service.

Technical support: Available from 8 a.m. to 4:30 p.m. Central time, Monday to Friday at 800-422-4328. Technical literature is available at literature.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The foam panel wall construction provides noise reduction.

IAQ equipment supported: The foam panel wall construction provides a hard internal wall surface, allowing for easier cleaning and suppressed mold growth.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These direct replacement rooftop units come in the most popular footprint in the commercial industry. The hinged door panel provides easy access to controls, blower, and filters. It also includes all-aluminum coils for high corrosion resistance and increased heat transfer; these coils use 30 percent less refrigerant to reduce costs and save time.

Warranty information: Five-year limited warranty on the compressor and a one-year limited all parts warranty.

Special installation requirements: No curb adapter is needed for many replacement jobs. Even gas and electric connections are in the same location as many older units, so no gas or electrical reroutes are required. Factory-installed options include a stainless steel heat exchanger, disconnect switch, convenience outlet, and coated coils for coastal applications.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 200

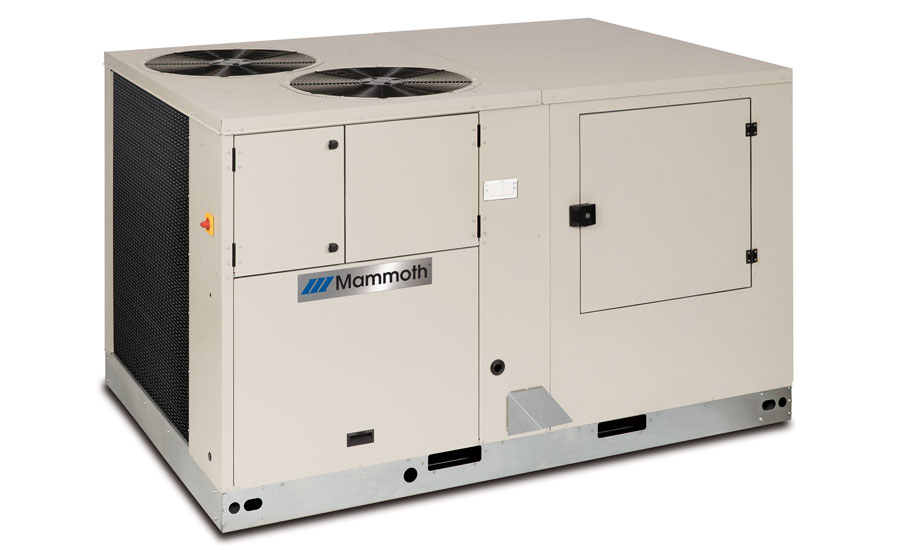

Model: R7TQ gas/electric packaged unit

Footprint (in inches): 89 (length) by 60 (width) by 54 (height)

Serviceability features: The sturdy, 1-inch, foam panel wall construction ensures IAQ is fiberglass-free, which inhibits mold growth. Panel walls are easy to clean and provide a high R-value. High-quality hinges eliminate screws on the roof and keep the access doors in place, even in high wind conditions. Thermostatic expansion valves (TXVs) utilize mechanical connections to simplify service.

Technical support: Available from 8 a.m. to 4:30 p.m. Central time, Monday to Friday at 800-422-4328. Technical literature is available at literature.nortekhvac.com.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The foam panel wall construction provides noise reduction.

IAQ equipment supported: The foam panel wall construction provides hard internal wall surface allowing for easier cleaning and suppressed mold growth.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These direct replacement rooftop units come in the most popular footprint in the commercial industry. They also includes all-aluminum coils for high corrosion resistance and increased heat transfer; these coils use 30 percent less refrigerant to reduce costs and save time.

Warranty information: Ten-year limited warranty on the heat exchanger, five-year limited warranty on the compressor, and a one-year limited all parts warranty.

Special installation requirements: No curb adapter is needed for many replacement jobs. Even gas and electric connections are in the same location as many older units, so no gas or electrical reroutes are required. Factory-installed options include stainless steel heat exchanger, disconnect switch, convenience outlet, and coated coils for coastal applications.

Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.

eProduct 201

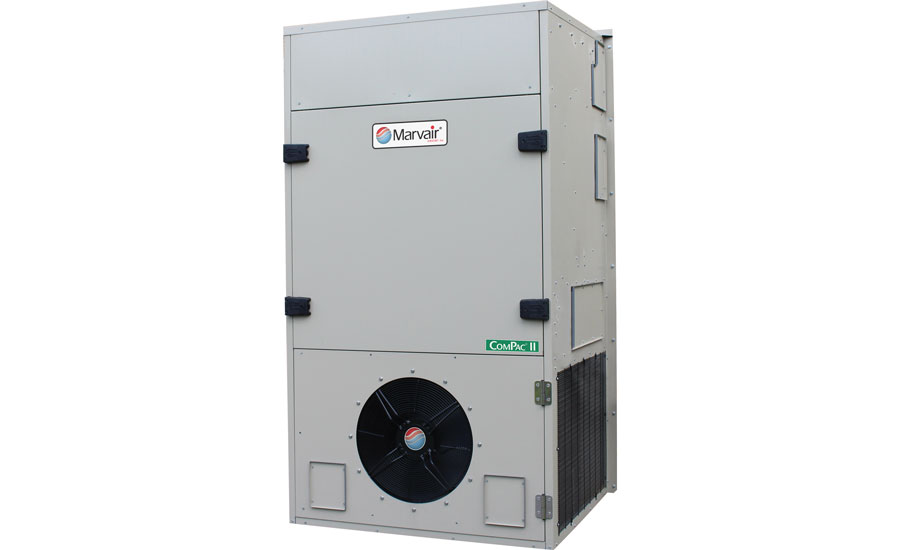

Model: ComPac AVHDA air conditioner

Footprint (in inches): 43 (length) by 46.5 (width) by 93.625 (height)

Serviceability features: The unit features panels that open to the left or right for access to the control box and evaporator motor and coil, as well as standard service access valves. The 2-inch pleated MERV 8 filter is changeable from the outside. All major components are readily accessible. The front control panel allows easy access and complies with National Electric Code (NEC) clearance codes on redundant systems. LEDs indicate operational status and fault conditions, and the sight glass indicates proper refrigerant charge and facilitates charging the unit in the field.

Technical support: Available from 8 a.m. to 5 p.m. Eastern time, Monday to Friday at 800-841-7854, ext. 5323.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The saw tooth fan blade delivers both efficiency and quiet operation. The direct drive, backward inclined, motorized impeller, evaporator motor provides high aerodynamic efficiency in a compact design and eliminates all belts and pulleys. The optimized blade geometry provides airflow at a minimum sound.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats, including the Marvair CommStat 4 and CommStat Touch.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This 10 EER, large cabinet, exterior, wall-mount air conditioner features dual high efficiency R-410A scroll compressors to match heat loads. It is available in top supply and reverse flow configurations, and a factory-installed economizer is optional. Other features include a thermal expansion valve and sealed condenser fan motor. The unit is safety listed and energy certified.

Warranty information: Ninety-day defective on arrival (DOA) warranty, one-year parts, five-year compressor. Optional extended warranties are also available.

Special installation requirements: The sloped top with flashing eliminates the need for a rain hood. Built-in mounting flanges facilitate installation and minimize the chance of water leaks. The supply and air return openings match many competitive models. A factory-installed disconnect is on all units. The single-point power entry complies with the latest edition of UL Standard 1995, and stainless steel side plates with lifting eyes provide a safe and secure method for moving the unit.

Contact: Marvair, 229-273-3636 ext. 5384; www.marvair.com.

eProduct 202



Mitsubishi Electric Cooling & Heating

Model: PLFY-P 2x2 ceiling cassette, PLFY-P05NFMU-E

Footprint (in inches): 22 (length) by 22 (width) by 8 (height)

Serviceability features: This ceiling cassette has a sleek, square-edge design and fits into the same space as many standard ceiling tiles. The unique, corner-pocket design allows access through each of the four corners for easy maintenance and height adjustments. In addition, washable filters provide about 2,500 hours of use in a standard commercial environment before cleaning is required.

Technical support: MyLinkDrive.com is Mitsubishi Electric’s online technical resource for installation help and product specifications. For additional support, technical experts are available from 8 a.m. to 7 p.m. Eastern time, Monday to Friday at 800-433-4822.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The sound level has been reduced by up to 1 dB, thanks to the introduction of a 3-D turbo fan, which results in quieter and more comfortable cooling and heating.

IAQ equipment supported: The PLFY-P supports ventilation air intake.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This ceiling cassette features technology that increases efficiency without sacrificing occupant comfort. The redesigned 3D i-see Sensor™ continuously scans the room and adjusts temperatures to maintain comfort according to the space requirements. Ventilation air intake is supported and a 3-D turbo fan allows for customized airflow patterns, providing conditioning for a variety of room layouts.

Warranty information: As part of the CITY MULTI® system, the PLFY-P is warranted to the original owner for a period of 10 years from the date of installation, if the system is designed by a Diamond Designer using the MEUS Diamond System Builder™ and the installing contractor has successfully completed the CITY MULTI MEUS approved training course. The complete warranty documents can be found on MyLinkDrive.com: http://meus1.mylinkdrive.com/Policies/index.html.

Special installation requirements: The 3D i-see Sensor requires the use of a PAR-32MAA-J controller.

Contact: Mitsubishi Electric US Inc.’s Cooling & Heating Division, 703-797-7107; www.mehvac.com.

eProduct 203



Panasonic

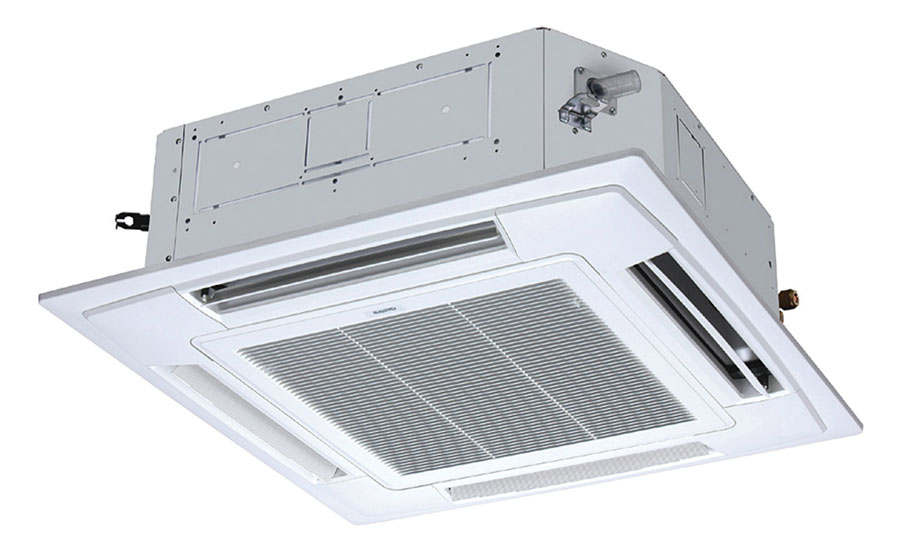

Model: S-42PU2U6 (indoor) and U-42PE1U6 (outdoor) heat pump

Footprint (in inches): 33 (length) by 33 (width) by 13 (height)

Serviceability features: The unit features easy side panel access for both electrical and refrigeration connections as well as a washable integrated filter and a built-in condensate pump. The alarm status is displayed at the controller, and integrated ECONAVI intelligent comfort sensors are optional, as is the smart connectivity controller. The unit offers Wi-Fi and BACnet connectivity.

Technical support: Available at 800-851-1235. Free installation training (web-based and in-person) is available. Full installation instructions are available in the package and on the website.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The unit features whisper-quiet operation with a newly developed turbo fan and decreased resistance of the air path. The recent change from an AC fan motor to a DC fan motor enhances efficiency and significantly decreases noise.

IAQ equipment supported: Integrated washable filters are standard.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The four-way discharge improves air mixing characteristics for better temperature control. ECONAVI intelligent comfort sensors increase occupant comfort and reduce costs, while oscillating diffusers enhance air mixing and flow characteristics. The built-in condensate pump removes moisture, and the built-in float safety prevents flooding. The three fan speeds improve output modulation. Optional snow hood and wind baffles are also available.

Warranty information: Up to 10-year compressor and parts warranty subject to training and certification.

Special installation requirements: None.

Contact: Panasonic, 678-810-0258; us.panasonic.com/hvac.

eProduct 204



Reznor

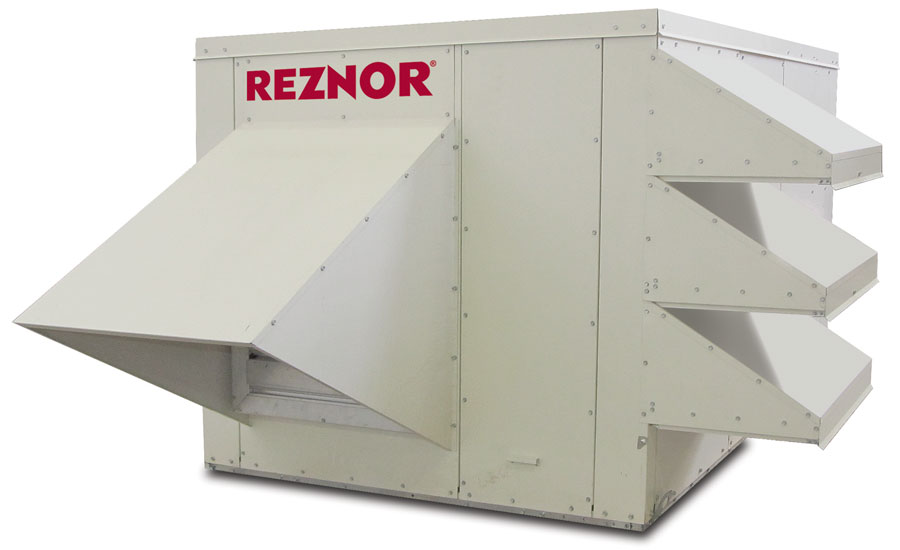

Model: Demand Ventilator, ZQYRA

Footprint (in inches): 70 (length) by 49 (width) by 45 (height)

Serviceability features: The direct-drive fans require no belt adjustments. Units leaving the factory have the cfm set by an onboard control system. The units are factory charged, so no field adjustment is required. The disconnect is factory installed. The unit offers access panels to all critical areas, including the filter, fans, controls, and compressors, and is field convertible to horizontal and vertical discharge.

Technical support: Available from 8 a.m. to 4:30 p.m. Central time at 800-422-4328.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets. Performance software available at www.reznorhvac.com/en/na/home.

Noise-reduction features: The unit includes a compressor sound blanket.

IAQ equipment supported: The unit supports a demand-control ventilation sequencer.

Thermostat compatibility: The unit has an onboard, built-in control system. An external thermostat is not applicable.

Replacement parts compatibility: Does not share replacement parts with other models.

Additional features: The unit features high latent performance, with tight control of building humidity. There is no excessive air movement, as only the required amount of air is moved based on the scenario, resulting in fan energy savings. The unit regulates discharge temperature, which decreases the building load and minimizes system complexity while providing unlimited economizer for maximum energy efficiency. Its small footprint and simple design result in minimal space requirements, effortless system integration, and uncomplicated maintenance.

Warranty information: Two-year, non-prorated warranty on all parts. An extended warranty may be purchased.

Special installation requirements: None.

Contact: Nortek Global HVAC, 800-695-1901; www.reznorhvac.com.

eProduct 205



Rheem

Model: Prestige Series packaged gas/electric rooftop unit (Renaissance Line) RGEDZT090AC*****A

Footprint (in inches): 90 (length) by 60 (width) by 51 (height)

Serviceability features: The Renaissance Line offers several unique features, such as the Qwik-Clean drain pan, Qwik-Slide blower assembly, and Qwik-Change flex fit rack with standard size filters and lockable external gauge ports. The dual seven-segment LED display also enhances serviceability and allows for quick diagnostics and problem-solving.

Technical support: Customers can access MyRheem.com for technical support information, such as FAQs, literature, and spec sheets, or use the QR codes on the units to access product information from a smartphone or tablet. Contractors can also contact their distributor’s Rheem service coordinator for technical support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: The Renaissance Line supports economizers, outside air dampers, and 2- and 4-inch filters.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The Renaissance Line is a simple drop-in replacement for the most common industry configurations — cutting installation time in half for substantial cost savings. There are no curb adapters required, and the inlet, outlet, and electrical connections match. Also, customers can custom choose an efficiency level as well as the options and accessories they want. This unit is compliant with the 2018 and 2023 U.S. Department of Energy (DOE) efficiency standards.

Warranty information: One-year parts warranty and five-year compressor warranty.

Special installation requirements: For installation requirements, please refer to the manufacturer’s installation manual.

Contact: Rheem, 770-351-3000; www.rheem.com.

eProduct 206



Ruud

Model: Achiever Plus Series packaged gas/electric rooftop unit (Renaissance Line) RGEDZT090AC*****A

Footprint (in inches): 90 (length) by 60 (width) by 51 (height)

Serviceability features: The Renaissance Line offers several unique features, such as the Qwik-Clean drain pan, Qwik-Slide blower assembly, and Qwik-Change flex fit rack with standard size filters and lockable external gauge ports. The dual seven-segment LED display also enhances serviceability and allows for quick diagnostics and problem-solving.

Technical support: Customers can access MyRuud.com for technical support information, such as FAQs, literature, and spec sheets, or use the QR codes on the units to access product information from a smartphone or tablet. Contractors can also contact their distributor’s Ruud service coordinator for technical support.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: The Renaissance Line supports economizers, outside air dampers, and 2- and 4-inch filters.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The Renaissance Line is a simple drop-in replacement for the most common industry configurations — cutting installation time in half for substantial cost savings. There are no curb adapters required, and the inlet, outlet, and electrical connections match. Also, customers can custom choose an efficiency level as well as the options and accessories they want. This unit is compliant with the 2018 and 2023 U.S. Department of Energy (DOE) efficiency standards.

Warranty information: One-year parts warranty and five-year compressor warranty.

Special installation requirements: For installation requirements, please refer to the manufacturer’s installation manual.

Contact: Ruud, 770-351-3000; www.ruud.com.

eProduct 207



Tempstar

Model: PGR5 packaged gas/electric rooftop unit

Footprint (in inches): 31 to 43 (length) by 47 (width) by 44 to 53 (height)

Serviceability features: This unit installs on the rooftop or ground level and offers easy three-panel access for maintenance and installation. It can also convert easily to down discharge applications.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; and submittal data sheets. Additional product information is posted online at www.GoTempstar.com.

Noise-reduction features: The unit includes a two-stage Copeland scroll compressor, which operates most of the time in the quiet, low stage. It also includes a two-stage heating system that offers similar comfort benefits in the heating mode. The outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Dehumidification mode (airflow reduction) is standard on all models, and accessory filter racks support 2-inch filters.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Units feature two-stage heating and cooling operation; stainless steel tubular heat exchangers; field convertible airflow; and high-efficiency electronically commutated (EC) indoor blower motors. With cooling efficiencies up to 16 SEER and 12.5 EER, the PGR5 packaged units are Energy Star qualified.

Warranty information: Ten-year limited warranty on heat exchanger; five-year limited warranty on compressor; one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoTempstar.com.

eProduct 208

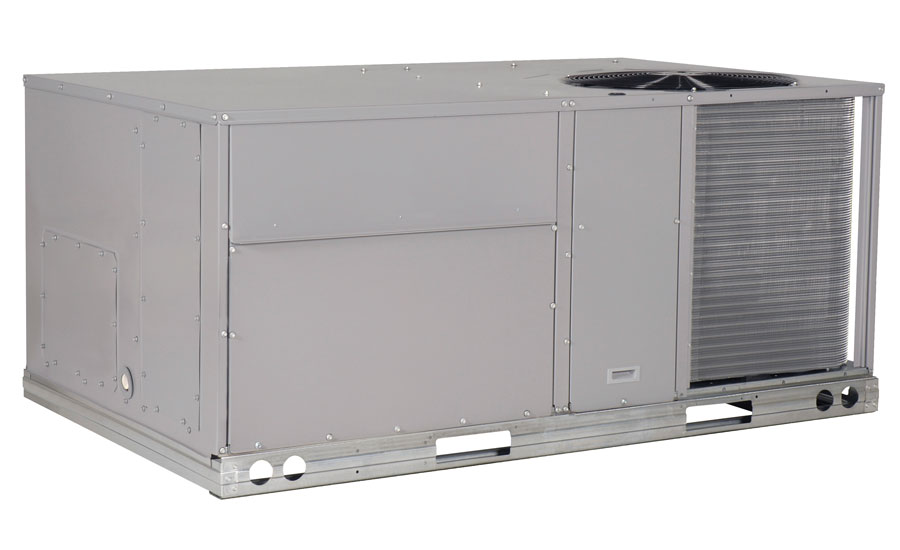

Model: RHH 036-072 packaged heat pump

Footprint (in inches): 74 to 88 (length) by 47 to 60 (width) by 33 to 41 (height)

Serviceability features: Access panels with easy-grip handles provide easy access to the blower, blower motor, control box, and compressors. The no-strip screw feature guides screws into position while preventing the screw from stripping the unit’s metal. The terminal board facilitates safety circuit troubleshooting. The unit also features a simplified control box arrangement.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; and submittal data sheets. Additional product information is posted online at www.GoTempstar.com.

Noise-reduction features: The fully insulated cabinet reduces noise.

IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory available for field installation provides demand-controlled ventilation capability (DCV).

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: Energy Star-qualified units are field convertible for vertical or horizontal airflow duct configuration and include high- and low-pressure switches. The scroll compressor has an internal line-break for overload protection. Factory-installed options include a high-static indoor fan and economizers.

Warranty information: Five-year limited warranty on compressor and one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoTempstar.com.

eProduct 209



Trane

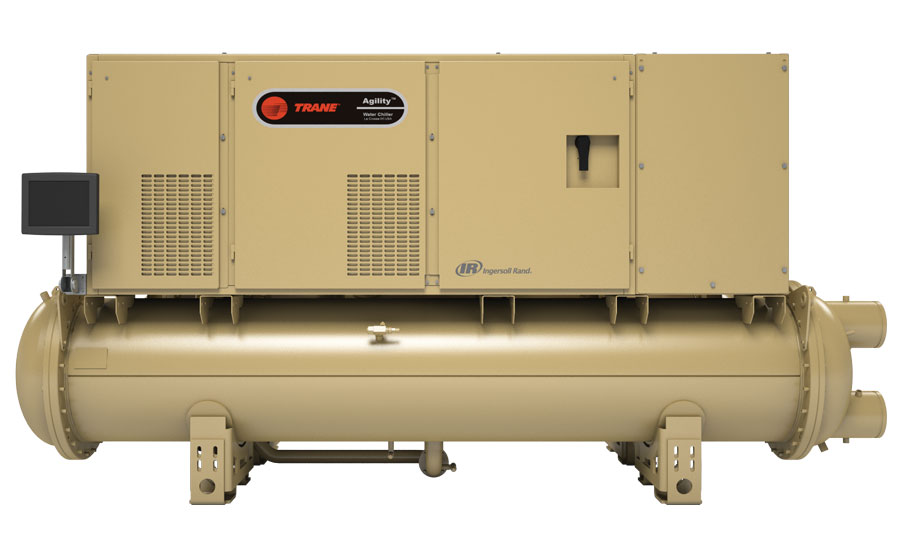

Model: Agility™ centrifugal chiller

Footprint (in inches): 157 (with water boxes) (length) by 71 (width) by 76 (height)

Serviceability features: This chiller’s compact size allows easy access to components for technicians. Integrated, secure remote connectivity with the Intelligent Services enables 24/7/365 system monitoring analytics for predictive maintenance and performance optimization for improved energy efficiency, higher reliability, and reduced operating costs.

Technical support: Whether installing, maintaining, or upgrading systems, Trane has a highly skilled network of technicians who provide the industry expertise needed for an entire life cycle of any building.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; owner’s manual; and submittal data sheets.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: BACnet, LonTalk, and Modbus compatible.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The Agility chiller can accommodate customers who are retrofitting existing space-limited commercial buildings for efficiency and sustainability. Its compact, bolt-together design fits through a double-door (72-by-80 inches) with no disassembly, and only minor disassembly into two sections is required to fit through a single-door (36 inches).

Warranty information: Up to 10-year parts, labor, and refrigerant extended warranty. Backed and fulfilled 100 percent by Trane, not a third party.

Special installation requirements: The chiller design is optimized to fit within existing infrastructures and includes features, like an evaporator design that is optimized for refrigerant flow; limited charge, which maximizes performance; and a variable-speed drive with multiple 60 Hz voltage offerings (460/480V, 575/600V, 208).

Contact: Trane, 651-407-4086; trane.com/commercial.

eProduct 210



Unico

Model: iSeries outdoor heat pump inverter unit with field programmer/logger (FPL)

Footprint (in inches): 47 (length) by 16 (width) by 42 (height)

Serviceability features: The multi-split units range from 1 to 3.5 ton.

Technical support: Available 7 a.m. to 5 p.m. Central time, Monday to Friday at 800-527-0896.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; and specification sheets.

Noise-reduction features: The outdoor unit has sound levels of 40 dB, and the indoor ducted units are lined with closed-cell insulation. Supply tubing is also lined with sound-deadening insulation. The ductless units operate at 23 dB.

IAQ equipment supported: Indoor units can be zoned and work well with add-on humidifiers. Many applications utilize enhanced filtration up to MERV 13.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The system’s multi-split capability means one outdoor unit can support several indoor units (ducted, ductless, or a combination). The field programmer/logger (FPL) is a programming/data logging tool for use with Unico’s iSeries line of variable-speed, multi-split heat pumps that enables contractors to quickly upgrade firmware without laptops on job sites and allows for long-term logging of system operation (up to 30 days). The FPL automatically updates the firmware and software of the iSeries and provides a full diagnosis of the system. The iSeries can operate successfully down to minus 25°F.

Warranty information: Standard one-year parts warranty. A 15-year warranty is included if the system is installed by a Unico preferred contractor.

Special installation requirements: Because of the various options available in designing a Unico system, each installation is unique. Contractors and installers should contact their local representative or call 800-527-0896.

Contact: Unico Inc., 800-527-0896; www.unicosystem.com.

eProduct 211



The Whalen Company

Model: Inteli-line® vertical stack fan coil with slide-out chassis

Footprint (in inches): 28 (length) by 16 (width) by 88 (height)

Serviceability features: The chassis slides out easily for removal or to gain access to the valve package, which reduces commissioning time, provides easier access to the drain pan and internal components, and allows for easier maintenance with minimal tenant disruption.

Technical support: Available 8:30 a.m. to 5 p.m. Eastern time, Monday to Friday at 443-258-2800.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; and specification sheets.

Noise-reduction features: Flush-mounted return air panels are lined with insulation to help attenuate sound from the fan assembly. Vibration isolation pads are attached to the bottom of the cabinet to dampen vibration from the fan motor.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The slide-out chassis can be shipped separately from the cabinet to reduce the risk of installation damage and to keep the coil clean during construction. With a small footprint, Inteli-line customization capabilities include cabinet height, riser locations, and handing and discharge arrangements and sizes.

Warranty information: The fan coil carries a two-year warranty, and the heat pump carries a 15-month warranty.

Special installation requirements: Manufacturer did not specify.

Contact: The Whalen Co., 410-822-9200; www.whalencompany.com.

eProduct 212



YORK

Model: Direct Fit™ high-efficiency rooftop units

Footprint (in inches): 74 to 87 (length) by 49 to 62 (width) by 41 to 49 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. Status, alerts, and reports through a BAS are enabled by Verasys™: a simple controls and zoning solution that streamlines BAS integration with configurable, self-recognizing controllers without the need for additional tools.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration.

IAQ equipment supported: The unit offers fresh air and relief damper options and three static drive options for airflow versatility up to 2-inch external static pressure (ESP). Units ship with MERV 4 throwaway filters, but MERV 8 and MERV 13 filters can be easily added to meet LEED requirements. The blower section includes dual-density insulation for IAQ.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The Energy Star-qualified Direct Fit units speed up replacement by fitting on preexisting competitive curbs without the need for transition adapters. Available configurations include cooling, two-stage gas heating, or electric heat options. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For BAS connectivity, the optional Verasys controls and zoning system enables BAS networking and streamlines integration of HVACR equipment, zoning, and controls.

Warranty information: Ten-year heat exchanger limited warranty, five-year compressor limited warranty, and one-year parts limited warranty.

Special installation requirements: Two heights and footprints can be selected to fit competitive curbs. Heating, fan, and filter options can be selected to match requirements.

Contact: Johnson Controls Inc., 405-419-6557; www.york.com.

eProduct 213



Model: Predator® YC/YD 090-300 split system air conditioners

Footprint (in inches): 32 by 59 (length) by 59 to 64 (width) by 45 to 50 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. The optional Verasys BAS accommodates single zone, changeover bypass, and variable air volume (VAV) zoning systems along with control of fans, lighting, third party HVACR, and others. Verasys allows bundling of both HVAC and building automation.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration, scroll compressors are mounted on rubber isolators to reduce transmission of vibration, and vertical discharge condenser fans direct sound up and away from surrounding structures.

IAQ equipment supported: Both 2- and 4- filters can be used in the filter rack.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Meeting EPACT 2005 and ASHRAE 90.1-2013 efficiency standards, the Predator split system air conditioners provide a robust but lightweight design that accommodates outdoor locations and rooftops. The unit is available in two-pipe and four-pipe configurations. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For enhanced efficiency, optional IntelliSpeed™ supply fan control incorporates a variable-frequency drive (VFD) for variable air volume (VAV) applications.

Warranty information: Five-year compressor limited warranty and one-year parts limited warranty.

Special installation requirements: None.

Contact: Johnson Controls Inc., 405-419-6557; www.york.com.

eProduct 214
