Carrier

Model: AquaForce® 30XV air-cooled variable-speed chiller

Footprint (in inches): 208 to 594 (length) by 88 (width) by 99 (height)

Serviceability features: This unit features easy access to each of the main components.

Technical support: Manufacturer did not specify.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: The AquaEdge 30XV has two means of sound reduction: hardware and software. The hardware portion consists of compressor enclosure and external mufflers. Software is used to limit the maximum compressor and fan frequencies to reduce sound levels even further.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Manufacturer did not specify.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The AquaEdge 30XV features tiered efficiency; low sound operation; ease of installation and serviceability; a fully air-cooled variable-frequency drive (VFD) system without the need for any secondary cooling system; a variety of condenser coil types available; optimization to enable lower sound or maximum efficiency; and software to determine chiller capacity and efficiency under restricted air conditions.

Warranty information: The standard warranty is 12 months after startup or 18 months from shipment, whichever occurs first. Extended warranty (to 10 years) for the whole unit is available.

Special installation requirements: Manufacturer did not specify.

Contact: Carrier Corp., 1-800-CARRIER (800-227-7437); www.carrier.com/commercial.

eProduct 169



Model: WeatherExpert 48/50LC — VAV packaged rooftop unit

Footprint (in inches): 88 to 158 inches (length) by 59 to 86 inches (width) by 49 to 57 inches (height)

Serviceability features: The large access panels feature easy-grip handles. The innovative, easy starting, no-strip screw features are located on unit access panels and the toolless filter access door. Units have a corrosion-resistant, internally sloped, self-draining condensate pan.

Technical support: Available at 800-946-2930 or at www.carrier.com/commercial. Support is also provided through the nationwide distribution network with on-site expert technical advisory staff, and commercial replacement experts training is available through Carrier University.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: This unit features a fully insulated cabinet, isolated scroll compressors, prop condenser fans, and rigid base rails. Indoor motor speed is controlled by a variable-frequency drive (VFD) to ensure fan operates at system optimized speed. It also has speed ramp-up capability.

IAQ equipment supported: Factory-furnished air filters are standard with economizer and optional for CO2 sensing capabilities. The supply air temperature sensor provides optimum comfort to the remote multi-zone terminals.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: With an IEER up to 21, this unit provides multi-zone variable air volume (VAV) operation down to 6-ton size models in cooling only and cooling with gas heat or electric heat. It also provides plug-and-play integration with i-Vu open terminal controllers for better linkage and system commissioning. The unit uses a supply air temperature sensor and duct static sensor, which are factory furnished.

Warranty information: Ten-year parts warranty on aluminum gas heat exchanger, 15-year warranty on stainless steel gas heat exchanger option. Five-year parts only warranty on compressors and electric heat, and one-year on all other parts. Optional extended protection programs are available.

Special installation requirements: Units require the use of Carrier zone terminal controls to provide comfort control and ease of system commissioning.

Contact: Carrier, 1-800-CARRIER (800-227-7437); www.carrier.com/commercial.

eProduct 170



Champion

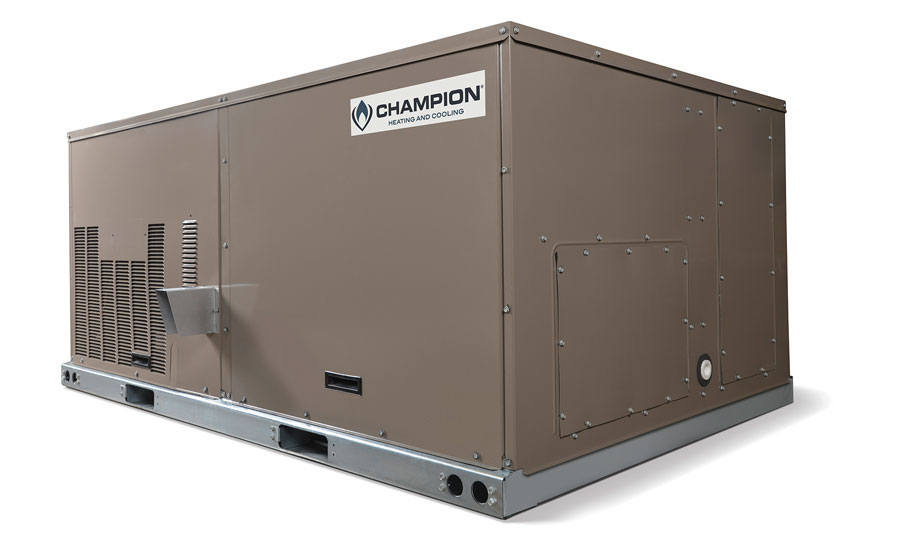

Model: Direct Replacement high-efficiency rooftop units

Footprint (in inches): 74 to 87 (length) by 49 to 62 (width) by 41 to 49 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. Status, alerts, and reports through a BAS are enabled by Verasys™: a simple controls and zoning solution that streamlines BAS integration with configurable, self-recognizing controllers without the need for additional tools.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration.

IAQ equipment supported: The unit offers fresh air and relief damper options and three static drive options for airflow versatility up to 2-inch external static pressure (ESP). Units ship with MERV 4 throwaway filters, but MERV 8 and MERV 13 filters can be easily added to meet LEED requirements. The blower section includes dual-density insulation for IAQ.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These Energy Star-qualified units speed up replacement by fitting on pre-existing competitive curbs without the need for a transition adapter. Available configurations include cooling, two-stage gas heating, or electric heat options. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For BAS connectivity, the optional Verasys controls and zoning system enable BAS networking and streamline integration of HVACR equipment, zoning, and controls.

Warranty information: Ten-year heat exchanger limited warranty, five-year compressor limited warranty, and one-year parts limited warranty.

Special installation requirements: Two heights and footprints are available to fit competitive curbs. Heating, fan, and filter options can be selected to match requirements.

Contact: Johnson Controls Inc., 405-419-6557; www.championhomecomfort.com.

eProduct 171



Model: YH Series split system air conditioner

Footprint (in inches): 32 to 59 (length) by 59 to 64 (width) by 45 to 50 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. The optional Verasys BAS accommodates single zone, changeover bypass, and variable air volume (VAV) zoning systems, along with control of fans, lighting, third-party HVACR, and others. Verasys allows bundling of both HVAC and building automation.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration, scroll compressors are mounted on rubber isolators to reduce transmission of vibration, and vertical discharge condenser fans direct sound up and away from surrounding structures.

IAQ equipment supported: Both 2- and 4-inch filters can be used in filter rack.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Meeting EPACT 2005 and ASHRAE 90.1-2013 efficiency standards, these split system air conditioners provide a robust but lightweight design that accommodates outdoor locations and rooftops. Units are available in two- and four-pipe configurations. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For enhanced efficiency, optional IntelliSpeed™ supply fan control incorporates variable-frequency drive (VFD) for variable air volume (VAV) applications.

Warranty information: Five-year compressor limited warranty and one-year parts limited warranty.

Special installation requirements: None.

Contact: Johnson Controls Inc., 405-419-6557; www.championhomecomfort.com.

eProduct 172



Coleman

Model: Outfitter™ YH Series split system air conditioner

Footprint (in inches): 32 to 59 (length) by 59 to 64 (width) by 45 to 50 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. The onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. The optional Verasys BAS accommodates single zone, changeover bypass, and variable air volume (VAV) zoning systems, along with control of fans, lighting, third-party HVACR, and others. Verasys allows bundling of both HVAC and building automation.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration, scroll compressors are mounted on rubber isolators to reduce transmission of vibration, and vertical discharge condenser fans direct sound up and away from surrounding structures.

IAQ equipment supported: Both 2- and 4-inch filters can be used in filter rack.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: Meeting EPACT 2005 and ASHRAE 90.1-2013 efficiency standards, these split system air conditioners provide a robust but lightweight design that accommodates outdoor locations and rooftops. Units are available in two- and four-pipe configurations. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For enhanced efficiency, optional IntelliSpeed supply fan control incorporates a variable-frequency drive (VFD) for variable air volume (VAV) applications.

Warranty information: Five-year compressor limited warranty and one-year parts limited warranty.

Special installation requirements: None.

Contact: Johnson Controls Inc., 405-419-6557; www.colemanac.com.

eProduct 173

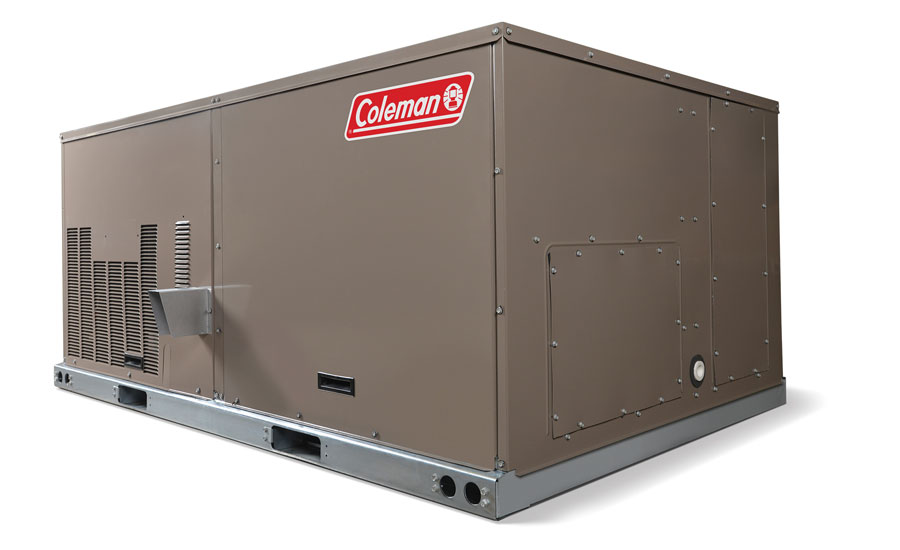

Model: Peak™ high-efficiency rooftop units

Footprint (in inches): 74 to 87 (length) by 49 to 62 (width) by 41 to 49 (height)

Serviceability features: The Smart Equipment digital control system simplifies system setup, optimization, and maintenance. Real-time reporting and performance alerts are viewable via the web. An onboard USB port allows for uploading or downloading software. The Fault Detection and Diagnostics (FDD) system is optional. Status, alerts, and reports through a BAS are enabled by Verasys™: a simple controls and zoning solution that streamlines BAS integration with configurable, self-recognizing controllers without the need for additional tools.

Technical support: Available for certified contractors from 8 a.m. to 5 p.m. Central time, Monday to Friday at 877-874-7378. Technical support is also available through the distributor from whom the product was purchased. Technical information is available on UPGnet, including product-specific, self-directed training.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Indoor and outdoor fans are dynamically balanced for low vibration.

IAQ equipment supported: Units offer fresh air and relief damper options and three static drive options for airflow versatility up to 2-inch external static pressure (ESP). Units ship with MERV 4 throwaway filters, but MERV 8 and MERV 13 filters can be easily added to meet LEED requirements. The blower section includes dual-density insulation for IAQ.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: These Energy Star-qualified units speed up replacement by fitting on pre-existing competitive curbs without the need for a transition adapter. Available configurations include cooling, two-stage gas heating, or electric heat options. Smart Equipment digital controls simplify installation and troubleshooting, plus data is accessible over a Wi-Fi connection or mobile web browser. For BAS connectivity, the optional Verasys controls and zoning system enables BAS networking and streamlines integration of HVACR equipment, zoning, and controls.

Warranty information: Ten-year heat exchanger limited warranty, five-year compressor limited warranty, and one-year parts limited warranty.

Special installation requirements: Two heights and footprints can be selected to fit competitive curbs. Heating, fan, and filter options can be selected to match requirements.

Contact: Johnson Controls Inc., 405-419-6557; www.colemanac.com.

eProduct 174



Comfortmaker

Model: CHS 072-121 split system heat pump

Footprint (in inches): 42 to 50 (length) by 59 (width) by 46 (height)

Serviceability features: The unit offers simple safety circuit troubleshooting with an easy-access terminal board and a simplified control box arrangement. The Comfort Alert™ diagnostic board includes an LED screen with fault code, fault code retention logic, phase protection, built-in time guard anti-short cycle, and low-volt compressor contactor protector. High- and low-pressure switches are included on the unit.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; and submittal data sheets. Additional product information is posted online at www.GoComfortmaker.com.

Noise-reduction features: The compressor includes overload protection and vibration isolation for quiet operation.

IAQ equipment supported: As part of an installed system, this air conditioner is compatible with a wide range of IAQ products, including filters, humidifiers, UV lights, and electronic air cleaners (EACs). The unit includes a factory-installed outdoor air temperature sensor. Optional CO2 sensors can be used in conjunction with a field-installed economizer on the indoor fan coil unit to help meet IAQ requirements.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: The unit features single-stage cooling with the fully hermetic scroll compressor, a crankcase heater, and suction line accumulators. For easy transport, it has a full perimeter base rail with built-in rigging adapters and fork truck slots. Other features include durable round copper tube aluminum plate fin condenser coils and a galvanized steel cabinet with a pre-painted exterior and a primer-coated interior.

Warranty information: Five-year limited warranty on compressor and one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoComfortmaker.com.

eProduct 175

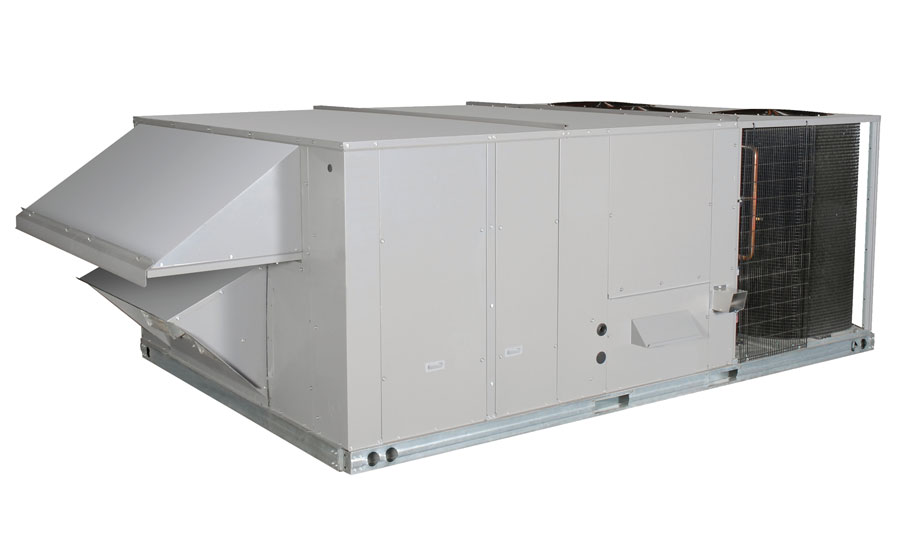

Model: RGH 181-303 packaged gas/electric rooftop unit

Footprint (in inches): 128 to 158 (length) by 86 (width) by 49 to 57 (height)

Serviceability features: The unit features IGC solid-state control for onboard diagnostics with an LED error code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are located in the easy-access master terminal board. Units feature through-the-base utility connections capability, and the access panels have easy-grip handles and a no-strip screw feature.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; and submittal data sheets. Additional product information is posted online at www.GoComfortmaker.com.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: The unit features 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation capability (DCV).

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: These Energy Star-qualified units feature two-stage cooling with independent circuits and controls, dedicated vertical or horizontal airflow duct configuration models, and high- and low-pressure switches. The scroll compressor has internal line-break overload protection. Factory-installed options include a high-static indoor fan, variable-frequency drive (VFD) two-speed fan, a hot gas re-heat system, and economizers.

Warranty information: Fifteen-year limited warranty on optional stainless steel heat exchanger; 10-year limited warranty on aluminized steel heat exchanger; five-year limited warranty on compressor; and one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoComfortmaker.com.

eProduct 176



Daikin Applied

Model: PreciseLine™ BCHD blower coil

Footprint (in inches): Up to 106 (length) by up to 61 (width) by up to 32 (height)

Serviceability features: The fan deck, coil, and valve package all slide in and out of the unit on a specially designed rail system. The factory-installed, fully tested valve package is within the cabinet for added protection and ease of installation. Additionally, the toolless filter access helps shorten and simplify maintenance.

Technical support: Contact a local Daikin Applied service representative for complete startup services with comprehensive maintenance agreements and repair services. Daikin factory service can provide help with operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are available.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; specification sheets; startup instructions; and submittal data sheets.

Noise-reduction features: PreciseLine’s optional discharge plenum is available with a sound attenuation package. With an efficient electronically commutated motor (ECM) fan that runs at approximately 60 percent capacity, sound levels average 30 noise criteria (NC).

IAQ equipment supported: The double-wall, foam injection cabinet construction keeps glass fibers from the insulation out of the airstream. The unit comes with an optional factory-installed mixing box that can introduce outdoor air rates required by ASHRAE 62.2.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The standard double-wall foam construction drives high energy efficiency. The standard direct drive 0 to 10V modulating fan motors keep comfort up and cost down. The modulating electric heat control option adjusts the heater so that it can operate efficiently.

Warranty information: Standard parts warranty up to 18 months from ship date. Extended one-, two-, three-, and four-year (parts only) warranties available.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin Applied, 763-553-5157; www.DaikinApplied.com.

eProduct 177



Daikin Unitary

Model: DVS dedicated outside air system (DOAS)

Footprint (in inches): Manufacturer did not specify.

Serviceability features: Each unit comes standard with electronically commutated (EC) fan motors that provide up to 3 inches of external static pressure (ESP); hinged access panels for easy serviceability; slide-out filter racks; and factory-installed 2-inch MERV 8 filters. Options include an outdoor airflow monitoring station, 115V convenience outlet, and a non-fused disconnect switch. Units can be integrated into the same intelligent Touch Manager (iTM) as the comfort cooling and heating VRV system.

Technical support: Contact local distributor or call 866-342-4546 and select technical option.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Units feature electronically commutated (EC) supply and exhaust fan motors and a double-wall, 1-inch foam, R-7 insulated cabinet.

IAQ equipment supported: This unit provides conditioned outside air for VRV system applications.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This unit is designed for VRV air-cooled heat recovery systems to provide conditioning of 100 percent outside ventilation air. Models with nominal 1,000, 2,000 and 3,000 cfm airflow rates can be configured with pretreatment, cooling, reheat, and heating components. An optional energy recovery wheel section can be added to reduce the mechanical cooling capacity of the system. Auxiliary heat is available in modulating gas heat, silicon controlled rectifier (SCR)-controlled electric heat, or hot water.

Warranty information: Standard one-year unit and parts limited warranty.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 972-512-1903; www.daikinac.com.

eProduct 178



Daikin VRV

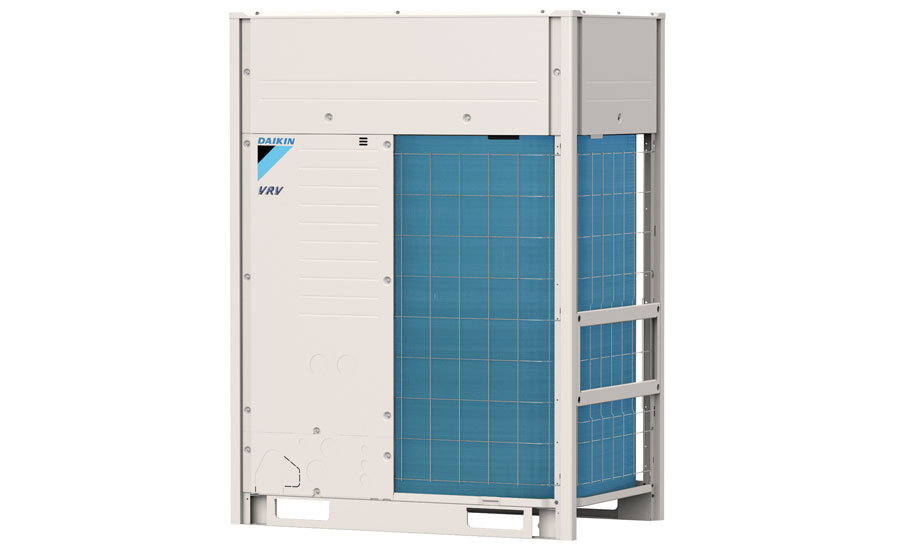

Model: VRV AURORA heat pump and heat recovery unit

Footprint (in inches): Manufacturer did not specify.

Serviceability features: This unit includes an efficient and stable inverter board operation. Refrigerant-cooled inverter technology allows installation without an additional drain pan heater. Other features include auto changeover to backup (auxiliary) heat as standard, variable refrigerant temperature technology to deliver year-round comfort and efficiency, long pipe lengths with up to 295 feet allowable height difference between outdoor and indoor units, continuous heating during defrost and oil return, PE Blue fin coil with 1,000 hours salt spray test, and factory standard coil guards.

Technical support: Contact local distributor or call 866-432-4546.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Standard operating sound levels are minimized with Daikin’s inverter variable-speed swing compressors.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: The VRV AURORA is available in both heat pump and heat recovery, with 230V, 460V, or 575V. Part-load efficiency is optimized using dedicated all-inverter compressors and inverter fan motors. This system offers 100 percent of nominal heating capacity at 0°F (minus 18°C), up to 85 percent of nominal capacity at minus 13°F (minus 25°C), and up to 60 percent capacity at minus 22°F (minus 30°C). It is assembled in the U.S.

Warranty information: Ten-year parts limited warranty and 10-year replacement compressor limited warranty.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 972-512-1903; www.daikinac.com.

eProduct 179

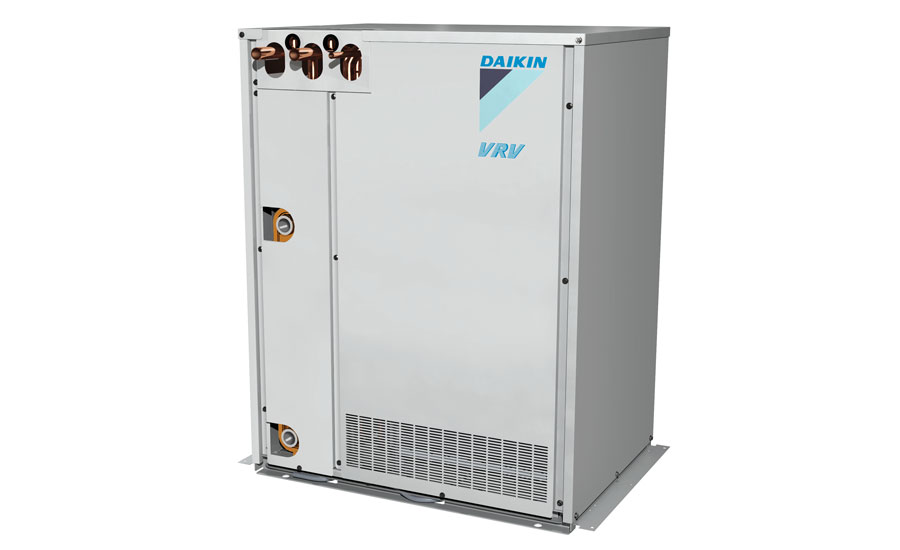

Model: VRV T-Series water-cooled heat pump or heat recovery unit

Footprint (in inches): 22 (length) by 30 (width) by 38 (height)

Serviceability features: These small, lightweight (430 pounds) units are transportable using a dolly and elevators, saving time and labor. The compact size, along with the heat rejection cancellation technology, allows installation in small closet-type spaces without any additional ventilation requirements. The system allows long piping lengths of up to 540 feet and up to 98 feet of height separation between the outdoor unit and indoor units.

Technical support: Contact local distributor or call 866-432-4546.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; owner’s manual; and submittal data sheets.

Noise-reduction features: Manufacturer did not specify.

IAQ equipment supported: Manufacturer did not specify.

Thermostat compatibility: Requires a special thermostat.

Replacement parts compatibility: Some shared parts and some unique parts.

Additional features: This system is engineered for buildings with cooling tower water loops or geothermal applications. Single modules are available in 8-, 10- and 12-ton, and single modules can be manifolded together with up to three units to form one system up to 36 ton. Simultaneous heating and cooling is available with heat recovery configuration. This equipment provides all the attributes of an air-cooled VRV system, including the added flexibility for cold climate applications, low sound levels, advanced comfort control, and zoning.

Warranty information: Ten-year parts limited warranty and 10-year replacement compressor limited warranty.

Special installation requirements: Manufacturer did not specify.

Contact: Daikin North America LLC, 972-512-1903; www.daikinac.com.

eProduct 180



Day & Night

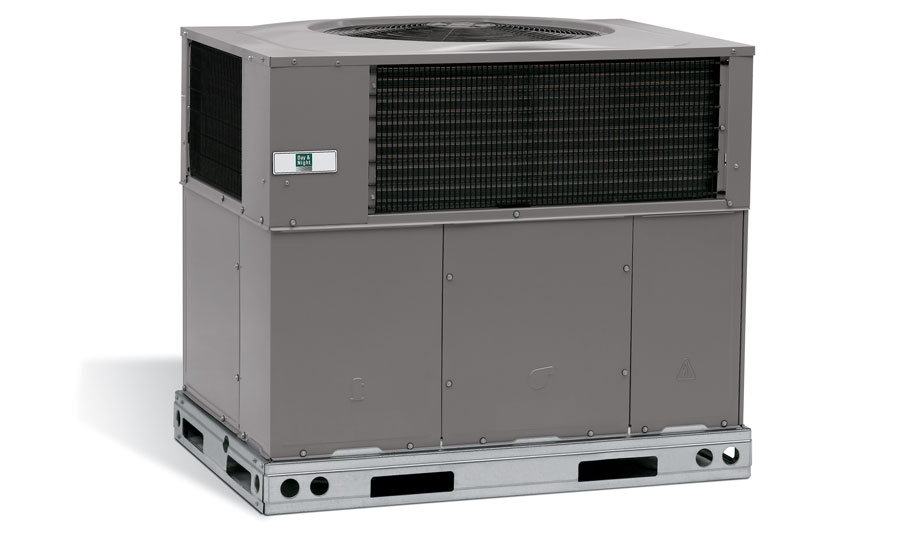

Model: PHR5 packaged heat pump

Footprint (in inches): 47 to 48 (length) by 33 to 44 (width) by 44 to 55 (height)

Serviceability features: This unit installs on the rooftop or ground level and offers easy three-panel access for maintenance and installation. It can also convert easily to down discharge applications.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; and submittal data sheets. Additional product information is posted online at www.GoDayandNight.com.

Noise-reduction features: The outdoor fan is sized and optimized for minimal noise.

IAQ equipment supported: Accessory filter racks support 2-inch filters.

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: This Energy Star-qualified unit achieves up to 15.5 SEER/12.5 EER electric cooling and up to 8.5 HSPF electric heating. The unit features field convertible airflow, high- and low-pressure switches for added compressor reliability, and a high-efficiency electronically commutated (EC) indoor blower motor. Dehumidification mode (airflow reduction) is available on all models.

Warranty information: Five-year limited warranty on compressor and one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: Roof curbs available as field-installed accessories.

Contact: International Comfort Products, 317-847-6930; www.GoDayandNight.com.

eProduct 181

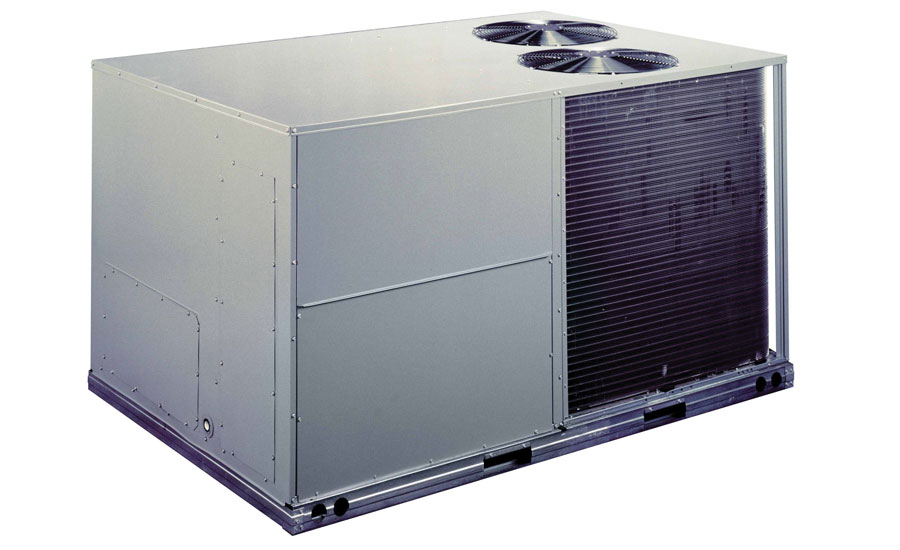

Model: RGH 090-150 packaged gas/electric rooftop unit

Footprint (in inches): 88 to 116 (length) by 60 to 63 (width) by 49 to 57 (height)

Serviceability features: This unit features an intelligent gyro compass (IGC) solid-state control for onboard diagnostics with LED error code designation, burner control logic, and energy-saving indoor fan motor delay. All connections and troubleshooting points are located in the easy-access master terminal board. Units feature through-the-base utility connections capability, and the access panels have easy-grip handles and a no-strip screw feature.

Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors provide technical assistance and troubleshooting at the local level. ICP technical training is available at field schools held at participating distributor locations.

Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; parts list; troubleshooting guide; specification sheets; startup instructions; and submittal data sheets. Additional product information is posted online at www.GoDayandNight.com.

Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.

IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation capability (DCV).

Thermostat compatibility: Compatible with most thermostats.

Replacement parts compatibility: Shares replacement parts with other models.

Additional features: These Energy Star-qualified units feature field convertible airflow, high- and low-pressure switches, and dual scroll compressors with internal line-break overload protection. Factory-installed options include high, medium, and low heat options and a medium- and high-static indoor fan option. Liquid propane and high altitude kit options available.

Warranty information: Fifteen-year limited warranty on optional stainless steel heat exchanger; 10-year limited warranty on aluminized steel heat exchanger; five-year limited warranty on compressor; one-year limited warranty on all other parts. See warranty certificate for complete details and restrictions.

Special installation requirements: None.

Contact: International Comfort Products, 317-847-6930; www.GoDayandNight.com.

eProduct 182
