Company: RenewAire

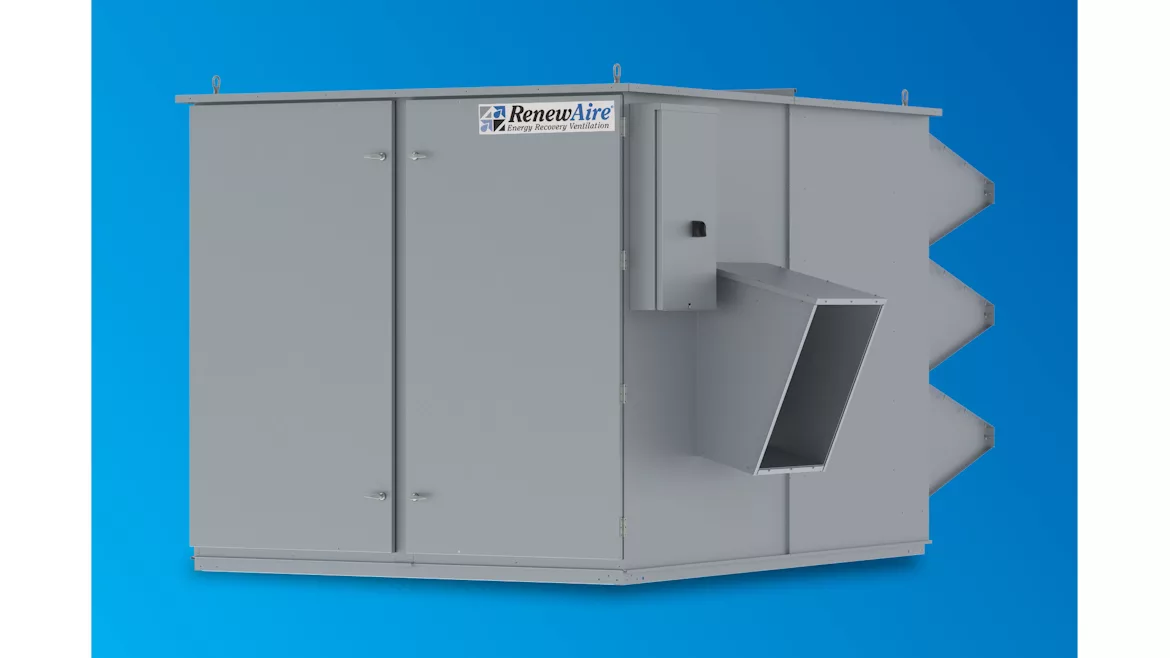

Product: HE7X

Description: The HE7X is a commercial energy recovery ventilator (ERV) that features seven static plate enthalpy cores, and is available for either rooftop or indoor applications. The HE7X’s 1,750 to 7,700 CFM offers an additional airflow range between the HE Series’ HE6X (1,500 to 6,600 CFM) and the HE8X (2,000 to 8,800 CFM). The new model enables engineers to reach an optimum efficiency/airflow balance versus oversizing equipment for applications requiring between 6,600 and 7,700 CFM, which potentially reduces a project’s upfront capital equipment cost and lifetime energy usage. Like other HE Series ERVs, the HE7X is a self-contained, stand-alone ERV that uses RenewAire’s AHRI 1060-certified static plate enthalpy cores. These cores transfer exhaust air energy and humidity to efficiently condition outdoor air in compliance with ASHRAE Standard 62.1 and Standard 90.1. The HE7X ERV can also operate in conjunction with ventilation distribution systems of centralized HVAC units. It’s ideal for commercial high rises, institutional buildings, and other facilities requiring fresh outdoor air at a low energy cost. The HE7X comes standard with a totally enclosed fan-cooled (TEFC) motor ranging from 3, 5, 7, or 10 hp. The horsepower flexibility allows upgrades to optional MERV 13 filtration from the HE7X’s standard MERV 8 filters while maintaining system external static pressure (ESP). Other airflow options include an IE5+ ultra-premium efficiency motor and variable frequency drive (VFD) upgrades.

Contact: (800) 627-4499; www.renewaire.com
