Company: JB Industries

Product: A32525SV

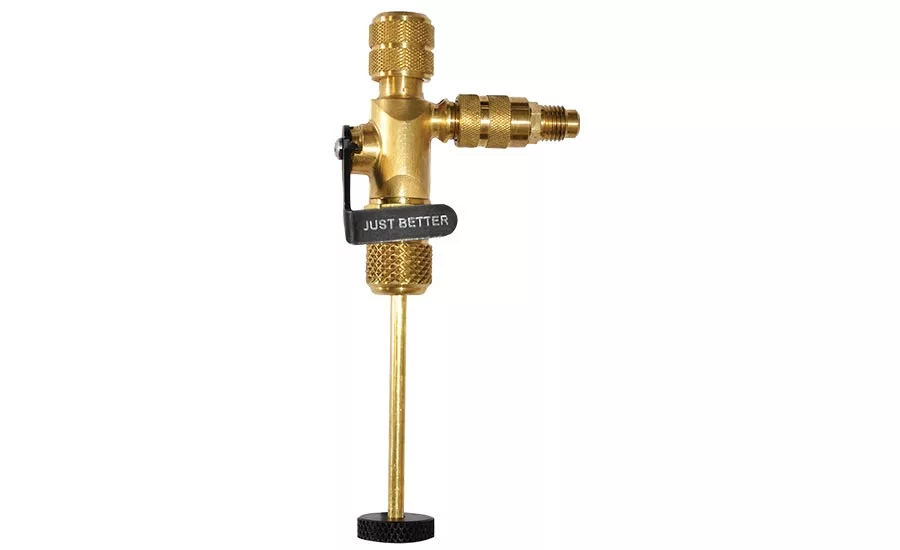

Description: The A32525SV is a valve core removal tool that utilizes an additional slide valve on the side port to easily attach and isolate a micron or vacuum gauge. This new tool swaps out damaged valve cores under pressurized HVACR systems. It also removes valve cores for faster evacuation. The slide valve on the side port of the A32525SV allows for the safe removal of the micron gauge without letting air inside the system, preventing the risk of refrigerant damaging the micron gauge. The main ball valve handle was switched from a traditional 90° turn to a handle that is now actuated in-line with the valve. This allows the HVACR technician to open and close the valve in tight areas with a single finger. This new design is made of solid brass construction with the tip machined from A2 tool steel, extending the product for life. A series of o-rings help stay sealed during evacuation. The Valve Core Removal Tool with Slide Valve Side Port is vacuum rated and is also offered in style number A32525ST that automatically sets torque to 3-5 inch-pounds.

Contact: 800-323-0811,, eProduct 183
