Company: FläktGroup SEMCO

Product: Pinnacle II

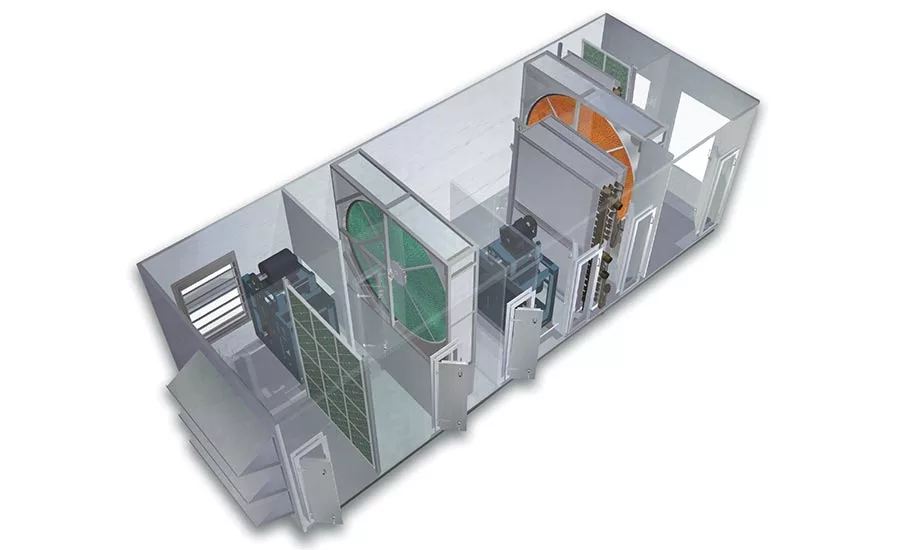

Description: This product expands the Pinnacle Series dehumidification capabilities and optimizes temperature control. It features an integrated DX coil loop with a variable-speed compressor. The total energy wheel featured is used to precondition fresh air using the exhausted building air. The coils and passive dehumidification wheel then work in concert to further treat this fresh air to produce room temperature air at a much reduced humidity level. The key to this system is the passive dehumidification wheel. It is optimized to remove moisture from a saturated air stream without an active regeneration source. The unit responds to various combinations of temperature and humidity by modulating the passive dehumidification wheel and the cooling coil. It then provides a constant stream of optimally conditioned ventilation air while exhausting the building’s stale, polluted air. It does so in a highly efficient manner, providing substantial operating savings.

Contact: 573-443-1481,, eProduct 182
