Novotechnik U.S.: Noncontact Sensors
Company: Novotechnik U.S.

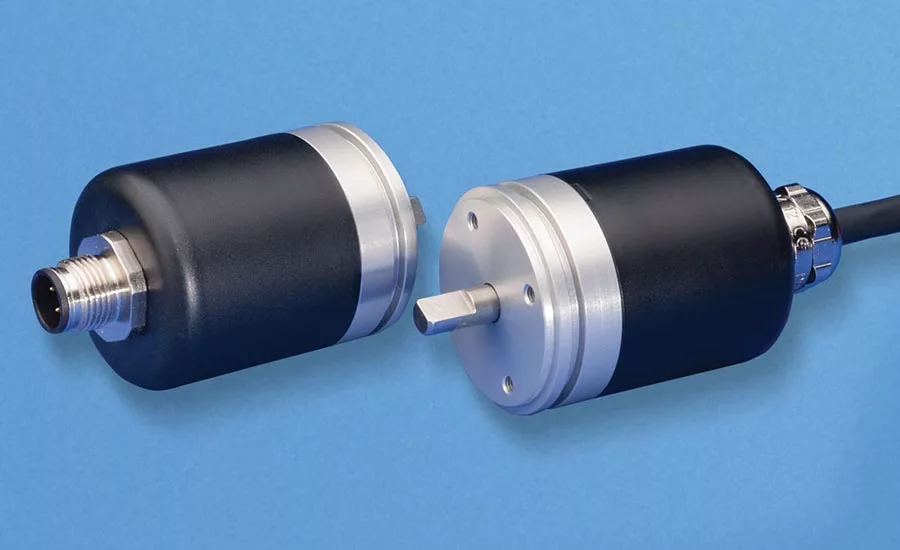

Product: RSB 3600 Series
Description: These noncontact sensors have a galvanized steel housing with a stainless steel shaft and feature up to 100 N working shaft load for the HD version. They are sealed up to IP 69K, depending on version. The enhanced giant magnetic resistance (EGMR) sensors retain their angular position even when power is removed, and they retain that angle information for years without power, eliminating the need for batteries. Operating speed is up to 12,000 rpm. All models have an operating temperature range of minus 30° to 85°C and 0 to 98 percent rh, noncondensing. They can withstand shock to 50 g and vibration to 20 g. The series is available in connector or cable versions as well as 5- and 24-V supply models.
Contact: 508-485-2244, www.novotechnik.com, eProduct 182
