“I am very excited that we have a tremendously talented and enormously experienced executive like Mike Crawford to quarterback the Johnson Controls Hall of Fame Village team,” said David Baker, Pro Football Hall of Fame president and CEO. “He has a long track record of starting, leading, and rebuilding organizations and is noted for his expertise in strategic planning, new business development, operation management, and proven negotiation skills. He will make Johnson Controls Hall of Fame Village a world-class and state-of-the-art destination center.”

STEADY PROGRESS

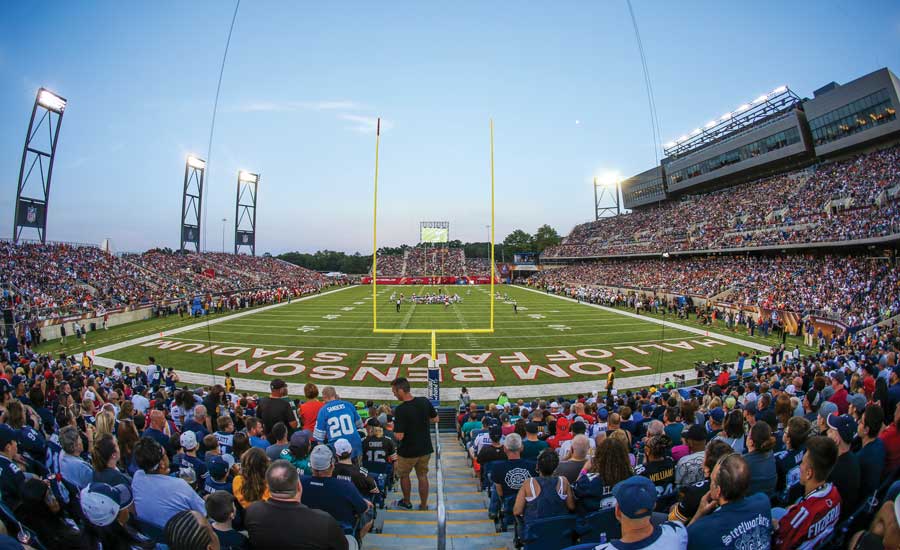

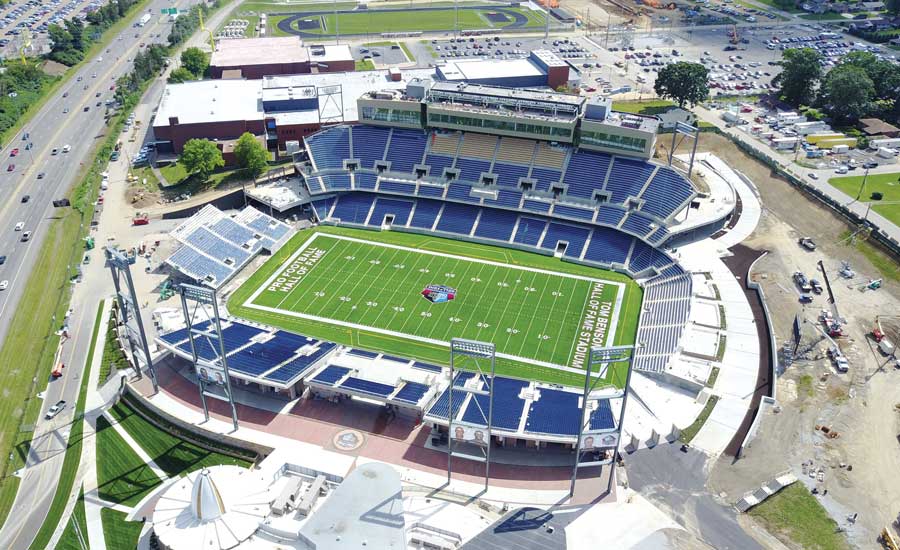

Progress on the project includes approximately $250 million of construction that has resulted in the Tom Benson Hall of Fame Stadium, which was designed both as a sports stadium and a concert venue.

“We began by listening to the outcomes the Hall of Fame desired — an enhanced fan experience, an optimized and energy-efficient building, low impact on the environment, and the capability of creating new revenue-generating opportunities,” said Fraser Engerman, director of Media Relations, Johnson Controls. “The stadium was designed with those outcomes in mind and with foundational, future-ready technologies that will provide an enhanced fan experience everywhere in the Johnson Controls Hall of Fame Village.”

According to him, the company took the project on in an effort to demonstrate its technology solutions for making cities smarter, safer, more secure, and more comfortable in a real-world setting.

“This venue provides us with a working showcase and lab,” said Engerman. “The solutions we provide at the Johnson Controls Hall of Fame Village are exactly like those that are helping customers from Canton, Ohio, to cities around the world.”

CONNECTING THE SMART CITY

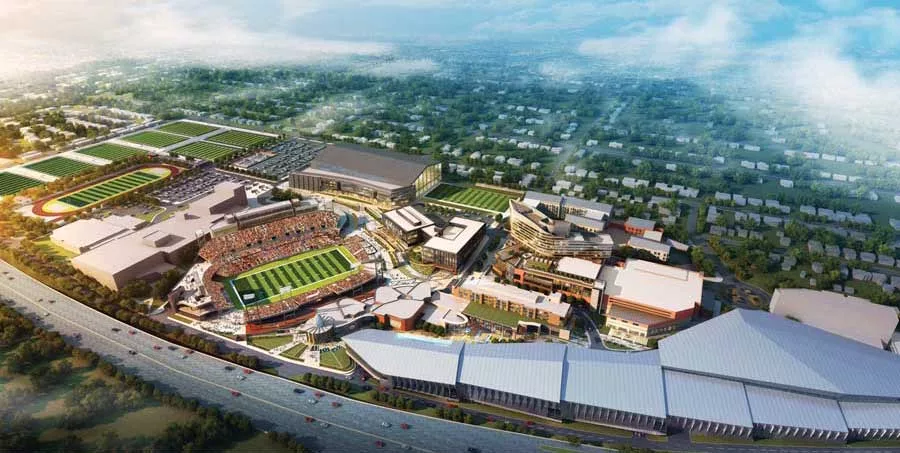

There are 10 components in the Smart City (see sidebar), and Johnson Controls is providing the building management systems, HVAC equipment, fire and security systems, and other technologies. According to the company, the result will be significant greenhouse gas emissions reductions and energy efficiency improvements.

“More than 2,000 football fields (213,333 yards) of fiber optic and copper cabling have been installed for current and future connectivity for smart systems and technologies deployed throughout the project,” said Engerman. “This is roughly 10 to 15 percent of the total cabling that will be laid for the entire Johnson Controls Hall of Fame Village.”

The features of this technology are as follows.

• The network infrastructure enables the Johnson Controls Hall of Fame Village to run effectively as development continues. The wide-band, multimode fiber technology creates a network backbone that accommodates innovative new technologies to maximize both fan experience and building performance.
• High-density Wi-Fi, powered by Extreme Networks, allows simultaneous access for 23,000 fans.
• Although the Johnson Controls Hall of Fame Village is still in development, the foundational security elements for the stadium are installed and operational.
• Real-time feed to the command and control center.
• Addressable alarms, card access, stadium-wide mass notification, and life safety systems.
• 155 high-definition IP surveillance cameras are strategically placed throughout the venue, providing a real-time security feed to the command and control center, ensuring the security of visitors and the administrative area of the stadium.
• Fully digital fire systems, security systems, and other connected life safety technologies ensure a world-class stadium environment for fans today and accommodates evolving security technology for the future.
• IP-enabled Metasys® building automation system connects the HVAC, lighting, security, and protection systems — allowing the Hall of Fame to make smarter operational decisions and ensuring its investment is future-ready while enhancing fans’ comfort and safety.

“The Metasys building automation system will provide energy management data, making the Johnson Controls Hall of Fame Village a truly converged smart city,” said Engerman. “Utilizing various data from the HVAC equipment, meter data, utility information, and weather, the building efficiency platform offers a variety of applications to help meet energy management and building performance needs.”

BUILDING DESIGN & MANAGEMENT

While constructing the plans for this Smart City, Johnson controls engaged in early collaboration between the owner and the design and constructions teams. Each shared information based on data and made decisions in regard to the findings.

“With deliberate expert attention applied early during the planning phase, pitfalls can be avoided, and the buildings can be designed, delivered, and maintained in a way that achieves the owner’s defined outcome well into the future,” said Engerman. “In this case, Johnson Controls was selected as a single point of responsibility for technologies early in the process. Having someone who can provide critical continuity throughout pre-construction, implementation, installation, and service ensures buildings have the necessary equipment and systems uptime and reliability so that the systems live up to their full potential and support any future innovations while protecting the existing investment.”

To manage the buildings, there will be planned maintenance schedules, and the company will use predictive and diagnostic monitoring. This will allow Johnson Controls to leverage building data to make recommendations for performance improvement.

“We always get excited about the opportunity to deliver outcomes in buildings through technology integration,” said Engerman. “The digitization of our world — both personal and business — is picking up speed, transforming and challenging the construction industry to look beyond the physical infrastructure of a building and instead, look at the purpose and vision for the building in order to drive better outcomes. Just as you build a physical infrastructure to accommodate a future workforce, it’s also essential to install the intelligent infrastructure and bandwidth that will handle future innovation. Not to mention the evolving demands and expectations of a technology savvy staff.”

Publication date: 1/14/2019
