Company: Endress+Hauser

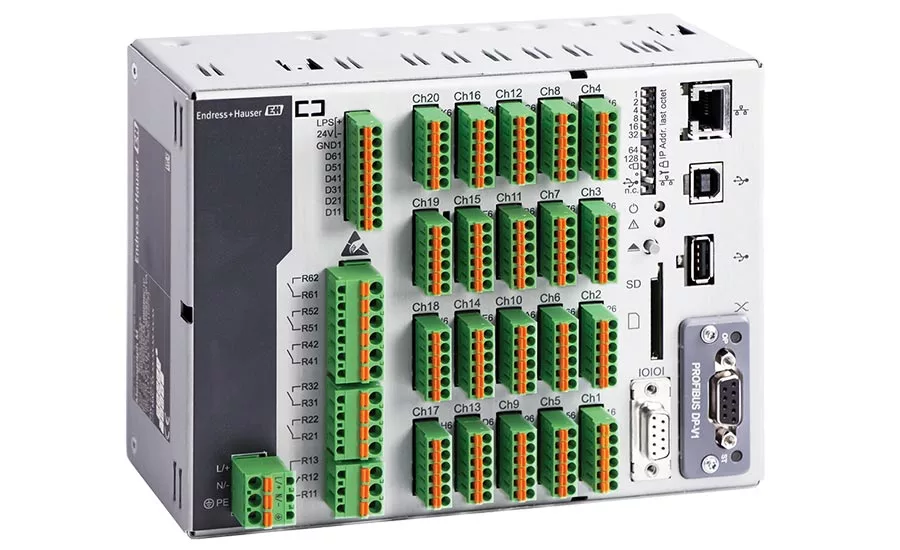

Product: Memograph M RSG45 Advanced Data Manager

Description: Available in a DIN rail version without display, this product is an intelligent remote device with extensive communication capabilities, designed for IoT applications and used as an edge device for getting data to cloud-based servers. It is able to acquire data from up to 20 HART or universal analog input channels and 14 digital inputs, has two analog outputs and up to 12 relay outputs, and makes its data available to IoT systems and all major automation system architectures via multiple communication interfaces and protocols. Interfaces and protocols include 4-20mA HART, Modbus RTU/Modbus TCP/IP, PROFIBUS DP, PROFINET, EtherNet/IP, Ethernet TCP/IP, USB, RS-232C/RS485, and OPC. It communicates with new and existing PLCs, SCADA systems, distributed control systems, historians, and cloud-based data structures. It also has an embedded web server that can be accessed by any web browser via the internet once proper security procedures are followed.

Contact: 888-363-7377;; eProduct 183
