In addition to the product grid, which may be viewed and downloaded here, The NEWS spotlights the industry’s latest commercial heating products in this photo feature. The manufacturers provided us with a brief description of features included with each product. For more information, please contact the manufacturers or their distributors.
Like last year, this year’s Heating Showcase is split into two parts — residential and commercial. The commercial information is published in this issue. The residential/light commercial showcase, which highlighted several recently introduced heat pumps, furnaces, air handlers, and other heating equipment, was featured in the Sept. 12 issue. For more information, visit http://bit.ly/HeatingShowcase.
Arcoaire
Model: RGH060 packaged gas/electric unit
Footprint (in inches): 74 (length) by 47 (width) by 41 (height)
Serviceability features: Features include an IGC solid-state control for on-board diagnostics with an LED error code designation, burner control logic, and an energy-saving indoor-fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. This unit features through-the-base utility connections, and its access panels include easy-grip handles and offer a no-strip-screw feature.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. Technical training is available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.goarcoaire.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This Energy Star-qualified unit features field-convertible airflow, high- and low-pressure switches, single-stage cooling, and two-stage gas heat. Three heat options (high, medium, and low) and a medium- and high-static indoor fan are available. Other market-driven options, such as liquid-propane and high-altitude kits, are available.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized stainless steel heat exchanger, five-year limited compressor, and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.goarcoaire.com.
eProduct 160

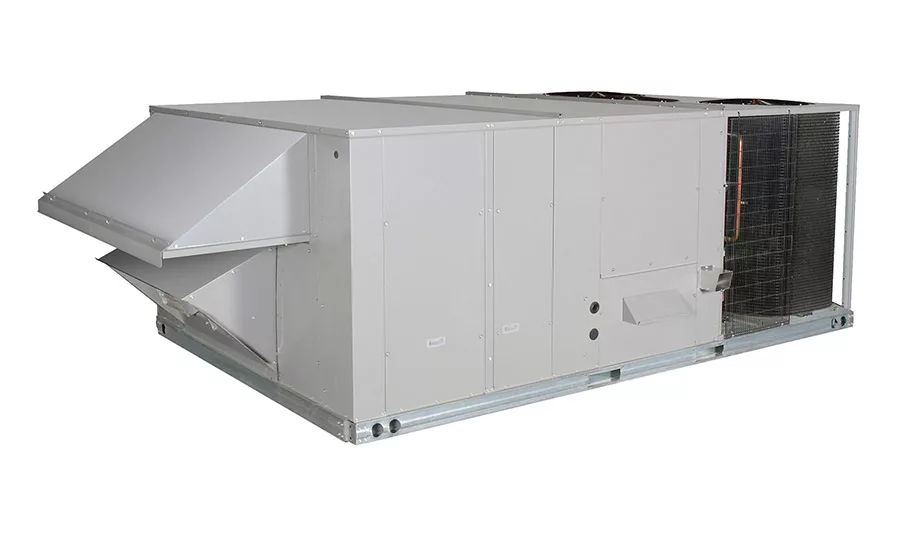

Model: RGS210-336 packaged gas/electric rooftop
Footprint (in inches): 128-158 (length) by 87 (width) by 49-57 (height)
Serviceability features: Units have provisions for through-the-bottom power entry. All connections and troubleshooting points are conveniently located on the master terminal board. Its access panels include easy-grip handles and no-strip screws. Other features include an IGC solid-state control for on-board diagnostics with LED error-code designation, burner control logic, and an energy-saving indoor-fan motor delay.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.goarcoaire.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters, and an optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide outdoor air for demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: The unit is available in dedicated vertical or horizontal airflow duct configuration models. This ASHRAE 90.1-compliant unit features high- and low-pressure switches, and a scroll compressor has internal line-break overload protection. High-, medium-, and low-heat options; stainless steel heat exchangers; and a high-static indoor fan are available.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized heat exchanger, five-year limited compressor, and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.goarcoaire.com.
eProduct 161
Bard

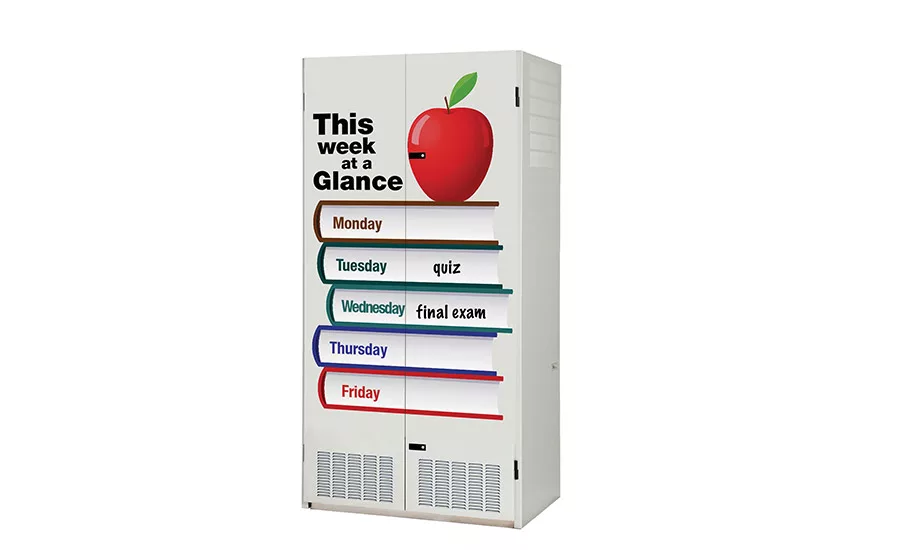

Model: I-TEC heat pump
Footprint (in inches): 31 (length) by 47 (width) by 94 (height)
Serviceability features: The unit is designed for over-the-windowsill installation. A front- and center-control panel provides easy access to components and it includes lockable, removable hinged doors. Its modularized construction simplifies transporting it through doors and elevators. It may be installed in left or right corners with no modifications. Additional features include indoor and outdoor electronically commutated motors (ECMs), high- and low-pressure switches, and non-corrosive drain pans.
Technical support: Support is available through Bard’s local distribution network.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.
Noise-reduction features: Features include a two-stage scroll compressor with a discharge muffler, double-floating-isolation mounting system, and sound-muffling cover. The unit’s eco-friendly, high-performance insulation is made from recycled denim. Acoustical sound accessories can be added for even lower operating sound levels as requirements and budgets dictate.
IAQ equipment supported: Energy recovery ventilator (ERV) and commercial room ventilator options are available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This heat pump is designed for classroom and other similar applications demanding high efficiency and quiet operation. It provides superior IAQ and may be vented above a window sill. The unit is designed to be aesthetically pleasing both inside and outside.
Warranty information: Five-year parts and five-year compressor warranties are available.
Special installation requirements: None
Contact: Bard Mfg. Co. Inc., 419-636-1194; www.bardhvac.com.
eProduct 162

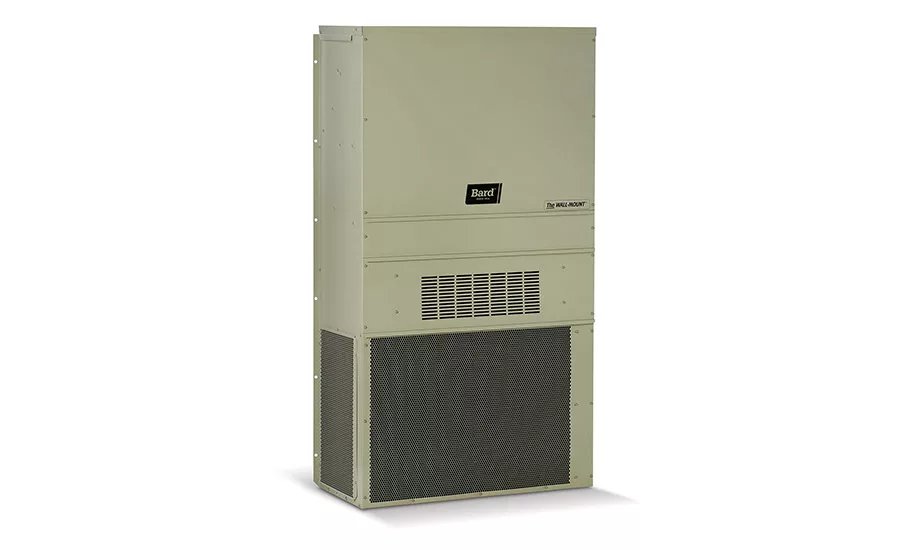

Model: Wall-mount, step capacity, Quiet Climate heat pump
Footprint (in inches): 17-93 (length) by 38-42 (width) by 70-93 (height)
Serviceability features: All service and maintenance is performed outside the building, which consumes no interior floor space. Additional service features include a variable-speed electronically commutated motor (ECM) blower, high- and low-pressure switches, and a compressor time delay. Factory- or field-installed ventilation package options are also available.
Technical support: Support is available through Bard’s local distribution network.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.
Noise-reduction features: Acoustical sound accessories can be added for even lower operating sound levels as requirements and budgets dictate.
IAQ equipment supported: A variety of ventilation options include an energy recovery ventilator, economizer, and commercial room ventilator.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This highly efficient wall-mounted heat pump features R-410A and special sound-reduction technology. It is ideal for new construction, modular applications, school modernization, telecommunication structures, and more.
Warranty information: Five-year parts and five-year compressor warranties come standard.
Special installation requirements: None.
Contact: Bard Mfg. Co. Inc., 419-636-1194; www.bardhvac.com.
eProduct 163
Bosch
Model: Buderus SSB Series stainless steel high-output boilers
Footprint (in inches): 24 (length) by 22 (width) by 61 (height)
Serviceability features: This unit is easy to install, thanks to an automatic control unit for gas-fired appliances with a premix burner and a pneumatic air-gas system. It also includes a factory built-in low-water cutoff (LWCO) and safety temperature high limiter with manual reset. The SSB offers multiple parameters for heating, domestic water heating, and circulator pumping designed for the most common applications.
Technical support: Support is available at 866-642-3198.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and manufacturer’s data reports are available.
Noise-reduction features: Acoustic insulation inside the cabinet reduces sound levels.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: SSB255-512 models are equipped with manual reset high limit and LWCO with test button. SSB512 is equipped with a 75-pound pressure-relief valve and low- and high-gas pressure switches with manual resets. An adapter allows for connections to chlorinated polyvinyl chloride (CPVC); polyvinyl chloride (PVC); polypropylene (PP); PP Flex; stainless AL29-4C; and IPEX type IIA & IIB for single-pipe, two-pipe, and concentric vent.
Warranty information: Ten-year full heat exchanger, five-year parts and labor (residential use), and two-year parts and no labor (commercial use) warranties are available.
Special installation requirements: These boilers offer an automatic control unit for gas-fired appliances with a premix burner and pneumatic air-gas system. It can be connected to a room thermostat, and an outdoor air temperature sensor may be added to the boiler as an outdoor reset control for increased fuel efficiency. The SSB has multiple control parameters for heating, domestic water, and circulator pump applications.
Contact: Bosch Thermotechnology Corp., 603-965-7445; www.boschheatingandcooling.com.
eProduct 164
Bradford White
Model: Brute MagnaTech™, BMGH1600 boiler
Footprint (in inches): 38 (length) by 29 (width) by 80 (height)
Serviceability features: The Brute MagnaTech offers a small footprint, slim vertical design, and removable top section, making it ideal for tight mechanical rooms. A large, easy-to-navigate, color touchscreen display allows for quick setup and diagnostics and enables up to eight units to be controlled in a cascading boiler bank.
Technical support: Support is available 24/7 at 800-334-3393.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: Manufacturer did not specify.
Replacement parts compatibility: The system features some shared parts and some unique parts.
Additional features: This Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified unit operates at 95 percent efficiency or higher. It features a variable-speed pump control, 5:1 modulation, a small footprint, up to 100 feet of vent, and a forward-mounted low-voltage panel that allows for easy wiring and troubleshooting. The low-NOx system exceeds stringent regulations for air quality and allows for lead lag cascading of up to eight units.
Warranty information: Ten-year limited heat exchanger and one-year limited parts warranties are available.
Special installation requirements: The unit's installation and operation manual provides special installation requirements.
Contact: Bradford White Water Heaters; www.bradfordwhite.com.
eProduct 165
Model: Brute™ condensing boiler, BNTH-500
Footprint (in inches): 37 (length) by 24 (width) by 38 (height)
Serviceability features: An integrated touchscreen control system, which comes standard on all Brute 285-850 models, monitors all aspects of boiler operation. It includes several features that can improve the performance and efficiency of the entire heating system, which also allows for easier integration of cascade systems into building automation networks.
Technical support: Support is available 24/7 at 800-334-3393.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: Manufacturer did not specify.
Replacement parts compatibility: Some shared parts and some unique parts.
Additional features: Features include a highly efficient condensing design, thermal efficiency in excess of 95 percent, 5:1 modulation, an integrated touchscreen panel, and a standard direct-spark ignition. This low-NOx system exceeds stringent regulations for air quality, offers zero clearance to combustible materials, and is field-convertible for natural gas or propane. An ASME "H" stamp boiler circulator is included.
Warranty information: Ten-year limited heat exchanger and one-year limited parts warranties are available.
Special installation requirements: The unit's installation and operation manual provide special installation requirements.
Contact: Bradford White Water Heaters; www.bradfordwhite.com.
eProduct 166
Bryant

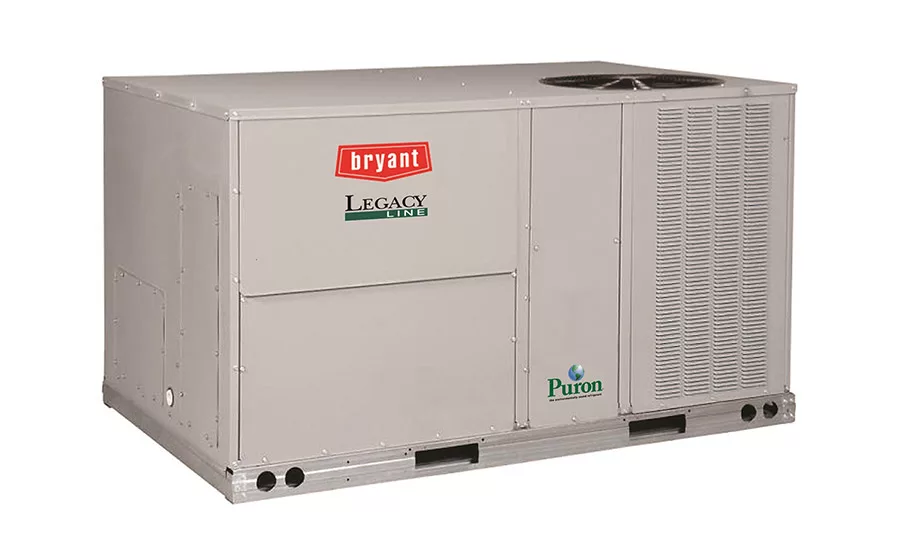

Model: Preferred Series 549J packaged rooftop
Footprint (in inches): 74-141 (length) by 47-86 (width) by 33-48 (height)
Serviceability features: The unit comes standard with a large, organized control box and standardized components. The central terminal control board provides one convenient location for easy access for wiring and service points. Quick entry is provided courtesy of easy-access panels, no-strip screw technology, and tool-less filter access.
Technical support: Support is available at www.bryant.com, 888-994-7237, or through a nationwide network of local distributors.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, prop condenser fans, and rigid base rails assist with noise reduction.
IAQ equipment supported: The packaged rooftop unit offers integrated economizer capability with multiple sensor options, 2-inch disposable filters, and multiple fan performance capabilities.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: Some shared parts and some unique parts.
Additional features: Units are designed for vertical or horizontal airflow capabilities. The basic footprint has not changed in many years, making it ideal to directly fit on previous Bryant models. Additionally, the unit is available with many certified factory-installed options and field-installed accessories. Units come standard with a refrigerant suction-line accumulator.
Warranty information: Five-year limited compressor, five-year limited parts and electric heaters, and one-year limited parts warranties are available. Optional extended protection program coverage is also available.
Special installation requirements: None. The suction line accumulator is standard and comes factory-installed.
Contact: Bryant, 317-847-6930; www.bryant.com.
eProduct 167
Model: Preferred Series 581J packaged rooftop
Footprint (in inches): 74-158 (length) by 47-86 (width) by 33-57 (height)
Serviceability features: An exclusive gas controller provides on-board diagnostics with an LED error indicator, burner logic, and energy-saving indoor fan motor delay for easy troubleshooting. Quick entry is provided courtesy of large access doors with handles and the unit’s no-strip screw system.
Technical support: Support is available at www.bryant.com, 888-994-7237, or through a nationwide network of local distributors.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, prop condenser fan, and rigid base rails assist with noise reduction.
IAQ equipment supported: A factory-installed Perfect Humidity dehumidification system and 2-inch disposable filters are supported. Units are also available with multiple types of air economizers and power exhaust systems with the use of multi-speed indoor fan motors on most models.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: These units are designed for vertical or horizontal airflow capabilities. The basic footprint has not changed in many years, which makes it ideal to directly fit on past Bryant models. The unit is available with many certified factory-installed options and field-installed accessories.
Warranty information: Ten-year parts-only aluminized heat exchanger, 15-year parts-only stainless steel heat exchanger, five-year parts-only compressor, and one-year parts-only all-other-parts warranties are available. Optional extended protection programs are also available.
Special installation requirements: None.
Contact: Bryant, 317-847-6930; www.bryant.com.
eProduct 168
Carrier

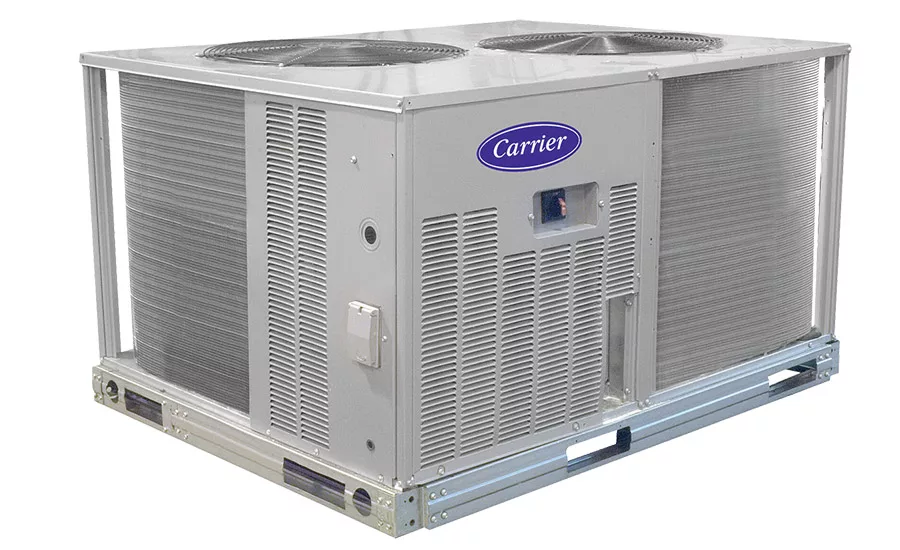

Model: Gemini 38AUQ split system heat pump
Footprint (in inches): 59-86 (length) by 46-67 (width) by 42-50 (height)
Serviceability features: The unit utilizes the Comfort Alert diagnostic and troubleshooting control system, which includes a system go LED indicator, fault LED indicator, compressor fault LED indicator, phase-loss protection, phase-reverse protection, and anti-short cycle protection.
Technical support: A widespread distribution network features on-site technical advisory staff and Carrier's Commercial Replacement Experts training program. Additional training is available through Carrier University. Call 800-946-2930 or visit www.carrier.com/commercial for more information.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: High-efficiency hermetic scroll compressors include a vibration-isolation system and overload protection for quiet, durable operation.
IAQ equipment supported: When paired with Carrier’s 40RUQ air handler, direct-expansion cooling coils prevent the buildup of humidity. Thermal insulation contains an immobilized anti-microbial agent to inhibit the growth of bacteria, and an accessory economizer can provide ventilated air, which can improve IAQ.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: Units come standard with dependable time/temperature defrost controls and a refrigerant suction-line accumulator. The 38AUQ’s complete offering of sizes, operations, and options make it an ideal solution for replacement or new construction applications.
Warranty information: Five-year standard limited parts compressor and one-year standard limited parts all other parts warranties are available. Optional extended warranties are also available.
Special installation requirements: None. The factory-installed refrigerant suction line accumulator comes standard.
Contact: Carrier Corp., 317-847-6930; www.carrier.com/commercial.
eProduct 169

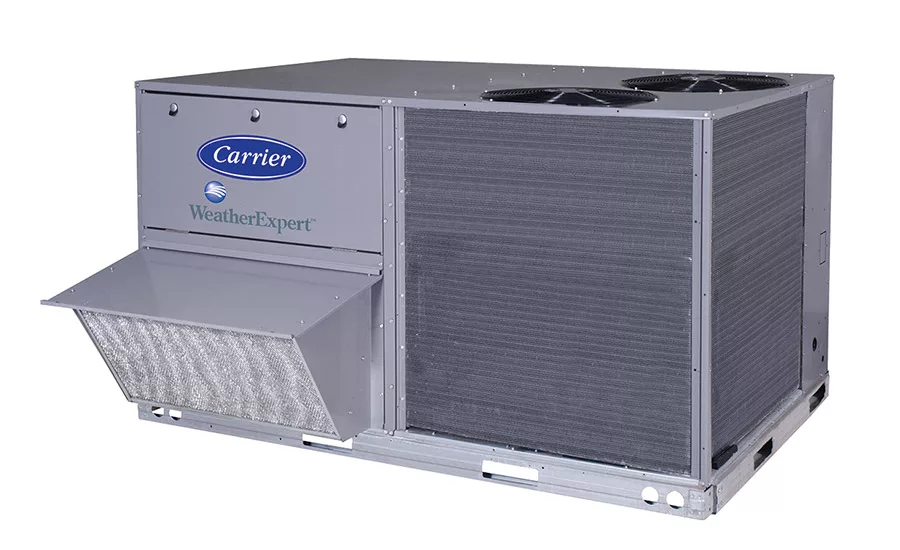

Model: WeatherExpert packaged VAV rooftop
Footprint (in inches): 88-158 (length) by 59-86 (width) by 49-57 (height)
Serviceability features: The unit’s full-sized panels with handles and no-strip-screw technology grant a user easy access to the unit. Gas heat models use an exclusive IGC controller with on-board LED diagnostics, burner logic, and fan control. The units also have an internally sloped self-draining composite condensate pan.
Technical support: Technical advisory staff is available via a widespread distribution network. The Commercial Replacement Experts training program is also available. Additional training is available through Carrier University. For more information, call 800-946-2930 or visit www.carrier.com/commercial.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: A fully insulated cabinet, isolated scroll compressors, prop condenser fan, and rigid base rails help reduce operational noise levels. The indoor motor speed is controlled by a variable frequency drive (VFD) to make sure the fan operates at the system’s optimum speed.
IAQ equipment supported: Factory-furnished air filters and air economizers with sensor options are supported. A supply air temperature sensor provides the optimum in comfort to multiple remote zones. Units also come with the capability to provide morning warmup heat or occupied heating on demand.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system features some shared parts and some unique parts.
Additional features: The unit provides multi-zone variable air volume (VAV) operation down to 6 ton, provides linkage to the remote zone air terminals, and includes a factory-furnished VFD with a duct-static sensor and supply air-temperature sensor.
Warranty information: Ten-year parts-only aluminum heat exchanger, 15-year parts-only stainless steel heat exchanger, five-year parts-only compressor, and one-year parts warranties are available. Optional extended protection programs are also available.
Special installation requirements: The unit requires the use of Carrier zone terminal controls to provide optimum comfort control.
Contact: Carrier Corp., 317-847-6930; www.carrier.com/commercial.
eProduct 170

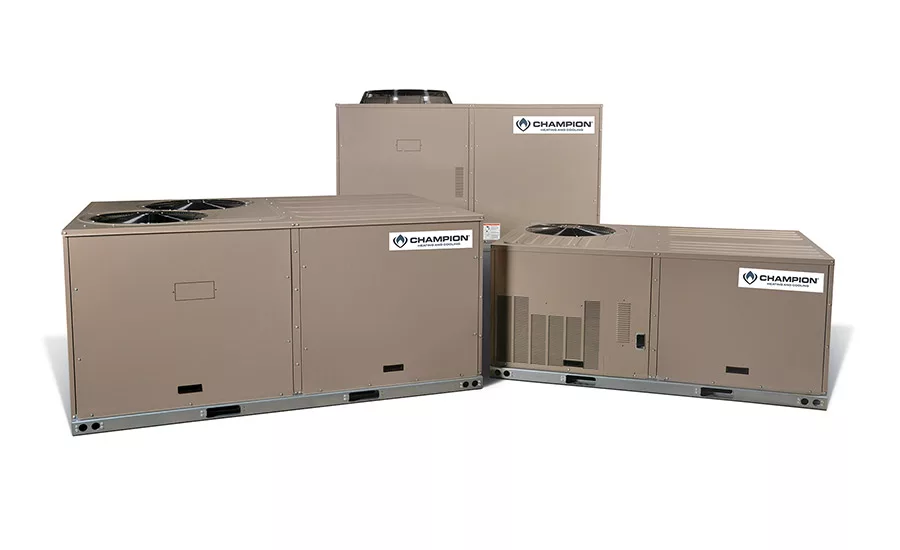

Champion

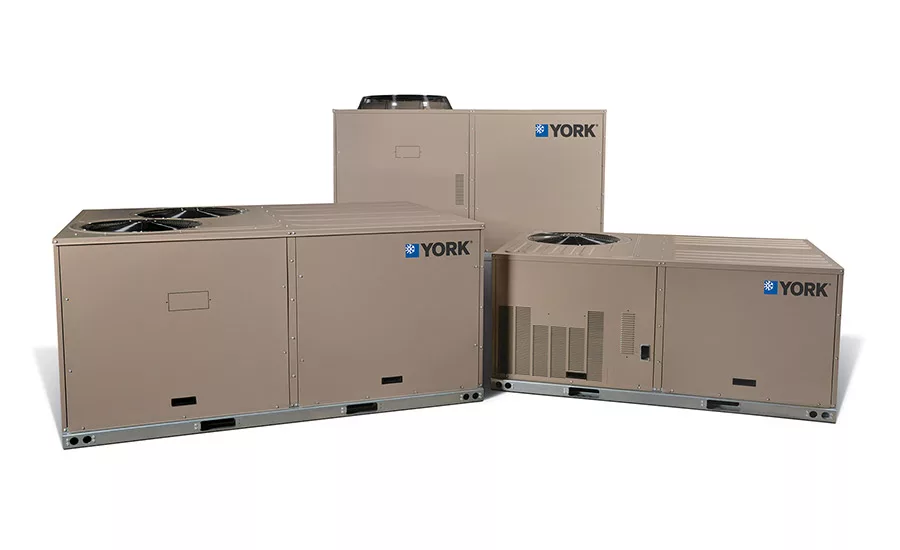

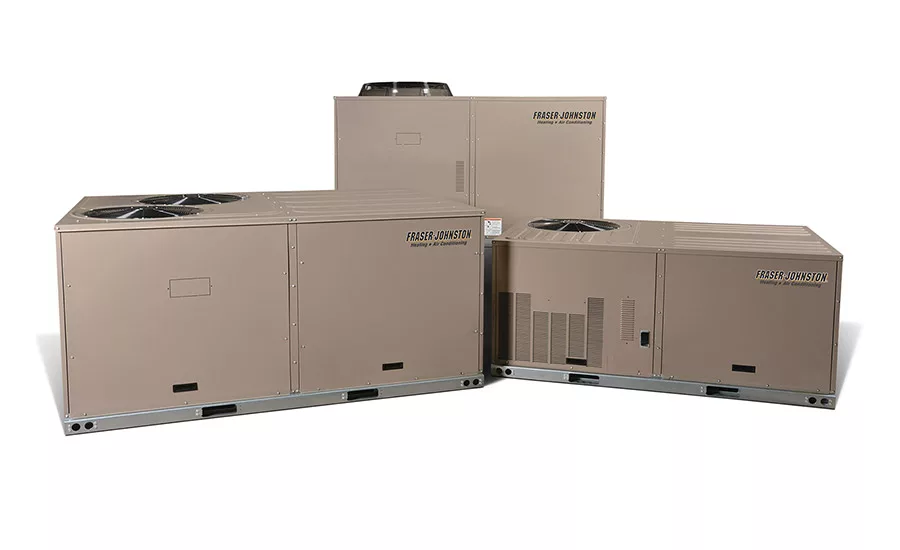

Model: Direct-replacement packaged heat pumps: XYE04-09 (mid-efficiency heat pumps) and XXE12 (standard efficiency heat pump)
Footprint (in inches): 74-87 (length) by 49-62 (width)
Serviceability features: Setup, optimization, and monitoring is easy with standard Simplicity® Smart Equipment™ controls — a next-generation control system offering optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDDs) save contractors time by providing detailed alerts.
Technical support: Support is available through Champion distributors (Winsupply).
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: The system is designed to operate as quietly as 79 dBA outdoors.
IAQ equipment supported: Rooftop units are available with economizer, fresh-air, and relief damper options. Three static-drive options grant airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil-coating options are also available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. The unit is available with adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric-heat configurations.
Warranty information: One-year limited complete unit and five-year limited compressor and electric heater element warranties are available.
Special installation requirements: These heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.
Contact: Johnson Controls Inc., 877-874-7378; www.championhomecomfort.com/replacement.
eProduct 171
Cleaver-Brooks
Model: ClearFire®-LC (CFLC) boiler
Footprint (in inches): 147 (length) by 69 (width) by 126 (height)
Serviceability features: A self-regulating, linkage-less, variable-speed drive (VSD), modulating premix burner delivers low emissions and a high turndown without actuators, dampers, or butterfly valves. Additional features include a built-in multiple-boiler lead-lag control, no minimum return temperature, a thermal shock-resistant design, low pressure drop, and low flow tolerance. A hinged, swing-out burner simplifies service. The unit’s fire tubes are replaceable.
Technical support: Visit www.cleaverbrooks.com/reps to find a local authorized representative.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: A variable-speed combustion air blower provides quiet part-load operation.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: Manufacturer did not specify.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This boiler offers large facilities a condensing boiler option up to 12,000 MBtuh. A high-turndown burner with advanced controls delivers up to 98 percent efficiency and ultra-low emissions to 9 ppm NOx. A modulating premix burner can achieve 5:1 turndown. The CFLC 8,000 MBtuh is Air-Conditioning, Heating, and Refrigeration Institute (AHRI)-certified.
Warranty information: Standard 12/18 month parts, 20-year thermal shock, 10-year corrosion heat exchanger, and five-year premix burner warranties are available.
Special installation requirements: The unit is compatible with any hydronic piping arrangement and features dual-water-return capability. It features a high operating temperature (250°F max limit) capability, and a condensate neutralization treatment system is recommended. Category IV flue venting (condensing, positive pressure) is required.
Contact: Cleaver-Brooks, 800-250-5883; www.cleaverbrooks.com.
eProduct 172
Coleman
Model: Peak™ packaged heat pumps: XYE04-09 (mid-efficiency heat pump) and XXE12 (standard efficiency heat pump)
Footprint (in inches): 74-87 (length) by 49-62 (width)
Serviceability features: Setup, optimization, and monitoring is easy with standard Simplicity Smart Equipment controls, which is a next-generation control system offering optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDDs) save contractors time by providing detailed alerts.
Technical support: Support is available through Coleman distributors.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: The unit is designed to operate as quietly as 79 dBA outdoors.
IAQ equipment supported: Rooftop units are available with economizer, fresh-air, and relief damper options. Three static-drive options grant airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil-coating options are also available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. The unit is available with adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric-heat configurations.
Warranty information: One-year limited complete unit and five-year limited compressor and electric heater element warranties are available.
Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.
Contact: Johnson Controls Inc., 877-874-7378; www.colemanac.com/peak.
eProduct 173
Comfortmaker

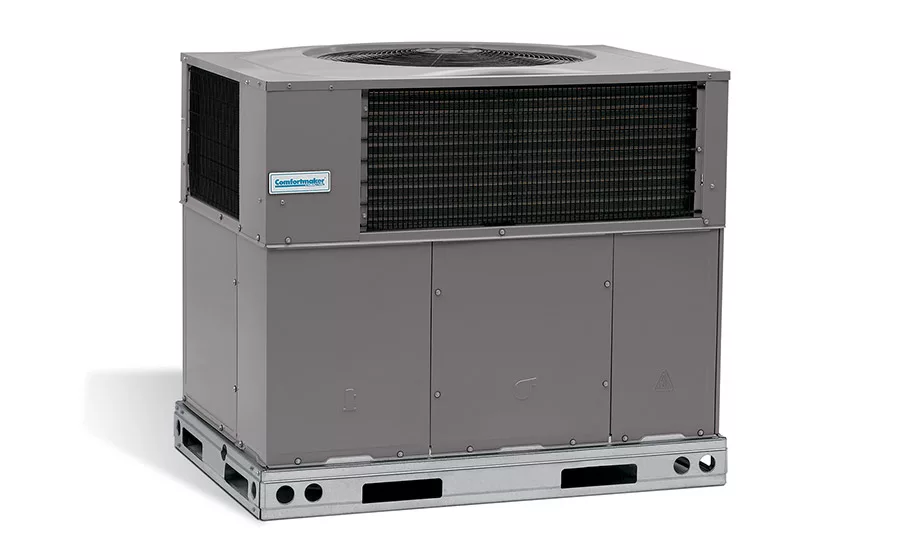

Model: PGR5 packaged gas/electric unit
Footprint (in inches): 31-43 (length) by 47 (width) by 44-53 (height)
Serviceability features: The unit may be easily installed on a rooftop or at the ground level. Three panels allow easy access for maintenance and installation, and the unit may easily be converted for down-discharge applications.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.gocomfortmaker.com.
Noise-reduction features: This packaged gas/electric unit includes a two-stage Copeland scroll compressor, which operates most of the time in the quiet low stage. The unit’s two-stage heating system offers similar comfort benefits in the heating mode. The outdoor fan is sized and optimized for minimal noise.
IAQ equipment supported: Dehumidification mode (airflow reduction) comes standard on all models. The unit’s accessory filter racks support 2-inch filters.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: The units feature two-stage heating and cooling operation, stainless steel tubular heat exchangers, field-convertible airflow, and high-efficiency electronically commutated motor (ECM) indoor blowers. The PGR5 packaged units are Energy Star-qualified and offer cooling efficiencies up to 16 SEER and 12.5 EER.
Warranty information: Ten-year limited heat exchanger, five-year limited compressor, and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.gocomfortmaker.com.
eProduct 174

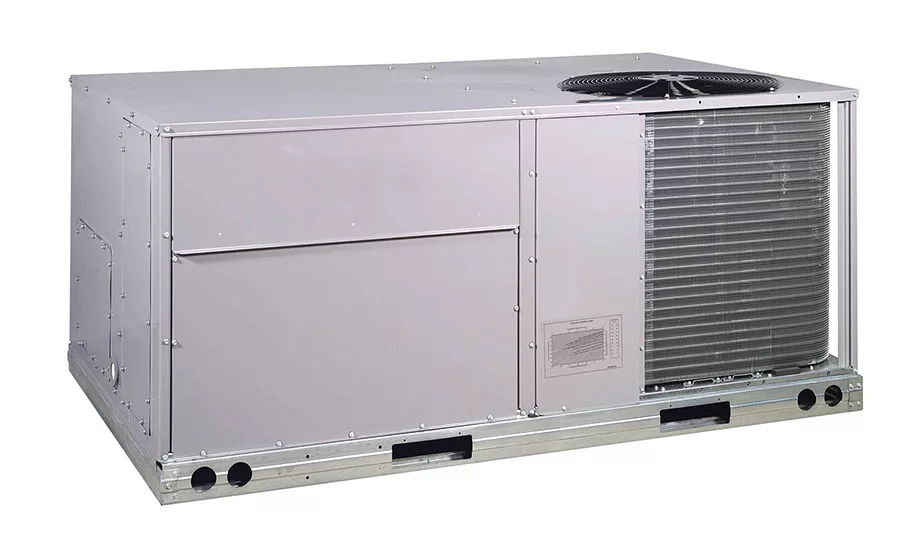

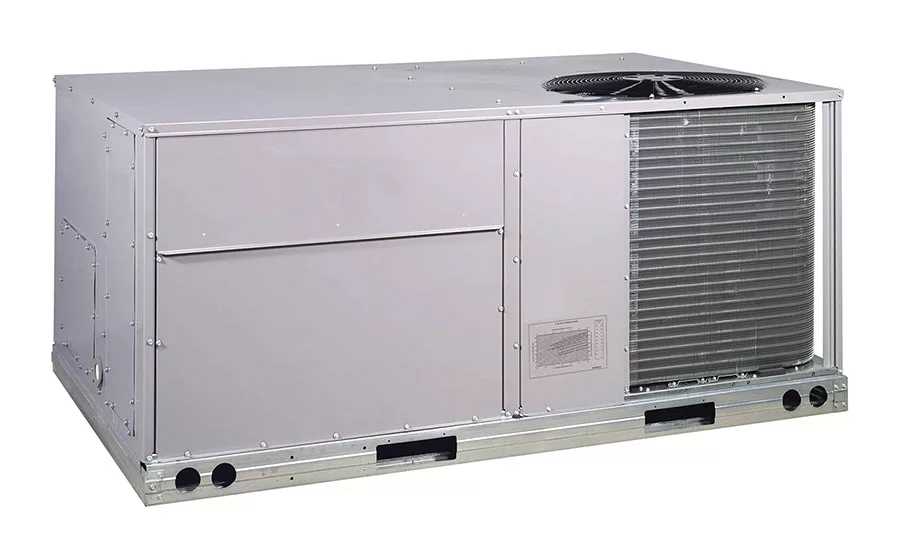

Model: RHH036-072 packaged rooftop heat pump
Footprint (in inches): 74-116 (length) by 46-63 (width) by 33-57 (height)
Serviceability features: Access panels with easy-grip handles provide quick access to the blower motor, control box, and compressors. A no-strip-screw feature has superior holding power and guides screws into position while preventing them from stripping the unit’s metal. The unit’s terminal board facilitates simple safety-circuit troubleshooting and it offers a simplified control box arrangement.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; an owner’s manual; submittal data sheets; and product information are posted online at www.gocomfortmaker.com.
Noise-reduction features: The unit’s cabinet is fully insulated.
IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: These Energy Star-qualified units are field-convertible for vertical or horizontal airflow duct configurations. Additional features include high- and low-pressure switches and a scroll compressor with internal line-break overload protection. A high-static indoor fan and economizers are factory-installed options.
Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.gocomfortmaker.com.
eProduct 175

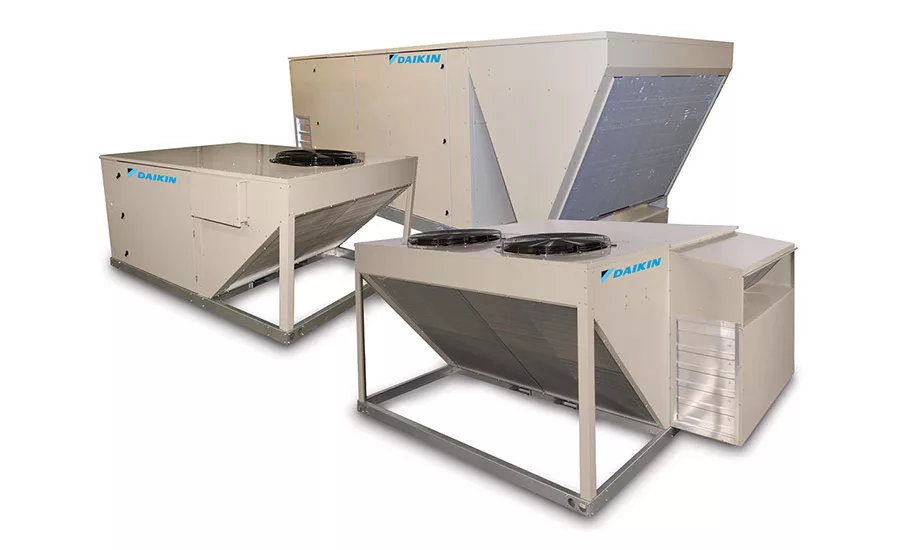

Daikin Applied
Model: Rebel®, DPS variable-speed heat pump
Footprint (in inches): 87-97 (length) by 86-206 (width) by 41-71 (height)
Serviceability features: MicroTech® III controls, MicroTech® Integrated System, or Intelligent Equipment® controls solutions provide easy building automation system (BAS) integration, diagnostics, and serviceability. Additional features include 2- or 4-inch slideout filter racks; a slideout energy recovery wheel; a low-maintenance, direct-drive electronically commutated motor (ECM) and plenum fan motors; dependable variable-speed inverter scroll compressor; easy-access hinged doors; and cleanable double-wall foam-injected panels.
Technical support: Contact a local Daikin Applied service representative for complete startup services, comprehensive maintenance agreements, and repair services. Daikin’s Technical Response Center provides answers to operational and technical questions and can troubleshoot any Daikin Applied equipment. Emergency service and 24/7 repairs are also available.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Quiet variable-speed condenser fans, an enclosed inverter compressor, quiet variable-speed ECM, direct-drive plenum on all supply/return/exhaust fans, and double-wall R-7/R-13 foam-injected panels help reduce operational noise levels.
IAQ equipment supported: A stainless steel double-sloped drain pan, 100 percent dedicated outdoor air system (DOAS) option, modulating hot-gas reheat dehumidification control, combination 2- or 4-inch filter option, MERV prefilters/afterfilters, and cleanable double-wall construction are supported.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Additional features include a variable-speed inverter compressor; variable-speed heat pump with supplemental gas; electric, hot water, or modulating heat; direct-drive fans with variable-speed ECM or variable frequency drive (VFD) motors; energy recovery; outdoor air monitor; modulating hot-gas reheat and dehumidification; MicroTech III controls; Microtech Integrated System (MIS) solutions; and Intelligent Equipment control solutions.
Warranty information: The unit offers Daikin Applied's standard warranty.
Special installation requirements: All components are factory-installed except the space sensor, humidity sensor, and optional static-pressure-sensing tubes. Daikin Rebel commercial rooftop system are easily installed and maintained by capable service and mechanical contractors. Daikin recommends utilizing regional technical training sessions to maximize efficient installation.
Contact: Daikin Applied, 763-553-5330; www.daikinapplied.com.
eProduct 176

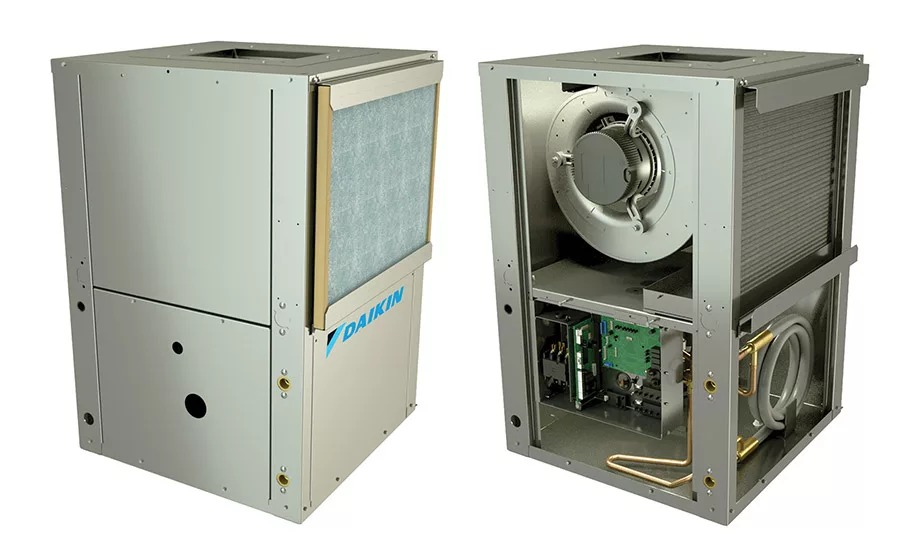

Model: SmartSource® compact, vertical, water-source heat pump, GCV
Footprint (in inches): 19-26 (length) by 19-34 (width) by 24-59 (height)
Serviceability features: The unit’s 19-by-19-by-24-inch footprint replaces other units and fits tight spaces. Swing-out/removable control box provides easy access to components. An LED sight glass offers fast diagnostics, and the unit features a slide-out fan and motor assembly. Additional features include MicroTech III controls for easy building automation system (BAS) integration, low-maintenance electronically commutated motors (ECMs), and a convenient non-fused disconnect for shut-off and lockout at the unit.
Technical support: Contact local Daikin Applied service representative for complete startup services, comprehensive maintenance agreements, and repair services. Daikin’s Technical Response Center provides answers to operational and technical questions and can troubleshoot all Daikin Applied equipment. Emergency service and 24/7 repairs are also available.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Double compressor isolation, 1-inch closed-cell insulation and/or compressor sound blanket options, a quiet scroll compressor, and quiet ECM(s) help minimize operational noise levels.
IAQ equipment supported: Closed-cell foam insulation, a double-sloped drain pan, and dehumidification with hot-gas reheat are supported.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Features include six cabinet sizes, three ECM fan motor selections, hot-gas reheat, a waterside economizer, hydronic heat, an LED diagnostics service viewport, a slide-out fan assembly, double compressor isolation, a disconnect switch, 2- to 4-inch MERV filters, a MicroTech III swing-out control box, a four-position fan switch, and epoxy-coated coils.
Warranty information: A one-year standard parts warranty is available from startup. A free one-year labor warranty covers labor costs concurrent with Daikin’s standard parts warranty. Four-year extended parts warranties with labor allowance plans cover labor costs concurrent with Daikin's standard parts warranty plus 48 additional months of parts- and labor-allowance coverage.
Special installation requirements: None.
Contact: Daikin Applied, 763-553-5330; www.daikinapplied.com.
eProduct 177
Daikin - Unitary

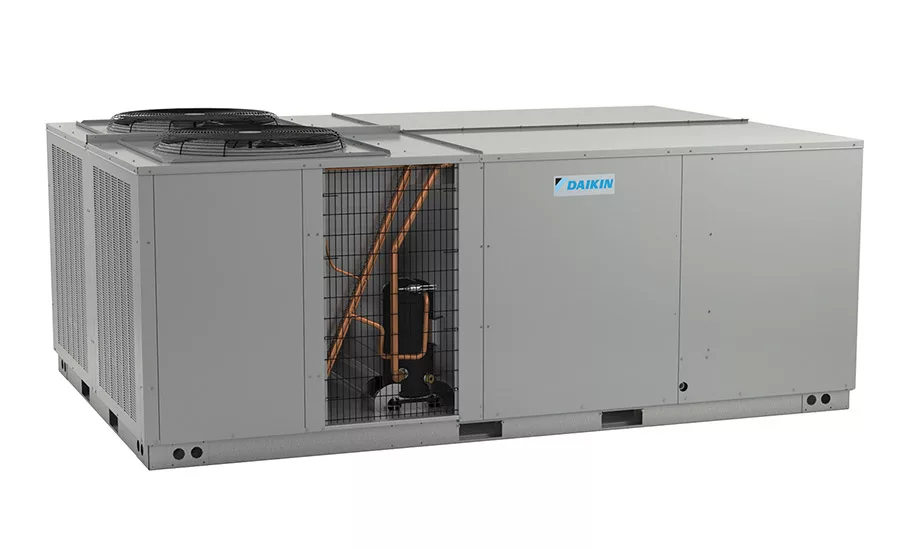

Model: DCG-300 gas/electric rooftop
Footprint (in inches): 133 (length) by 88 (width) by 53 (height)
Serviceability features: Standard features include a full-perimeter base rail, sloped drain pan, contactors with lugs, high- and low-pressure switches, high-capacity steel-cased filter driers, a crankcase heater, and a built-in filter rack for 2-inch filters that is convertible to 4-inch sizes. Options include a stainless steel heat exchanger, electric heat kits, a low-ambient kit, economizers, a convenience outlet, and smoke detectors.
Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988, option No. 5. Support is also available via a local Daikin distributor.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: High-efficiency scroll compressors help minimize operational noise levels.
IAQ equipment supported: Factory-installed economizers provide and control fresh outside air.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: This new larger-sized 25-ton rooftop model features two high-efficiency scroll compressors, an aluminum microchannel evaporator coil, and two-stage heating via an award-winning tubular heat exchanger design. All of these components help provide exceptional performance, efficiency, and reliability.
Warranty information: Five-year limited parts and 20-year limited heat exchanger warranties are available.
Special installation requirements: Units are shipped with downflow orientation but are convertible to horizontal orientation, and each comes with a full-perimeter base rail and a sloped drain pan for easy installation.
Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.
eProduct 178
Model: DTH/DTG high-efficiency rooftop units
Footprint (in inches): 74 (length) by 48 (width) by 39-43 (height)
Serviceability features: Standard features include a full-perimeter base rail, sloped drain pan, contactors with lugs, high- and low-pressure switches, high-capacity steel-cased filter driers, and a built-in filter rack for 2-inch filters. Options include a stainless steel heat exchanger, electric heat kits, a low-ambient kit, a downflow economizer, convenience outlet, smoke detectors, and hinged access panels.
Technical support: Support is available 7 a.m. to 7 p.m. Central time, Monday to Friday, at 888-593-9988, option No. 5. Support is also available via a local Daikin distributor.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: High-efficiency scroll compressors help minimize operational noise levels.
IAQ equipment supported: Factory-installed economizers provide and control fresh outside air.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: This new 3- to 5-ton, one- and three-phase, 15-SEER rooftop product line is ideal for light commercial applications. Select units feature a SmartCoil condensing coil, which is an advanced and efficient 5-mm copper-tube and aluminum-fin combination. Factory-installed hinged-access panels and convenience outlets simplify service.
Warranty information: Five-year limited parts and 20-year limited heat exchanger warranties are available.
Special installation requirements: Units are shipped with downflow orientation but are convertible to horizontal orientation. Units come with a full-perimeter base rail and a sloped drain pan for easy installation.
Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.
eProduct 179
Daikin-VRV
Model: FXTQ_TAV multi-position VRV air handler
Footprint (in inches): 21 (length) by 18-25 (width) by 45-58 (height)
Serviceability features: This air handler can be installed in vertical, downflow, horizontal-right, or horizontal-left positions. Its compact design is engineered for commercial and residential applications, as it features zero clearance on three sides and requires only 24-inch clearance on the front for service. An integrated control board with quick-disconnect control wiring terminals simplifies installation and service. An optional disconnect may be factory-installed.
Technical support: Support is available via a local distributor or at 866-432-4546.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: The unit’s fully insulated cabinet with less than 2 percent air leakage operates as quietly as 36 dBA for sound-sensitive environments.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: The unit provides a wide line of auxiliary electric heat. The heat logic features a reduced heater operation deadband and boasts the ability to run both heat pump and auxiliary heat for maximum comfort and performance in colder climates. The auxiliary heat can be interlocked with the ambient temperature sensed by the outdoor unit.
Warranty information: A standard 10-year limited parts warranty is available.
Special installation requirements: Manufacturer did not specify.
Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.
eProduct 180

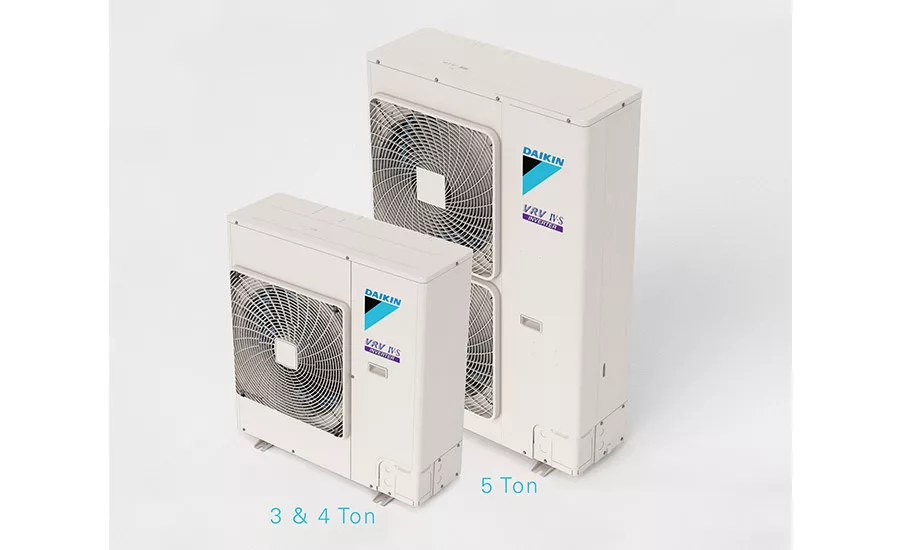

Model: VRV IV S-Series mini VRV heat pump system
Footprint (in inches): 37 (length) by 13 (width) by 39-53 (height)
Serviceability features: This heat pump system has the ability to connect up to 10 indoor units to one outdoor unit and features long piping lengths up to 984 feet. The smaller, space-saving design is ideal for tight applications. Units operate dependably in extreme ambient conditions of up
to 122°F.
Technical support: Support is available via a local distributor or at 866-432-4546.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Standard operating sound levels are minimized with Daikin's Inverter variable-speed compressor.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: The unit is equipped with variable refrigerant temperature (VRT) technology, which provides year-round comfort and energy savings. The system operates dependably down to minus 4° in heating and up to 122° in cooling. Small, lightweight designs are ideal for light commercial or residential applications.
Warranty information: Ten-year limited parts and 10-year limited compressor replacement warranties are available.
Special installation requirements: Manufacturer did not specify.
Contact: Daikin North America LLC, 713-861-2500; www.daikincomfort.com.
eProduct 181
Day & Night

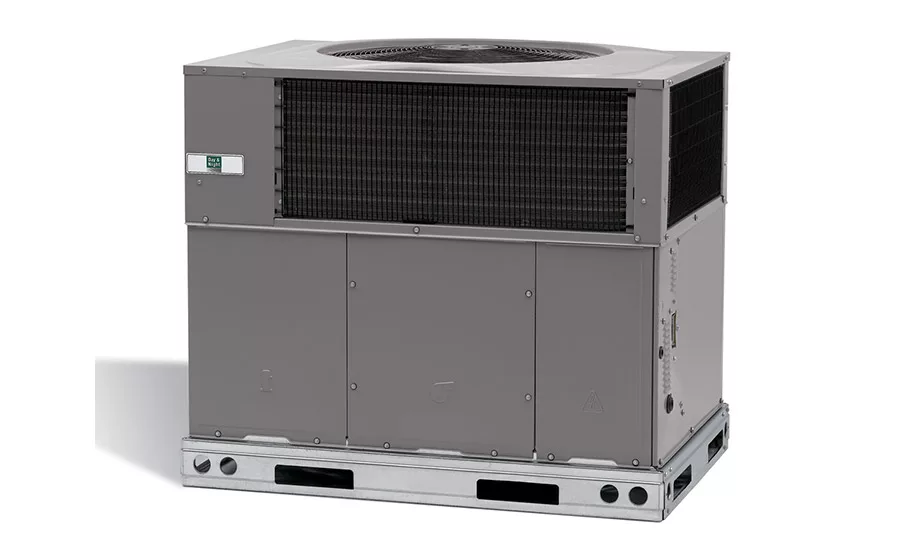

Model: PHR5 packaged heat pump
Footprint (in inches): 33-44 (length) by 48-49 (width) by 44-55 (height)
Serviceability features: The system may be easily installed on a rooftop or at the ground level. Three panels allow easy access for maintenance and installation, and the unit may be easily converted for down-discharge applications.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.godayandnight.com.
Noise-reduction features: The unit includes a two-stage Copeland Scroll compressor, which operates most of the time in the quiet low stage. The outdoor fan is sized and optimized for minimal noise.
IAQ equipment supported: Enhanced dehumidification is available on high-stage cooling with the use of a dehumidistat, and the unit’s accessory filter racks support 2-inch filters.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Two-stage Copeland Scroll compressors provide two-stage heating and cooling operation. Units include field-convertible airflow for either ground-level (horizontal) or rooftop (down) airflow. The unit utilizes high-efficiency electronically commutated motor (ECM) indoor blowers. The PHR5 packaged heat pumps are Energy Star-qualified and provide cooling efficiencies up to 15.5 SEER and 12.5 EER.
Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.godayandnight.com.
eProduct 182

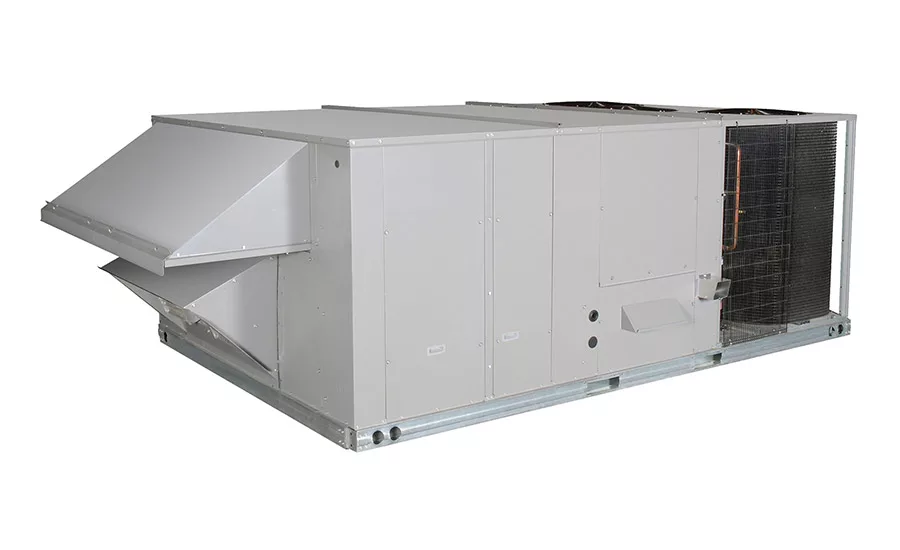

Model: RGH181-303 packaged gas/electric unit
Footprint (in inches): 128-158 (length) by 86 (width) by 49-57 (height)
Serviceability features: Features include an IGC solid-state control for on-board diagnostics with an LED error code designation, burner control logic, and an energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. This unit features through-the-base utility connections, and its access panels include easy-grip handles and offer a no-strip screw feature.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. Technical training is available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.godayandnight.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Energy Star-qualified units feature dedicated vertical or horizontal airflow duct configuration models, high- and low-pressure switches, and scroll compressors. Units feature two-stage cooling with independent circuits and control. An optional medium- and high-static indoor fan and economizer are available as factory-installed options.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized stainless steel heat exchanger, five-year limited compressor, and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.godayandnight.com.
eProduct 183
First Co.
Model: Hydrotech FHR water-source heat pump vertical stack
Footprint (in inches): 88 (length) by 19-24 (width) by 19-24 (height)
Serviceability features: Service access to all unit components is available from the front of the unit behind an access return panel. The refrigeration circuit and water connections are accessible from a slide-out chassis.
Technical support: Support is available 8 a.m. to 5 p.m. Central time.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and submittal data sheets are available.
Noise-reduction features: Sound attenuation is provided with a heavy-duty, insulated compressor cover that reduces unwanted noise. A five-second compressor delay allows the blower to start before the compressor, which attenuates compressor startup sound.
IAQ equipment supported: The unit’s condensate drain pan is constructed of corrosion-resistant material. The pan is sloped so condensate flows to the drain connection. The heat pump has a built-in dehumidification function that runs the lowest fan speed for 10 minutes upon startup and then increases the blower speed to the nominal cfm until the thermostat is satisfied. Its continuous dehumidification mode selects continuous low-speed fan operation for increased humidity removal. One-inch filters come standard and are factory-installed.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: This series offers a wide range of standard features, including microprocessor controls, a thermostatic expansion valve (TXV) metering device, a galvanized steel cabinet, foil-faced insulation, two-speed motor operation, and an (optional) ECM for all models.
Warranty information: Five-year compressor and one-year parts warranties are available.
Special installation requirements: None.
Contact: First Co.; www.firstco.com.
eProduct 184
Fraser-Johnston
Model: ReliaCore™ 200 Series packaged heat pumps: XYE04-09 (mid-efficiency heat pump) and XXE12 (standard efficiency heat pump)
Footprint (in inches): 74-87 (length) by 49-62 (width)
Serviceability features: Setup, optimization, and monitoring is easy with standard Simplicity Smart Equipment™ controls, a next-generation control system offering a optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDDs) save contractors time by providing detailed alerts.
Technical support: Support is provided through Fraser-Johnston distributors.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: The unit is designed to operate as quietly as 79 dBA outdoors.
IAQ equipment supported: ReliaCore rooftop units are available with optional economizer and fresh-air and relief damper options. Three static-drive options provide airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filter and epoxy coil-coating options are available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: ReliaCore heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. The unit is available with adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric-heat configurations.
Warranty information: One-year limited complete-unit and five-year limited compressor and electric heater element warranties are available.
Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other units without the need for a curb adapter.
Contact: Johnson Controls Inc., 877-874-7378; www.fraserjohnstoncommercial.com.
eProduct 185
GeoComfort

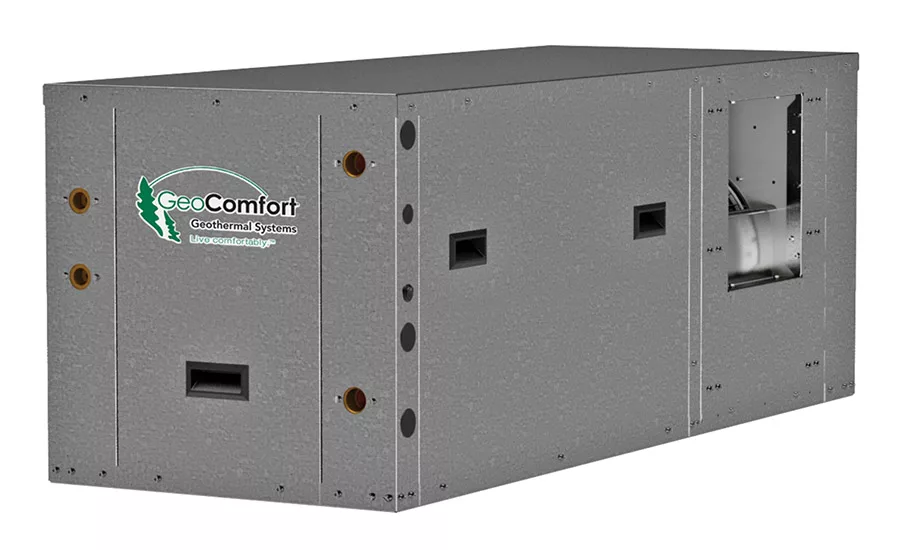

Model: Element Series GZT 024-072, compact, horizontal, packaged, ground-source heat pump
Footprint (in inches): 52-61 (length) by 22-24 (width) by 19-21 (height)
Serviceability features: A hinged control box swings open and is removable for access to internal components. Electrical and water connections are located on the front corner post, and refrigerant test ports are accessible via a front panel. All exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation, and a desuperheater switch is externally mounted.
Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech Geothermal University at 618-664-3255, training@geothermaluniversity.com, or online at www.geothermaluniversity.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and numerous installation and technical training videos are available for viewing and download via www.geothermaluniversity.com.
Noise-reduction features: The ground-source heat pump’s double-mount compressor system featuring elastomeric compressor vibration-absorption pads, and rubber grommets provide exceptional sound and vibration insulation. High-density, UL GreenGuard-certified, closed-cell foam insulation protects against mold and improves sound absorption. Additionally, its enhanced shock-loop refrigerant piping design reduces vibration.
IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Enertech products are compatible with most other air filtration, humidification, or purification systems.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: ZS/ZT models feature a field-configurable side or end discharge, an all-aluminum microchannel air coil (MCHX), foam-enclosed brazed-plate heat exchanger (BPHE), sensor and flow-switch freeze protection, and reduced refrigerant charge. The compact, lightweight design allows for easy installation in 24-inch-on-center attic trussing or suspended ceilings.
Warranty information: Standard commercial units include one-year parts-only warranty coverage. Extended warranty options are available, including five-year compressor-only, five-year refrigerant parts-only, and five-year internal parts-only.
Special installation requirements: Its small footprint, front-corner, post-mounted plumbing and electrical connections, and field-selectable discharge air pattern are ideal for retrofit or new build applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and installer- and technician-friendly package provides excellent performance and reliability.
Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.
eProduct 186
Halcyon

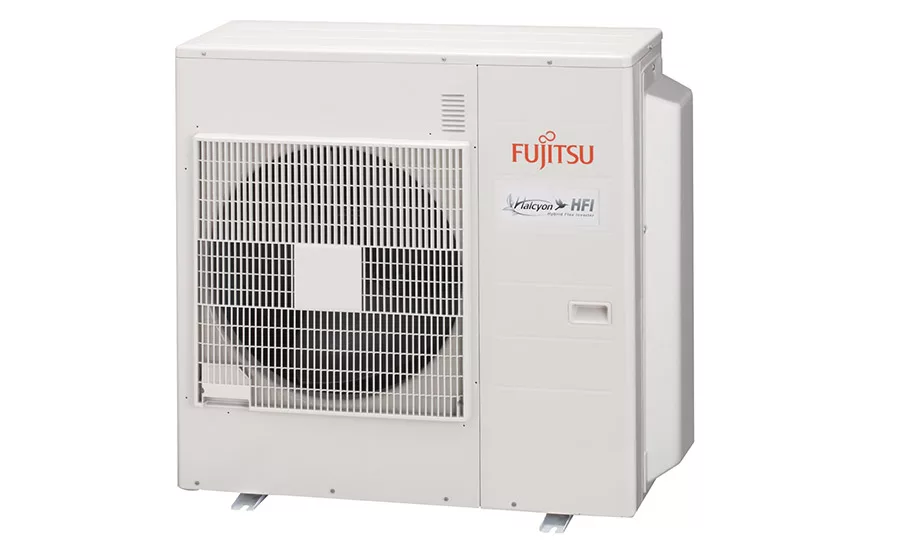

Model: Multi-Zone mini-split heat pump system, AOU36RLXFZH
Footprint (in inches): 38 (length) by 36 (width) by 2 (height)
Serviceability features: The unit includes a self-diagnostic system with easy-to-read LED error codes that can be looked up via Fujitsu’s Mobile Technician app.
Technical support: Support is available 8 a.m. to 8 p.m. Eastern time at 866-952-8324. From mobile devices, contractors can download the Fujitsu Mobile Technician app, where they can view error codes and determine troubleshooting steps. Through a password-protected website, contractors can download design and technical manuals; installation, service, and operation manuals; and submittal drawings.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Indoor units operate whisper-quiet, and the sound pressure level registers at 55 dB.
IAQ equipment supported: Ion deodorization filters decompose absorbed odors using the oxidizing/reducing effects of ions generated by the ultra-fine-particle ceramic. Apple-catechin filters absorb fine dust, invisible mold spores, and harmful microorganisms onto the filter by static electricity, which inhibits and deactivates further growth. Filters boast a three-year life expectancy, and surface action may be restored courtesy of a wash.
Thermostat compatibility: The unit requires a wired remote.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This heat pump features low-temperature heating at outdoor temperatures down to minus 15°F, a programmable remote control, and inverter technology. The mini split, which qualified as one of Energy Star’s Most Efficient products in 2016, features an outdoor unit with a base heater that prevents condensate from freezing.
Warranty information: Standard five-year parts and seven-year compressor warranties are available. Units installed by licensed contractors and registered online gain 10-year parts and compressor warranties. Units installed by Fujitsu Elite Contractors and registered online receive 12-year parts and compressor warranties. See the warranty statement for full details.
Special installation requirements: The unit has a minimum lineset length of 17 feet per unit. Also, the unit has minimum of 50 feet combined between the linesets.
Contact: Fujitsu General America Inc., 973-575-0380; www.fujitsugeneral.com.
eProduct 187
Heil

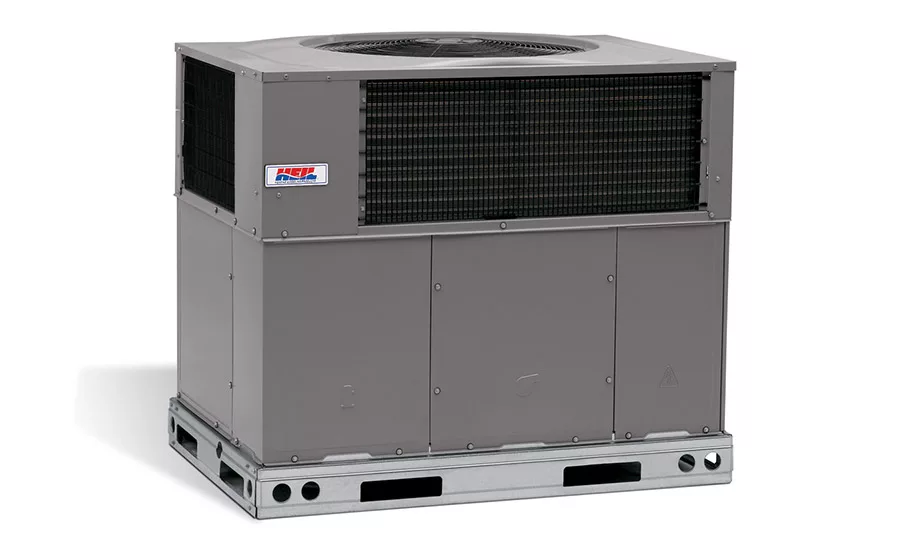

Model: PHR5 packaged heat pump
Footprint (in inches): 33-44 (length) by 48-49 (width) by 44-55 (height)
Serviceability features: The unit may be easily installed on a rooftop or at the ground level. Three panels allow easy access for maintenance and installation, and the unit may easily be converted for down-discharge applications.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.goheil.com.
Noise-reduction features: The heat pump includes a two-stage Copeland Scroll compressor, which operates most of the time in the quiet low stage. The outdoor fan is sized and optimized for minimal noise.
IAQ equipment supported: Enhanced dehumidification is available on high-stage cooling with the use of a dehumidistat, and its accessory filter racks support 2-inch filters.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Its Copeland Scroll compressors provide two-stage heating and cooling operation. Units include field-convertible airflow for ground-level (horizontal), rooftop (down) airflow, and high-efficiency electronically commutated motor (ECM) indoor blower motors. PHR5 packaged heat pumps are Energy Star-qualified and boast cooling efficiencies up to 15.5 SEER and 12.5 EER.
Warranty information: Five-year limited compressor and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.goheil.com.
eProduct 188
Model: RGH090-150 packaged gas/electric unit
Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)
Serviceability features: Features include an IGC solid-state control for on-board diagnostics with an LED error code designation, burner control logic, and an energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. This unit features through-the-base utility connections, and its access panels include easy-grip handles and offer a no-strip-screw feature.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and additional product information are available online at www.goheil.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This Energy Star-qualified unit features field-convertible airflow; high- and low-pressure switches; and dual scroll compressors, which have internal line-break overload protection. Three heat options (high, medium, and low) and a medium- and high-static indoor fan are available. Other market-driven options, such as liquid-propane/high-altitude kits, are also available.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized stainless steel heat exchanger, five-year limited compressor, and one-year limited all other parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.goheil.com.
eProduct 189
Hydron Module
Model: Origin Series, HZT 024-072, compact, horizontal, packaged, ground-source heat pump
Footprint (in inches): 52-61 (length) by 22-24 (width) by 19-21 (height)
Serviceability features: A hinged control box swings open and is removable for access to internal components. Electrical and water connections are located on the front corner post. The refrigerant test port is accessible through a front panel, and all exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. Additionally, the desuperheater switch is externally mounted.
Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech Geothermal University at 618-664-3255, training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and numerous installation and technical training videos are available and for viewing and download via www.geothermaluniversity.com.
Noise-reduction features: A double-mount compressor system featuring elastomeric compressor vibration-absorption pads and rubber grommets provide superior sound and vibration insulation. High-density, UL GreenGuard-certified, closed-cell foam insulation protects against mold and improves sound absorption. An enhanced shock-loop refrigerant piping design reduces vibration.
IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Enertech products are compatible with most other air filtration, humidification, or purification systems.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: ZS/ZT models feature a field-configurable side or end discharge, an all-aluminum microchannel air coil (MCHX), foam-enclosed brazed-plate heat exchanger (BPHE), sensor and flow-switch freeze protection, and a reduced refrigerant charge. The compact, lightweight design allows for easy installation in 24-inch-on-center attic trussing or suspended ceilings.
Warranty information: A standard commercial one-year parts-only coverage warranty is available. Five-year compressor-only, five-year refrigerant parts-only, and five-year internal parts-only extended warranty options are available, as well.
Special installation requirements: Its small footprint, front-corner, post-mounted plumbing and electrical connections, and field-selectable discharge air pattern are ideal for retrofit or new build applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and technician-friendly package provides excellent performance and reliability.
Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.
eProduct 190
ICP Commercial

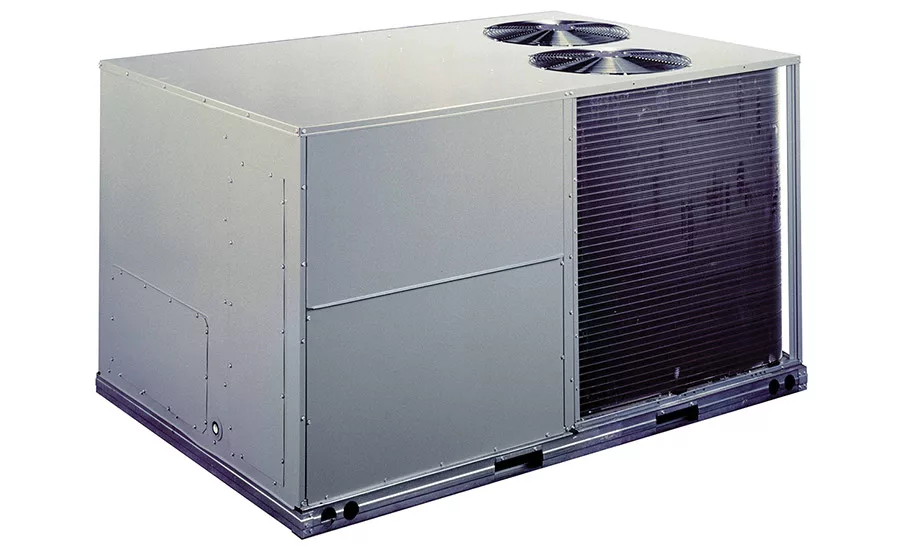

Model: RGH090-150 packaged gas/electric unit
Footprint (in inches): 88-116 (length) by 60-63 (width) by 49-57 (height)
Serviceability features: Features include an IGC solid-state control for on-board diagnostics with an LED error code designation, burner control logic, and an energy-saving indoor fan motor delay. All connections and troubleshooting points are conveniently located on the easily accessible master terminal board. This unit features through-the-base utility connections, and its access panels include easy-grip handles and offer a no-strip-screw feature.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.goicpcommercial.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This Energy Star-qualified unit features field-convertible airflow; high- and low-pressure switches; and dual scroll compressors, which feature internal line-break overload protection. Three heat options (high, medium, and low) and a medium- and high-static indoor fan are available. Other market-driven options, such as liquid-propane/high-altitude kits, are also available.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized stainless steel heat exchanger, five-year limited compressor, and one-year limited all other parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.goicpcommercial.com.
eProduct 191
Model: RGS210-336 packaged gas/electric rooftop
Footprint (in inches): 128-158 (length) by 87 (width) by 49-57 (height)
Serviceability features: Units have provisions for through-the-bottom power entry. All connections and troubleshooting points are conveniently located on the master terminal board. Access panels have easy-grip handles and no-strip screws, and an IGC solid-state control provides on-board diagnostics with an LED error code designation, burner control logic, and an energy-saving indoor fan motor delay.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.goicpcommercial.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters, and an optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide outdoor air for demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: The unit is available in dedicated vertical or horizontal airflow duct configurations. This ASHRAE 90.1-compliant unit features high- and low-pressure switches, and its scroll compressor features internal line-break overload protection. Three heat options (high, medium, low), stainless steel heat exchangers, and a high-static indoor fan are available as factory-installed options.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized heat exchanger, five-year limited compressor, and one-year limited all other parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.goicpcommercial.com.
eProduct 192
Indeeco

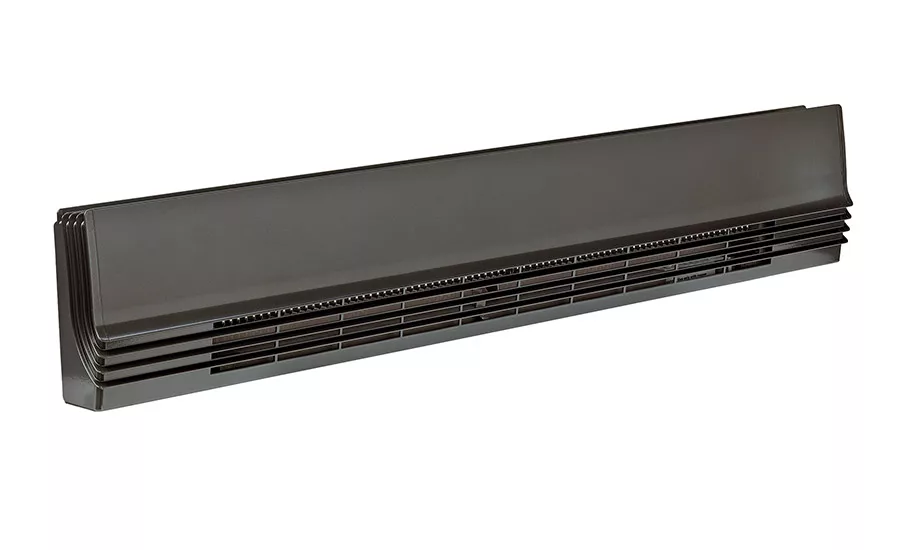

Model: BCHI high-end baseboard heater
Footprint (in inches): 25-104 (length) by 3 (width) by 7 (height)
Serviceability features: Each baseboard heater has a junction box located on both ends and a built-in full-length wire pathway.
Technical support: Support is available 7 a.m. to 3:30 p.m. at 314-644-4300.
Technical support materials: Installation, operation, and maintenance manuals; specification sheets; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: The sleek, flowing, curved aluminum front cover and end caps offer a unique design for architectural applications. They are designed to fit under large windows to prevent cold down drafts. These heaters can provide total or supplemental heating for a variety of applications.
Warranty information: Warranties last 18 months from the date of shipment of the product from Indeeco's factory or 12 months from the date the product is first placed into service, whichever period lapses first.
Special installation requirements: A field- or factory-installed low-voltage relay is required. Thermostat kits fit into the right-hand junction box only.
Contact: Indeeco, 314-644-4300; www.indeeco.com.
eProduct 193
iSeries
Model: IS36G110 inverter heat pump
Footprint (in inches): 47 (length) by 16 (width) by 42 (height)
Serviceability features: This multi-split outdoor unit comes with four easy-to-access refrigerant ports, which allow it to connect to multiple Unico ducted or ductless units at the same time. This can be achieved out of the box without any additional modifications or special settings, which grants contractors incredible flexibility when configuring an HVAC system.
Technical support: Support is available 7 a.m. to 5 p.m. Central time, Monday to Friday, at 800-527-0896.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and a Unico System You Tube channel are available.
Noise-reduction features: Due to its inverter technology, the outdoor unit operates at just 47 dB. The matching high-wall indoor units are exceptionally quiet at just 23 dB, which is the equivalent of a soft whisper.
IAQ equipment supported: The permanent filter in the matching iSeries high-wall unit is easily removed for cleaning. No replacement filters are needed.
Thermostat compatibility: The unit is compatible with most thermostats, including two-stage heat pump thermostats or special infrared remotes.
Replacement parts compatibility: The unit does not share replacement parts with other models.
Additional features: This unit can operate ducted and ductless units at the same time. The durable unit performs in a broad range of outdoor temperatures, from minus 25° to 122°F. With inverter technology, there are no on or off cycles, which helps the system conserve energy and reach the indoor target temperature quicker.
Warranty information: A one-year parts warranty is available prior to the installation date. Five-year warranties are also available for preferred Unico contractors.
Special installation requirements: Installation of the indoor high-wall units is easy due to their compact design and light weight. The larger of the two units measures just 9-by-39-by-11 inches and weighs only 26 pounds. It comes with a thermostat remote control, which can be mounted to a wall and may control up to four units.
Contact: Unico Inc., 800-527-0896; www.unicosystem.com.
eProduct 194
Johnson Controls

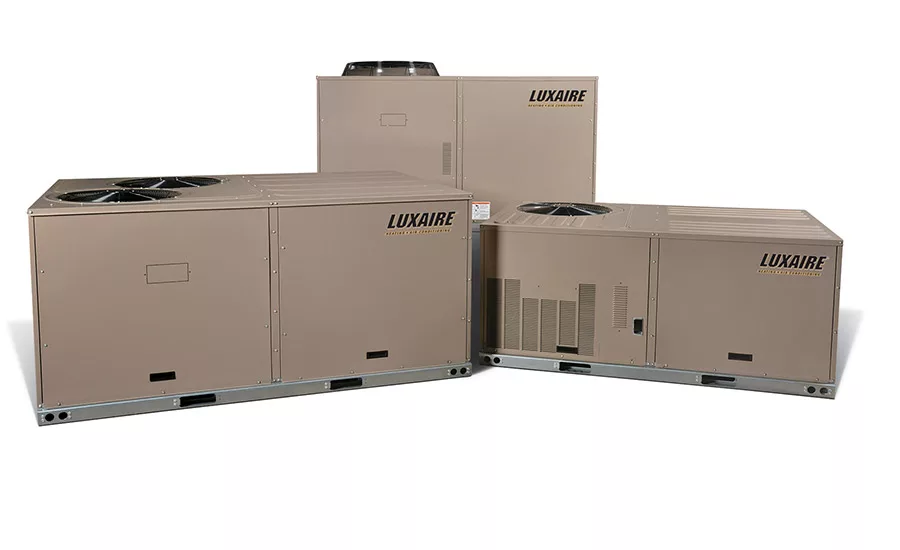

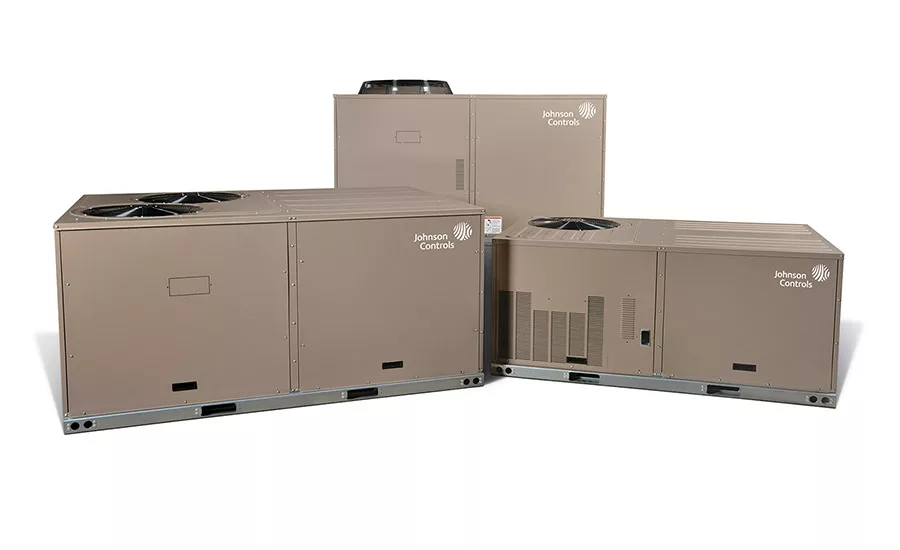

Model: Series 12R packaged heat pumps: XYE04-09 (mid-efficiency heat pump) and XXE12 (standard efficiency heat pump)
Footprint (in inches): 74-87 (length) by 49-62 (width)
Serviceability features: Setup, optimization, and monitoring is easy with standard Simplicity Smart Equipment controls, which is a next-generation control system offering an optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDDs) save contractors time by providing detailed alerts.
Technical support: Support is available through Johnson Controls’ distribution network.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: The unit’s outdoor unit is designed to operate as quietly as 79 dBA.
IAQ equipment supported: Rooftop units are available with an economizer and fresh-air and relief damper options. Three static-drive options grant airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil-coating options are also available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: These heat pumps feature an exact-fit replacement design that matches the footprints of other manufacturers’ units to reduce installation time, cost, and complexity. The units also offer adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric-heat configurations.
Warranty information: One-year limited complete unit and five-year limited compressor and electric heater element warranties are available.
Special installation requirements: The unit is designed to provide a trouble-free match to the footprints of other units without the need for a curb adapter.
Contact: Johnson Controls Inc., 414-524-1200; www.johnsoncontrols.com.
eProduct 195
Laars Heating Systems

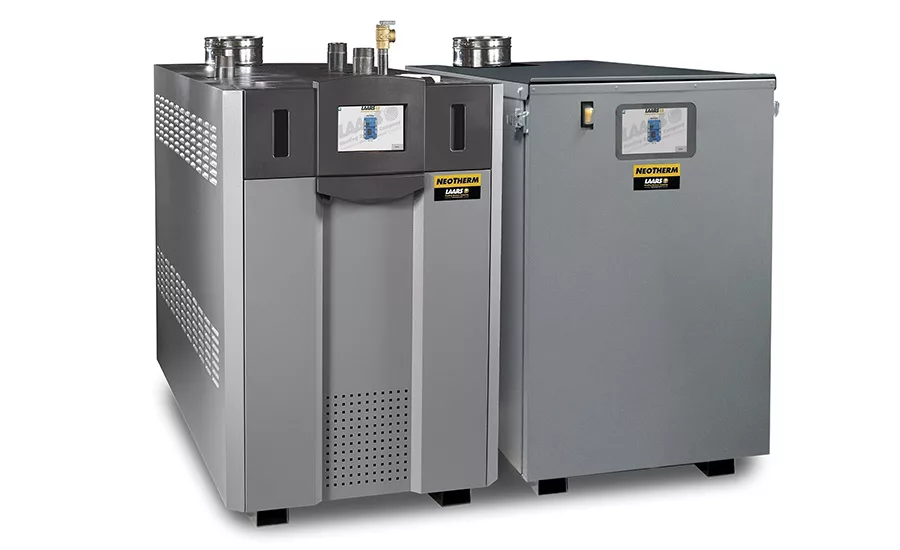

Model: NeoTherm outdoor boiler
Footprint (in inches): Manufacturer did not specify.
Serviceability features: Access to most components, including the controls, gas valves, blowers, burner, and more, is available via the front and top of the NeoTherm. All piping comes from the back of the boiler, which helps make installations neat and piping easily accessible.
Technical support: Support is available 8 a.m. to 5 p.m. Eastern time at 800-900-9276. Regional service managers are located throughout the U.S. and Canada.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available. Installation manuals and parts numbers may be looked up by serial number at www.laars.com.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: NeoTherm is a 95 percent-plus AFUE sealed combustion boiler or volume water heater (285-1,200 MBtuh) with 5:1 modulation. The unit offers zero clearance to combustibles for indoor models and is now available as an outdoor boiler. Horizontal or vertical direct venting is available up to 100 feet in polyvinyl chloride (PVC) or stainless steel materials.
Warranty information: A 10-year limited warranty is available for boiler models while water heaters carry a five-year limited water heater warranty.
Special installation requirements: A new, advanced LCD features a touch-pad control interface that includes menus in English and easy-to-understand codes. Additional features include easy, quick setup; advanced setup functionality; an outdoor reset with customizable reset curves; a domestic hot water override; and warm-weather shutdown. Controls can stage up to eight boilers, and the system is now available as an outdoor unit.
Contact: Laars Heating Systems, 603-335-6300; www.laars.com.
eProduct 196
LG

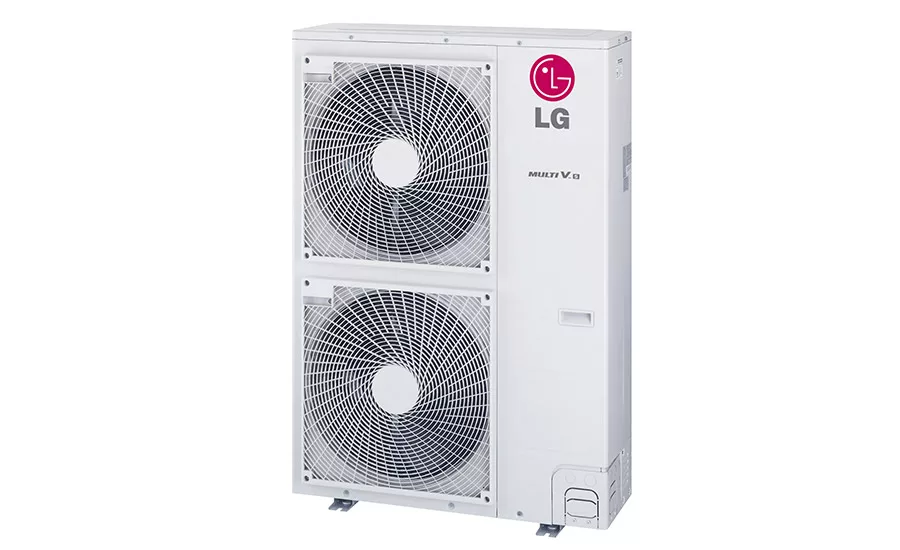

Model: LG Multi V™ S/ARUN048GSS4 heat pump
Footprint (in inches): 38 (length) by 13 (width) by 55 (height)
Serviceability features: LGMV and Mobile LGMV software can help technicians monitor system performance and provide assistance with troubleshooting.
Technical support: Support is available 7 a.m. to 6 p.m. Central time, Monday to Friday, at 888-865-3026.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; specification sheets; and an owner’s manual are available.
Noise-reduction features: To reduce noise, the compressor is wrapped with a heat-resistant blanket and mounted on rubber-isolation grommets. In addition, the compressor’s bearings are Teflon®-coated. The outdoor unit operates at 50 dBA (the sound of moderate rainfall) and also pairs with some of the quietest indoor units in the industry, which operate as quietly as 23 dBA.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: This heat pump is compatible with all LG wired controllers and through LG’s dry contact for third-party thermostats.
Replacement parts compatibility: The system does not share replacement parts with other models.
Additional features: It only requires single-phase power rather than the traditional three-phase required for most variable refrigerant flow (VRF) systems. It can provide heat down to an outside temperature of minus 4°F, resulting in cost savings for building owners. The system requires little to no ductwork, which increases flexibility and savings.
Warranty information: Standard two-year parts and six-year compressor warranties are available. Extended warranties are available for purchase through qualified HVAC professionals.
Special installation requirements: For optimum performance and service, installation should be performed by qualified HVAC professionals who have attended LG HVAC training. LG also provides technical support throughout the installation and commissioning process.
Contact: LG Electronics USA Inc.; www.lghvac.com.
eProduct 197
LJ Wing

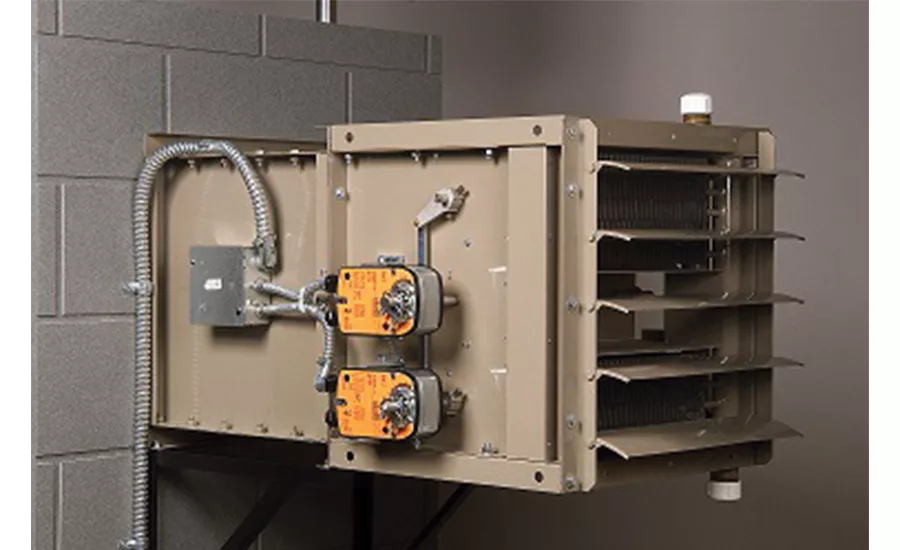

Model: HS-FAS hydronic make-up air unit
Footprint (in inches): Manufacturer did not specify.
Serviceability features: The variable-speed feature does not require a variable frequency drive (VFD) but does require controls, such as the AdaptAire controls.
Technical support: Manufacturer did not specify.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a troubleshooting guide; specification sheets; startup instructions; submittal data sheets; and a technical guide are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with direct digital controls (DDCs).
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: The makeup air unit is capable of tempering sub-freezing air. It includes an integral face and bypass coil that shuts off airflow when there is no call for air or heat. The unit includes an electronically commutated motor (ECM) on a plenum fan, which can operate at a set speed or variable speed with DDCs available.
Warranty information: A one-year parts warranty is available.
Special installation requirements: The existing fresh-air supply (FAS) unit has been updated to handle 2 inches of external duct static, draw-through design, ECMs, and a high-efficiency plenum fan.
Contact: Mestex, a division of Mestek Inc., 214-819-5243; www.mestex.com.
eProduct 198
Luxaire
Model: Eclipse™ packaged heat pumps: XYE04-09 (mid-efficiency heat pump) and XXE12 (standard efficiency heat pump)
Footprint (in inches): 74-87 (length) by 49-62 (width)
Serviceability features: Setup, optimization, and monitoring is easy with standard Simplicity Smart Equipment controls, which is a next-generation control system offering an optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDDs) save contractors time by providing detailed alerts.
Technical support: Support is provided through Luxaire’s distribution network.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: The unit’s outdoor unit is designed to operate as quietly as 79 dBA.
IAQ equipment supported: Eclipse rooftop units are available with an economizer and fresh-air and relief damper options. Three static-drive options deliver airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil-coating options are also available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Eclipse heat pumps feature an exact-fit replacement design that matches the footprints of other units to reduce installation time, cost, and complexity. The unit is available with adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric-heat configurations.
Warranty information: One-year limited complete unit and five-year compressor and electric heater elements warranties are available.
Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other manufacturers’ units without the need for a curb adapter.
Contact: Johnson Controls Inc., 877-874-7378; www.luxaire.com/eclipse.
eProduct 199
Mammoth

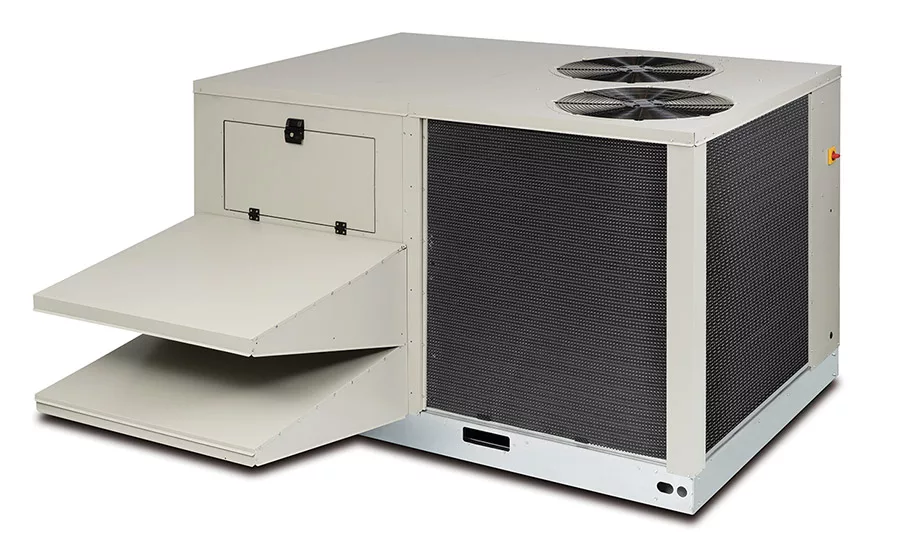

Model: R7TQ furnace
Footprint (in inches): 88 (length) by 59 (width) by 50 (height)
Serviceability features: Features include hinged service access doors, sheet metal internal panels, an easily accessible compressor, a factory-installed disconnect, a convenience outlet, a stainless steel heat exchanger, and coated outdoor coils.
Technical support: Support is available 8 a.m. to 4:30 p.m. Central time at 800-422-4328.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Foam panel construction and isolation grommets on the compressor help reduce operational noise levels.
IAQ equipment supported: Sheet metal internal panels prevent mold issues, and MERV-8 return air filters are optional.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: These models fit on many competitive roof curbs and do not require a curb adapter, which helps reduce replacement costs.
Warranty information: One-year parts, five-year compressor, and 10-year heat exchanger warranties are available.
Special installation requirements: In many situations, a curb adapter will not be required.
Contact: Mammoth Light Commercial, 800-422-4328; www.mammothlc.com.
eProduct 200

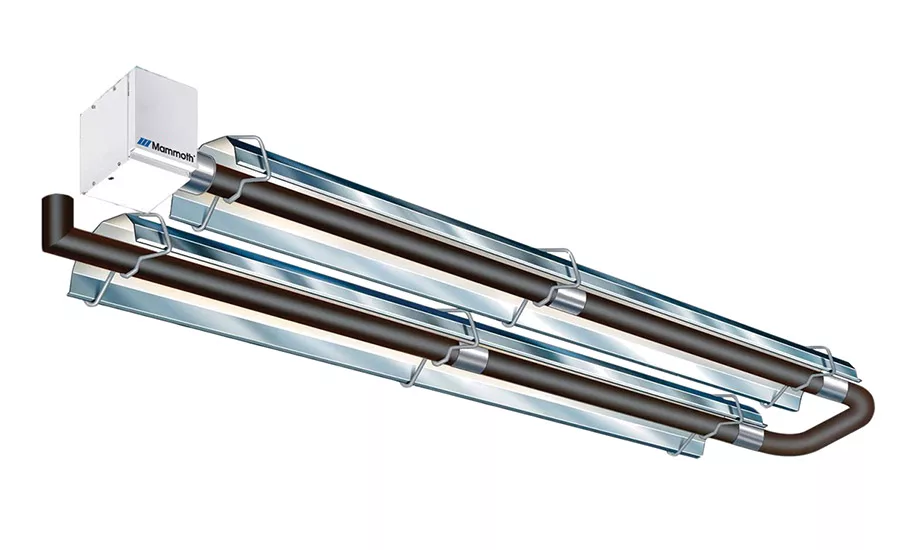

Model: VP and VC low intensity radiant
Footprint (in inches): Manufacturer did not specify.
Serviceability features: These gas-fired radiant heaters have convenient service panels, which make operational parts easily accessible.
Technical support: Technical support is available by phone or at www.mammothlc.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and submittal data sheets are available.
Noise-reduction features: Radiant heaters have no large air-moving device, which enables quiet operation.
IAQ equipment supported: Radiant heaters are indoor space-heating equipment with no air-moving device. No air movement means no disruption of ambient-air-requiring filters.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: These units are highly configurable and can be arranged to fit the geometric requirements of the desired space. The Model VC has an IP54 rating and is approved for outdoors as well as washdown areas, such as car washes.
Warranty information: Ten-year combustion chamber and heat exchanger tubes and five-year mechanical and electrical parts warranties are available.
Special installation requirements: When using radiant heating for spot-heating applications, consider the location of people and work being performed to properly position the heaters. Radiant heat is line of sight. Be cautious of obstructions between heaters and the area to be heated.
Contact: Nortek Global HVAC, 800-422-4328; www.mammothlc.com.
eProduct 201
Marvair
Model: Scholar V heat pump
Footprint (in inches): 48 (length) by 30 (width) by 94 (height)
Serviceability features: All service and maintenance is performed from the front or side of the unit, and there is no need to slide the unit away from the wall. The heavy-duty hinged front panels open 180 degrees to access internal parts, filters, and controls. Indoor and outdoor coils are easily accessible for cleaning.
Technical support: Support is available at 888-726-2734 or marvairtechsupport@airxcel.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: All exterior cabinet panels include double-wall construction with a perforated interior panel and finished exterior panel. Between the two sheet metal panels is a 1 ¼-inch thick acoustical and thermal insulation. The perforation pattern and the insulation are designed to optimize the reduction of sound. The absorption mechanism of these panels is a combination of the perforated panels and insulation acting together as an array of Helmholtz resonators.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit requires a special thermostat, and the thermostat/controller is included with the unit.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: These fifth-generation heat pumps with FlexCap™ variable-speed compressor technology automatically vary output to precisely match the classroom load and can’t undercool or overcool the space. Under certain conditions, it's possible to overspeed the compressor to 4,800 rpm, yielding a higher capacity than the design rating of 3,600 rpm.
Warranty information: The standard warranty covers manufacturing defects for the first 15 months from the original shipment date, or 12 months from the date of initial startup, whichever comes first. Additional warranty options are also available.
Special installation requirements: This heat pumps installs in the classroom against an exterior wall. The outdoor air box slides into an opening in the exterior wall and provides for the ingress and egress of the condenser air as well as the intake and exhaust for the ventilation air.
Contact: Marvair, 229-268-9312; www.marvair.com.
eProduct 202
Mitsubishi Electric
Model: CITY MULTI® L-Generation VRF air-source heat pump system
Footprint (in inches): 29 (length) by 36-69 (width) by 65 (height)
Serviceability features: Built-in diagnostics within the controls system direct a technician to a specific issue. Convenient front, side, and top panels allow for easy access to serviceable components.
Technical support: Support is available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 800-433-4822. The Diamond Service Group provides support at the distributor level. Technical information may be downloaded from www.mylinkdrive.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and marketing and selling materials are available.
Noise-reduction features: The outdoor units are designed to operate at 58-65 dBA. The inverter-driven compressor and variable-speed fan often run at partial speed, which results in quiet sound levels.
IAQ equipment supported: Indoor units feature a washable or replaceable filtration system that absorbs odor-causing gases; traps dust, pollens, and other particles; and reduces allergens, viruses, and bacteria in the air for optimal IAQ. Additionally, many indoor units also feature a fresh-air/outside-air connection for the introduction of air from an energy recovery ventilation (ERV) system.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: HexiCoil™ technology — a zinc-aluminum flat-tube heat exchanger — maximizes heat transfer through its enhanced cross-section design and turbulated walls. Zinc coating leads to exceptional corrosion-resistance, which increases its longevity. These features lead to improved efficiency to achieve goals such as Leadership in Energy and Environmental Design (LEED) certification or net-zero status.
Warranty information: A one-year parts warranty is available from the installation date if the unit is installed by a licensed contractor. Seven-year compressor and extended 10-year parts and compressor warranties are available if the system is designed by a Diamond Designer using Diamond System Builder™ and installed by a contractor who has attended the company’s three-day installation course.
Special installation requirements: The system must be installed by a Mitsubishi Electric-trained contractor.
Contact: Mitsubishi Electric US Inc. Cooling & Heating Division, 678-376-2868; www.mehvac.com.
eProduct 203

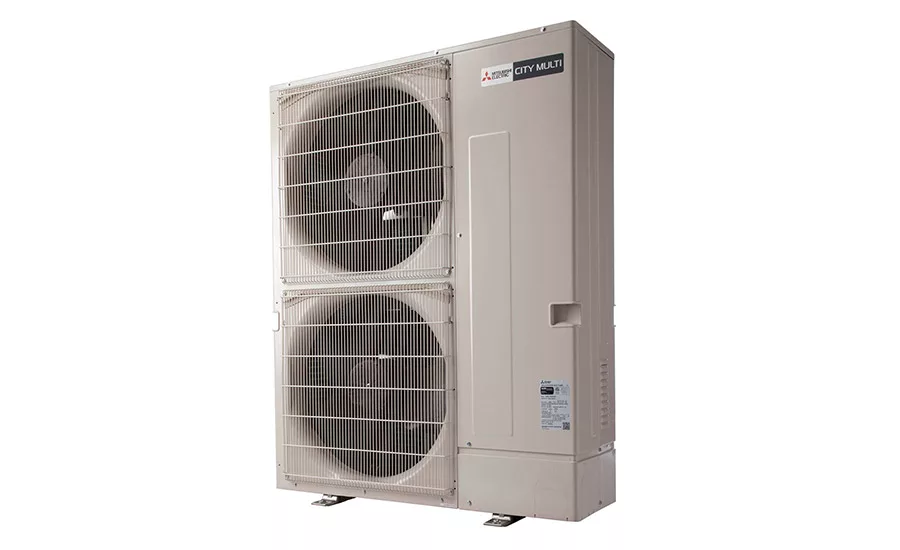

Model: CITY MULTI S-Series VRF heat pump/outdoor unit, PUMY
Footprint (in inches): 13 (length) by 41 (width) by 53 (height)
Serviceability features: Single-phase power simplifies installation in light commercial and residential applications. The unit’s compact dimensions and easy accessibility allow multiple units to be placed side by side in tight areas, which helps save space and resources. The outdoor unit can also be accessed for service through both a front and side panel.
Technical support: Support is available 8 a.m. to 7 p.m. Eastern time, Monday to Friday, at 800-433-4822.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; sales applications; and marketing materials are available.
Noise-reduction features: The units operate at 49-58 dBA. Special care has been taken in the design of the unit to compartmentalize the compressor so that sound is reduced at the source. Specially designed blades and variable-speed motors also help reduce operational sound.
IAQ equipment supported: The unit continuously provides airflow to maintain occupant comfort, because the inverter-driven compressor ramps-up instead of switching on at full speed and then varies speed to maintain the desired comfort level. Units also enable zoning, which helps isolate contaminants. The zoning systems may be easily integrated with ventilation systems.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: A redesigned heat exchanger features an increased surface area by introducing a tube-in-tube heat interchanger. The systems’ heating operating range goes down to minus 13°F, and the cooling range goes down to 5°.
Warranty information: One-year parts and six-year compressor warranties are available to the original owner, provided the system meets criteria relating to who designs and installs the system. An extended warranty of up to 10 years is also available.
Special installation requirements: Compared with earlier models, the piping length improvements allow greater installation flexibility with total piping lengths of 984 feet. The vertical piping difference (outdoor unit lower than indoor units) is 131 feet, and vertical separation between indoor units is 49 feet.
Contact: Mitsubishi Electric US Inc. Cooling & Heating Division, 678-376-2868; www.mehvac.com.
eProduct 204
Navien
Model: NHB-150 boiler
Footprint (in inches): 12 (length) by 17 (width) by 24 (height)
Serviceability features: Manufacturer did not specify.
Technical support: Support is available 4 a.m. to 8 p.m. Pacific time, Monday to Friday, and 5 a.m. to 5 p.m. Pacific time, Saturday and Sunday, at 800-519-8794.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The unit uses some shared parts and some unique parts.
Additional features: A 15:1 turndown ratio provides ease of installation with multiple zones while maintaining high operational efficiencies. The cascading feature for 150 and 110 models will enable one to 16 units based on demand and balance workload for longer life.
Warranty information: Fifteen-year heat exchanger, five-year parts, and one-year labor warranties are available on residential units; and 10-year heat exchanger, three-year parts, and one-year labor warranties are available on commercial units.
Special installation requirements: Manufacturer did not specify.
Contact: Navien Inc., 949-420-0420; www.navien.com.
eProduct 205
RBI Water Heaters
Model: Flexcore firetube boiler
Footprint (in inches): Manufacturer did not specify.
Serviceability features: All components, including the controls, are easily accessible for service and annual maintenance. The boiler is designed specifically for ease of installation and service, and all sizes fit through a 36-inch doorway.
Technical support: Support is available 8 a.m. to 5 p.m. Eastern time, Monday to Friday. A network of manufacturer's representatives is available across North America for regional service.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: Manufacturer did not specify.
Replacement parts compatibility: Manufacturer did not specify.
Additional features: Flexcore symmetrical fire tube boilers utilize a temperature-balanced heat exchanger that provides high efficiencies and durability. The fully modulating firing Flexcore continuously varies the energy input to match the heating load for maximum efficiencies of up to 99 percent.
Warranty information: Manufacturer did not specify.
Special installation requirements: Manufacturer did not specify.
Contact: RBI Water Heaters, 413-568-9571; www.rbiwaterheaters.com.
eProduct 206
Reznor
Model: R6GI weatherized gas/electric packaged unit with iQ drive technology
Footprint (in inches): 48 (length) by 56 (width) by 39 (height)
Serviceability features: Control boards are mounted on a pivoting plate, which simplifies serviceability to components. A simple two-digit display showcases a myriad of cooling troubleshooting faults. The refrigerant ports are located on the unit’s exterior and can be accessed without removing a panel. A simple ignition board is available for heat. A basic two-light display eliminates the need to count and remember any number of flashes for troubleshooting.
Technical support: Support is available 8 a.m. to 4 p.m. Central time at 800-422-4328. Technical literature is also available 24/7 at www.nortekhvac.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; an owner’s manual; a QR code reference sheet; and accessory installation instructions are available.
Noise-reduction features: Inverter technology means the compressor can run as low as 40 percent nominal. The combination of advanced inverter rotary compressor with a compressor blanket and discharge muffler provides exceptionally quiet cooling operation. An electronically commutated motor (ECM) fan motor works in conjunction with a swept-wing fan blade to allow minimal performance. An internal variable-speed blower motor allows for minimal air movement without sacrificing performance.
IAQ equipment supported: Output terminals on the integrated furnace control board provide electronic air cleaner (EAC) and humidification power.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Utilizing inverter technology, this packaged unit operates at 20 SEER. SmartLite technology increases igniter life by decreasing the time needed for energizing. The same color-coded wiring harnesses is used in regard to component operation that has been used for the last several furnace generations.
Warranty information: One-year limited parts from installation or 18 months from date of shipment warranties are available. Extended warranties (additional one-, four-, and nine-year prorated) are also available.
Special installation requirements: None.
Contact: Nortek Global HVAC, 800-422-4328; www.nortekhvac.com.
eProduct 207

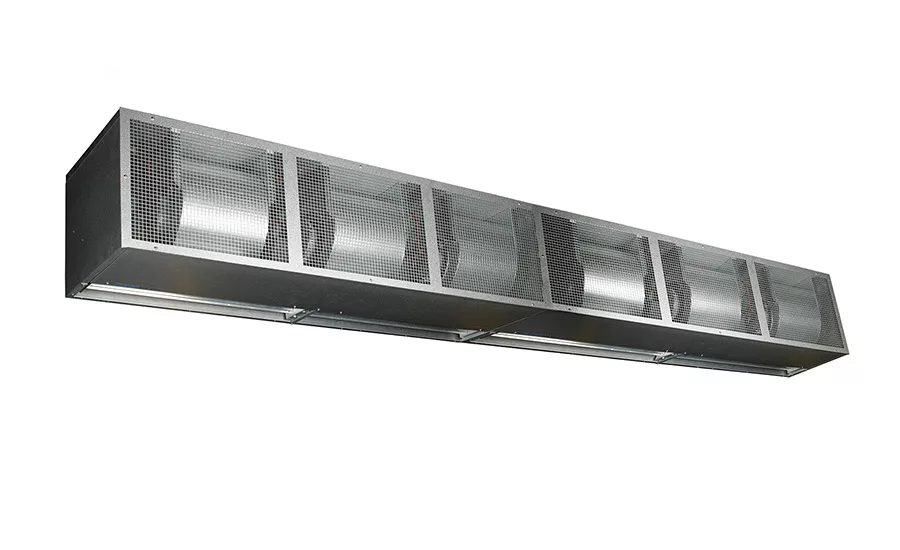

Model: AB175 and AB225 gas-fired air curtain
Footprint (in inches): Manufacturer did not specify.
Serviceability features: Accessible service panels allow for easy access to controls and circuitry.
Technical support: Support is available at 800-695-1905.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: An air curtain forms a barrier between ambient space and the outdoor environment, which prevents any intrusion of outside air.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: Air curtains prevent the intrusion of cold air in the winter and the escape of conditioned air in the summer. The integral gas-fired air curtain can be operated with or without heat and can be used as a unit heater.
Warranty information: A one-year all-parts warranty is available.
Special installation requirements: A contractor should verify the building’s structure is able to support the unit, and the unit must be vented to the outdoors.
Contact: Nortek Global HVAC, 800-695-1901; www.reznorhvac.com.
eProduct 208

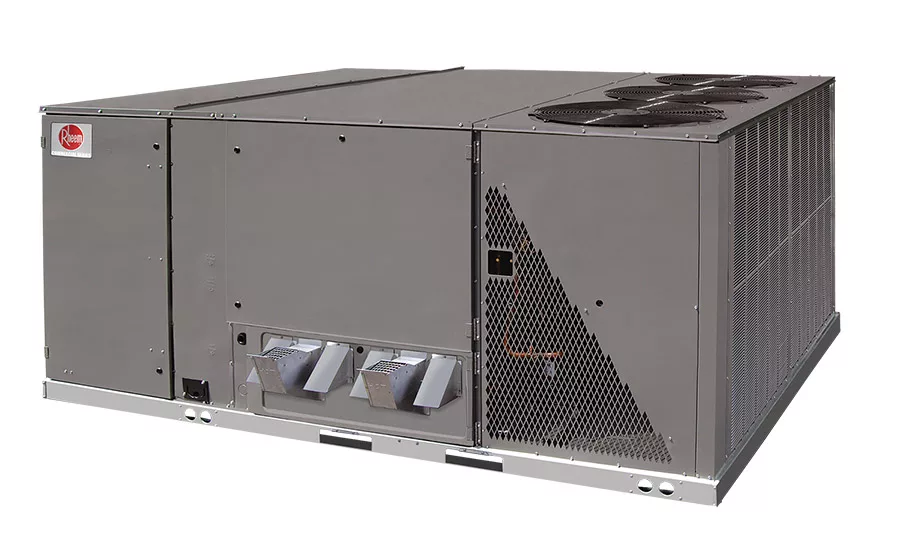

Rheem
Model: H2AC™ rooftop unit featuring eSync™ integration
Footprint (in inches): 125 (length) by 86 (width) by 58 (height)
Serviceability features: The rooftop unit features a slide-out indoor fan assembly and a hinged major access door with heavy-duty gasketing. The single-slab-, single-pass-designed evaporator and condenser coils facilitate easy cleaning. This unit also has externally mounted refrigerant gauge ports; colored/labeled wiring; and the ClearControl™ system for real-time system monitoring, diagnostics, and communication.
Technical support: Support is provided via authorized Rheem distributors’ district service coordinator (DSC) personnel. Additional factory support is accessible through a network of Rheem district technical representatives (DTRs) assigned to cover a geographic territory. DTRs provide field tech support, as needed, to DSC personnel and contractors at the job site. More information is available 24/7 at myrheem.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; an accessories list; tech tips; submittal sheets; service notes; charging information; a use and care manual; job site information sheet (JSIS); and compressor and gas code listings are available.
Noise-reduction features: The outdoor sound rating on this unit is 91 dB. The rating is tested in accordance with Air-Conditioning, Heating, and Refrigeration Institute (AHRI) Standard 270.
IAQ equipment supported: Foil-faced insulation is encapsulated throughout the entire unit to minimize airborne fibers in the airstream. An easily removable filter makes regular replacement a trouble-free task for the occupant. The noncorrosive plastic condensate drain pan is sloped to keep runoff from pooling, which reduces the potential for mold and bacteria growth in the unit. The system conforms to ASHRAE-62 standards.
Thermostat compatibility: The unit utilizes a rooftop unit controller (RTU-C) as part of the ClearControl system, which allows for real-time monitoring and communication. This solid-state microprocessor-based control board provides flexible control.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: Rheem’s eSync integration technology (potable water heating) control board is connected to the RTU-C, which allows potable water heat recovery during air conditioning mode. Working as part of a Rheem H2AC system, the rooftop unit provides potable hot water by rejecting the heat from the condenser coil into a water heat exchanger. The preheated water is then sent to a storage tank, where it can be heated on demand to the desired final temperature much more efficiently.
Warranty information: Rheem will furnish a replacement for any part of this product that fails in normal use and service within the applicable periods stated in accordance with the terms of the limited warranty. The RHKL-D commercial three-phase unit comes with five-year compressor, one-year parts, 10-year factory heat exchanger, and 20-year stainless steel heat exchanger warranties.
Special installation requirements: Rheem’s high-efficiency tankless or commercial tank water heaters and storage tanks are recommended for the greatest energy-savings potential.
Contact: Rheem Mfg. Co., 770-351-3018; www.rheem.com.
eProduct 209

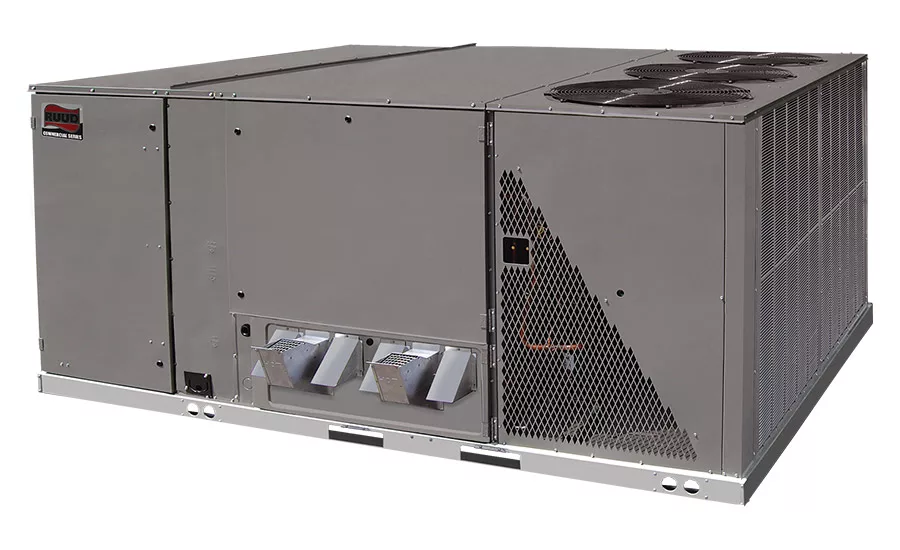

Ruud
Model: H2AC™ rooftop unit featuring eSync™ integration
Footprint (in inches): 125 (length) by 86 (width) by 58 (height)
Serviceability features: The unit features a slide-out indoor fan assembly and a hinged major access door with heavy-duty gasketing. The single-slab-, single-pass-designed evaporator and condenser coils facilitate easy cleaning. This unit also has externally mounted refrigerant gauge ports; colored/labeled wiring; and the ClearControl system for real-time system monitoring, diagnostics, and communication.
Technical support: Support is available through authorized Ruud distributors’ district service coordinator (DSC) personnel. Additional factory support is accessible through a network of Ruud district technical representatives (DTR) assigned to cover a geographic territory. DTRs provide field tech support, as needed, to DSC personnel and contractors at the job site. More information is available 24/7 at myruud.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; an accessories list; tech tips; submittal sheets; service notes; charging information; a use and care manual; a job site information sheet (JSIS); and compressor and gas code listings are available.
Noise-reduction features: The outdoor sound rating on this unit is 91 dB. The rating is tested in accordance with Air-Conditioning, Heating, and Refrigeration Institute (AHRI) Standard 270.
IAQ equipment supported: Foil-faced insulation is encapsulated throughout the entire unit to minimize airborne fibers in the airstream. An easily removable filter makes regular replacement a trouble-free task for the occupant. The noncorrosive plastic condensate drain pan is sloped to keep runoff from pooling, which reduces the potential for mold and bacteria growth in the unit. The system conforms to ASHRAE-62 standards.
Thermostat compatibility: The unit utilizes a rooftop unit controller (RTU-C) as part of the ClearControl system, which allows for real-time monitoring and communication. This solid-state microprocessor-based control board provides flexible control.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: Ruud’s eSync integration technology (potable water heating) control board is connected to the RTU-C, which allows potable water heat recovery during air conditioning mode. Working as part of a Ruud H2AC system, the rooftop unit provides potable hot water by rejecting the heat from the condenser coil into a water heat exchanger. The preheated water is then sent to a storage tank, where it can be heated on demand to the desired final temperature much more efficiently.
Warranty information: Ruud will furnish a replacement for any part of this product that fails in normal use and service within the applicable periods stated in accordance with the terms of the limited warranty. The RHKL-D commercial three-phase unit comes with five-year compressor, one-year parts, 10-year factory heat exchanger, and 20-year stainless steel heat exchanger warranties.
Special installation requirements: Ruud high-efficiency tankless or commercial tank water heaters and storage tanks are recommended for the greatest energy-savings potential.
Contact: Ruud, 770-351-3018; www.ruud.com.
eProduct 210
Samsung HVAC
Model: DVM chiller, AG010KSVAFHAA, AG010KSVAJHAA, AG015KSVAFHAA, AG015KSVAJHAA
Footprint (in inches): 71 (length) by 30 (width) by 67 (height)
Serviceability features: Manufacturer did not specify.
Technical support: Support is available at 888-699-6067, and technical downloads are available at www.dvmdownload.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: This chiller features a wide water temperature operating range of 14°-131°F. Its modular design allows connection of a single DVM chiller or multiple DVM chillers for systems up to 240 ton. Advanced operation pattern options allow a contractor to better apply the DVM chiller to various applications.
Warranty information: Ten-year parts, 10-year compressor, and one-year limited labor warranties are available.
Special installation requirements: For installation requirements, review the technical data books and installation manuals available at www.dvmdownload.com.
Contact: Samsung HVAC, 888-699-6067; www.samsunghvac.com.
eProduct 211

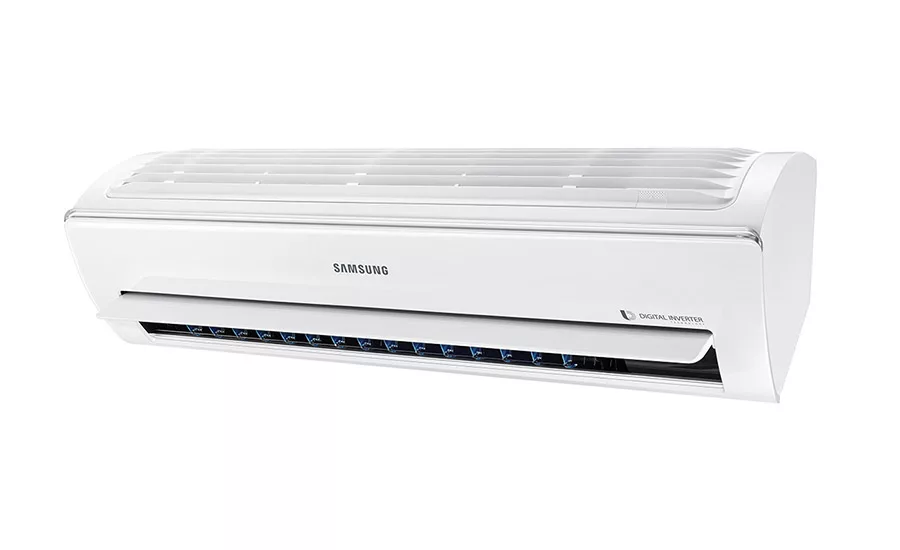

Model: Smart Whisper Max Heat single-zone mini-split system
Footprint (in inches): 31 (length) by 11 (width) by 22 (height)
Serviceability features: The indoor unit provides easy access to wire, pipe, and drain connections via a front access panel, which simplifies installation and service. In the event of system issues, error codes are displayed on the front of the unit for easy diagnostics.
Technical support: Support is available at 888-699-6067, technical downloads are available at www.dvmdownload.com, and online training is available at www.samsunghvac.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: The compressors are naturally quiet due to soft-start capability along with sound-absorbing jackets. Condenser fans are also extremely quiet with brushless dc (BLDC) fan motors and an optimized fan-blade design.
IAQ equipment supported: Electrostatic filters come standard with all wall-mounted indoor units.
Thermostat compatibility: The unit requires a special thermostat. Thermostat adapters will be available by the end of the fourth quarter 2016 that allow the unit to connect to standard thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: Heating performance is available at minus 13°F outside ambient temperatures. An integral base-pan heater ensures proper drainage during defrost cycles. A standard Wi-Fi control allows an end user to control the system via Samsung's Smart Home app. More than 100 percent heating capacity is offered at 5°F. Wired controllers with scheduling are also available.
Warranty information: Ten-year parts, 10-year compressor, and one-year limited labor warranties are available. Registration is required for the warranties to take effect.
Special installation requirements: Manufacturer did not specify.
Contact: Samsung HVAC, 817-838-6066; www.samsunghvac.com.
eProduct 212
Tempstar
Model: RGS210-336 packaged gas/electric rooftop
Footprint (in inches): 128-158 (length) by 87 (width) by 49-57 (height)
Serviceability features: Units have provisions for through-the-bottom power entry. All connections and troubleshooting points are conveniently located on the master terminal board. Access panels include easy-grip handles, and the unit offers a no-strip screw feature. An IGC solid-state control provides on-board diagnostics with an LED error-code designation, burner control logic, and energy-saving indoor fan motor delay.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.gotempstar.com.
Noise-reduction features: Quiet and efficient operation is provided by belt-driven evaporator fans.
IAQ equipment supported: The unit supports 2-inch return air filters, and an optional economizer control accepts a CO2 sensor for IAQ capability. A duct-mounted CO2 sensor accessory is available for field installation to provide outdoor air for demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Dedicated vertical or horizontal airflow duct configuration models are available. This ASHRAE 90.1-compliant unit features high- and low-pressure switches. Its scroll compressor has internal line-break overload protection. Three heat options (high, medium, low), stainless steel heat exchangers, and a high-static indoor fan are factory-installed options.
Warranty information: Fifteen-year limited optional stainless steel heat exchanger, 10-year limited aluminized heat exchanger, five-year limited compressor, and one-year limited all-other-parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.gotempstar.com.
eProduct 213
Model: RHH036-072 packaged heat pump
Footprint (in inches): 74-116 (length) by 46-63 (width) by 33-57 (height)
Serviceability features: Access panels with easy-grip handles provide quick access to the blower motor, control box, and compressors. A no-strip-screw feature has superior holding power and guides screws into position while preventing the screw from stripping the unit’s metal. A terminal board facilitates simple safety-circuit troubleshooting, and the unit boasts a simplified control-box arrangement.
Technical support: Factory-trained technical service advisors (TSAs) on staff at local distributors are available to provide technical assistance and troubleshooting. ICP technical training is also available at field schools held at participating distributor locations.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and product information are available online at www.gotempstar.com.
Noise-reduction features: This heat pump’s cabinet is fully insulated.
IAQ equipment supported: The unit supports 2-inch return air filters. An optional economizer control accepts a CO2 sensor for IAQ capability, and a duct-mounted CO2 sensor accessory is available for field installation to provide demand-controlled ventilation (DCV) capability.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Energy Star-qualified units are field-convertible for vertical or horizontal airflow duct configuration and feature high- and low-pressure switches. Its scroll compressor has internal line-break overload protection. A high-static indoor fan and economizers are available as factory-installed options.
Warranty information: Five-year limited compressor and one-year limited all other parts warranties are available.
Special installation requirements: None.
Contact: International Comfort Products, 615-777-8588; www.gotempstar.com.
eProduct 214
Tetco

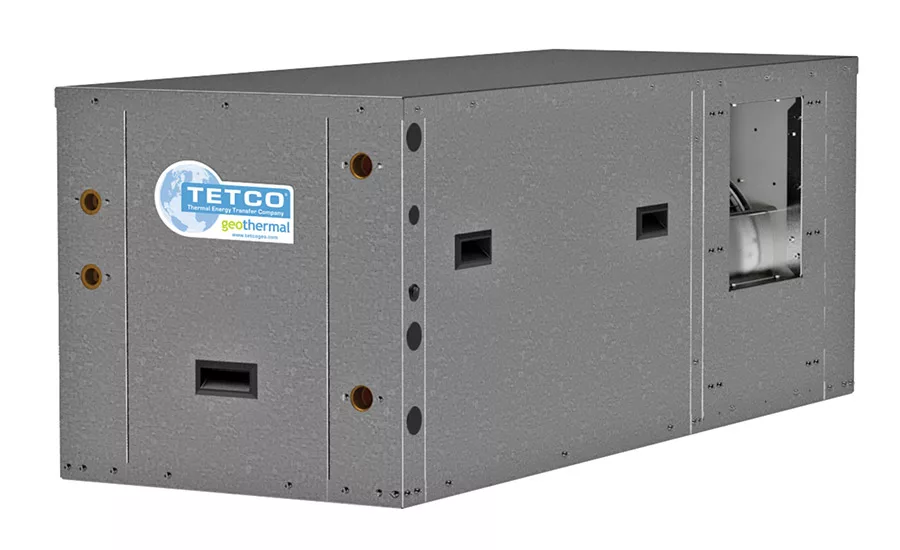

Model: ION Series, TZT 024 072, compact, horizontal, packaged, ground-source heat pump
Footprint (in inches): 52-61 (length) by 22-24 (width) by 19-21 (height)
Serviceability features: A hinged control box swings open or is removable for access to internal components. Electrical and water connections are located on the front-corner post. A refrigerant test port is accessible via the front panel, and all exterior service panels are removable. A sealed air-handling compartment allows setup and service during unit operation. The desuperheater switch is externally mounted.
Technical support: Support is available 24/7 at 618-664-9010 or technicalservices@enertechgeo.com. Installation, service, marketing, and sales training can be arranged by contacting Enertech Geothermal University at 618-664-3255, training@geothermaluniversity.com, or by visiting www.geothermaluniversity.com.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; submittal data sheets; and numerous installation and technical training videos are available for viewing and download via www.geothermaluniversity.com.
Noise-reduction features: This heat pump’s double-mount compressor system featuring elastomeric compressor vibration-absorption pads and rubber grommets provide exceptional sound and vibration insulation. High-density, UL GreenGuard-certified, closed-cell foam insulation protects against mold and improves sound absorption. Its enhanced shock-loop refrigerant piping design reduces vibration.
IAQ equipment supported: A field-installed accessory filter rack accepts a 1- or 2-inch disposable pleated filter. Lifetime washable electrostatic filters or electronic air cleaners (EACs) with disposable media packs are available, as well. Enertech products are compatible with most other air filtration, humidification, or purification systems.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: ZS/ZT models feature a field-configurable side or end discharge, an all-aluminum microchannel air coil (MCHX), foam-enclosed brazed-plate heat exchanger (BPHE), sensor and flow-switch freeze protection, and reduced refrigerant charge. The compact, lightweight design allows for easy installation in 24-inch-on-center attic trussing or suspended ceilings.
Warranty information: Standard commercial one-year parts-only coverage is available. Extended warranty options are available, including five-year compressor-only, five-year refrigerant parts-only, and five-year internal parts-only.
Special installation requirements: Its small footprint, front-corner, post-mounted plumbing and electrical connections, and field-selectable discharge air pattern are ideal for retrofit or new build applications. The unique application of brazed-plate and microchannel heat exchangers in a compact, efficient, and technician-friendly package provides excellent performance and reliability.
Contact: Enertech Global LLC, 618-664-9010; www.enertechgeo.com.
eProduct 215
Thermal Solutions

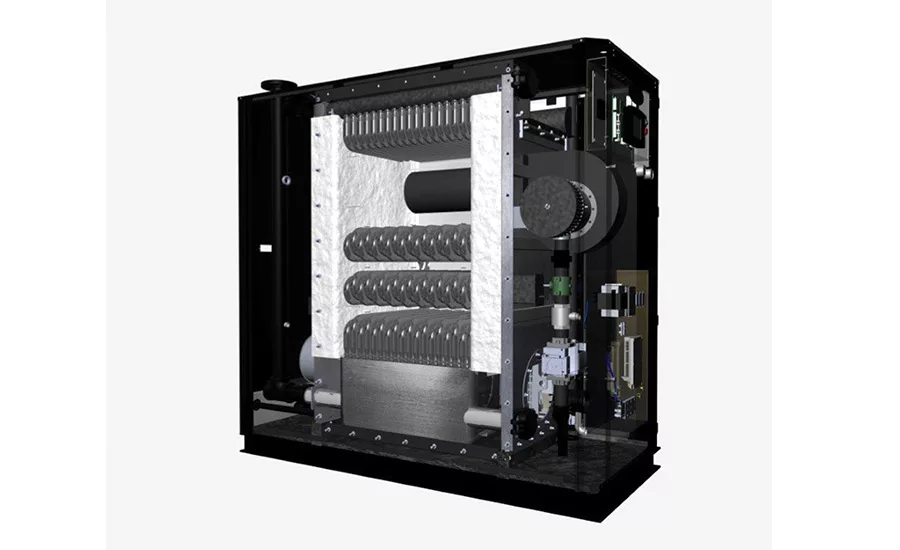

Model: Arctic condensing boilers
Footprint (in inches): Manufacturer did not specify.
Serviceability features: This innovative line of boilers delivers reliability and longevity to condensing space, boasts 95 percent thermal efficiency, and features a number of unique technologies. The non-welded heat exchanger has a lifetime warranty and is field-repairable. Available in packaged or knockdown configuration, this line is appropriate for variable-primary pumping systems.
Technical support: Manufacturer did not specify.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: Manufacturer did not specify.
Additional features: This field-repairable condensing boiler is available in knockdown configuration, which allows it to fit where others cannot.
Warranty information: The lifetime Shockproof Seal of Certainty — lifetime sealing tube to header, 10-year flue collector, and one-year parts warranties are available.
Special installation requirements: Manufacturer did not specify.
Contact: Thermal Solutions, 717-239-7605; www.thermalsolutions.com.
eProduct 216
Thermific Velox
Model: N1500VX boiler
Footprint (in inches): 29 (length) by 27 (width) by 62 (height)
Serviceability features: This boiler's design makes it easy to reach all the components for maintenance and cleaning without using a ladder. Quick-turn fasteners allow fast access to a the boiler’s interior.
Technical support: Support is available 8 a.m. to 5 p.m. Eastern time at 570-476-7261. Local technical support is also available through all Harsco Industrial Patterson-Kelley manufacturer's representatives. Visit www.harscopk.com to locate a local representative.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: The unit operates below Occupational Safety and Health Administration (OSHA) noise standards
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats. Its integrated NURO boiler control is capable of communicating with BACNet, LonWorks, and ModBus systems.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: This boiler features a state-of-the-art radial copper-fin tube heat exchanger with fins machined from solid copper and operates with up to 88 percent efficiency. The P-K NURO touchscreen control easily interfaces with building management systems (BMSs) and provides long-term upgradability. The system is compact and fits through 30-inch doorways. Additionally, the unit is CSA-certified and ASME-approved.
Warranty information: The unit is guaranteed for 10 years against thermal shock, five years for the heat exchanger and burner, and one year against defects in materials and workmanship. Contact a local representative for information on extended warranties.
Special installation requirements: Installation is simple. The boiler fits through a 32-inch doorway, which makes it a good fit for inaccessible retrofits. It includes five connections for installation, and it can be installed on combustible floors. Controller software upgrades can be installed easily via USB, and its sealed combustion design eliminates large louvers and allows installation in a negative pressure. This unit qualifies as a Category I, nonpositive, noncondensing appliance.
Contact: Harsco Industrial Patterson-Kelley, 570-476-7262; www.harscopk.com.
eProduct 217
Trane

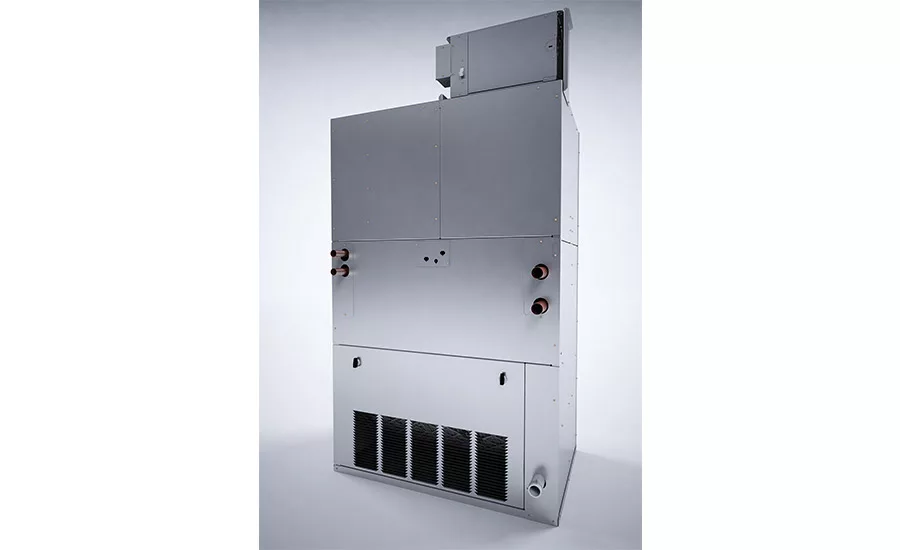

Model: BCCD compact vertical blower coil
Footprint (in inches): 18 (length) by 28 (width) by 52 (height)
Serviceability features: Service panels are located in the front of the unit. A removable sloped drain pan, non-corrosive drain pan, and coils are mounted above the drain pan. Other features include single-side service access, tool-less filter removal, and an electronically commutated motor (ECM) that improves reliability and eliminates belt and sheave maintenance and replacement.
Technical support: Support is available by contacting a local sales and service office.
Technical support materials: Installation, operation, and maintenance manuals; a parts list; specification sheets; startup instructions; and an owner’s manual are available.
Noise-reduction features: An insulated enclosure provides a quiet design, and variable-speed technology provides comforts beyond air temperature and humidity. Variable-speed technology slowly adjusts the fan speed to meet a space's changing needs. This soft-ramp technology maintains low fan speed and moderated airflow, which delivers quiet system performance.
IAQ equipment supported: It includes MERV-13 filters, and its variable-speed technology improves dehumidification. Reheat coils are available for dehumidification. It also includes a removable, noncorrosive, dual-sloped drain pan and foil-faced insulation.
Thermostat compatibility: This unit is compatible with most thermostats and can be provided with integrated controls.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Integrated, factory-programmed controls maximize the unit's performance and efficiency through single-zone variable air volume (VAV) control. The VelociTach motor control board comes standard and features an LED display and manual controls. This provides real-time feedback without the inconvenience of needing a remote service tool.
Warranty information: A one-year parts warranty comes standard. Up to five-year extended warranties on parts and labor are optional.
Special installation requirements: A thermostatic expansion valve (TXV) is required for units with direct exchange (DX) cooling or heat pump applications.
Contact: Trane, an Ingersoll Rand brand, 515-978-3585; www.trane.com.
eProduct 218

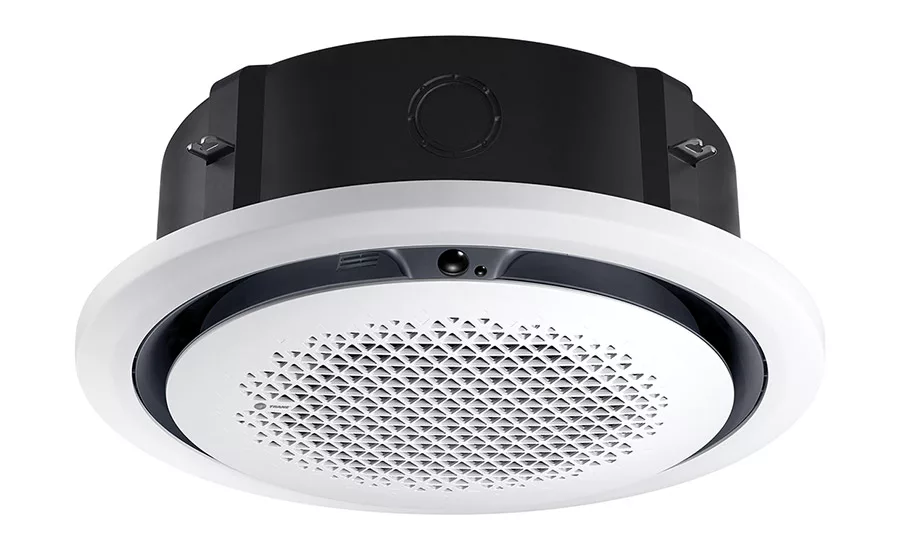

Model: ProSpace Circular Cassette, 4TVS0009-48
Footprint (in inches): 40 diameter (width) by 13 (height).
Serviceability features: The unit’s panel and grille can be simply removed by rotating them clockwise. Building staff is able to perform routine cleaning of the filter to help maintain clean, healthy airflow in the space.
Technical support: Support is available by contacting a local Trane sales office.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; and an owner’s manual are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: The circular 360-degree design does require blades to direct airflow, which means there is no blade surface area to become stained or contaminated with repeated use. This results in the distribution of clean, healthy air.
Thermostat compatibility: Manufacturer did not specify.
Replacement parts compatibility: The system does not share replacement parts with other models.
Additional features: The circular cassette delivers reliable, even heating for single spaces. Its unique 360-degree circular airwave design helps to eliminate drafts and uneven temperatures throughout a space. Attractive aesthetics blend easily into interior spaces for visual appeal, and its blade-free design helps provide a clean, healthy environment for building occupants.
Warranty information: Manufacturer did not specify.
Special installation requirements: None.
Contact: Trane, an Ingersoll Rand brand, 515-978-3585; www.trane.com.
eProduct 219
WaterFurnace

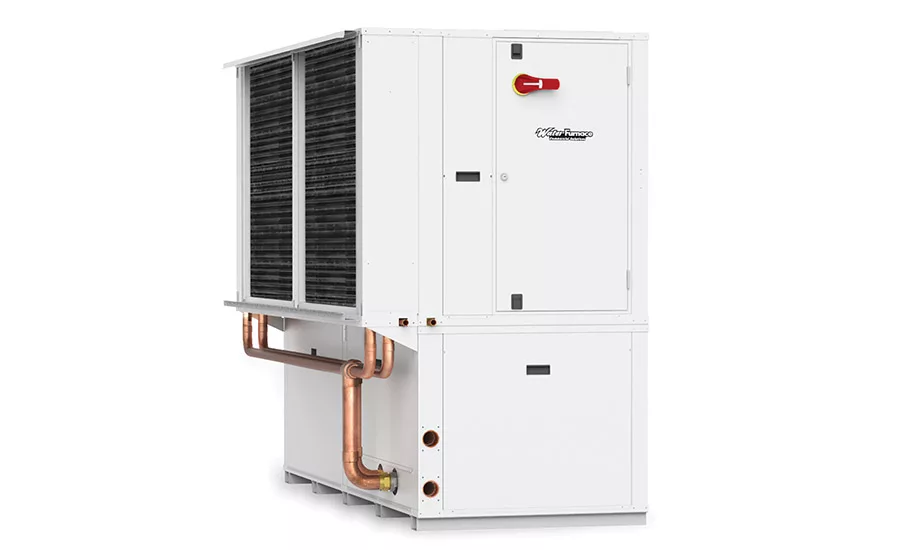

Model: Envision water-source heat pump
Footprint (in inches): 88 (length) by 34 (width) by 70 (height)
Serviceability features: This heat pump features a heavy-duty, hinged service door for ease of service and installation. It was designed with the technician in mind to provide convenient, clear wiring with plenty of working space. The optional Aurora UPC control provides energy, refrigerant, and performance monitoring; humidity and energy management; and service diagnostics.
Technical support: Support is available at 800-257-5667.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; a troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: The unit’s variable-frequency drives (VFD) provide smooth start/stop operation to eliminate noise and vibration in the cabinet. The units also have an insulated divider panel between the air-handling section and the compressor section to minimize the transmission of compressor noise.
IAQ equipment supported: A washable air-handler insulation surface provides cleanability to further enhance IAQ.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: The Envision 30-ton unit offers efficiencies that exceed ASHRAE 90.1 standards. It features a modular, take-apart design that can be moved into a building in two different sections, which provides a reduced weight, smaller footprint, and improved maneuverability. The unit also includes a VFD with an LCD display.
Warranty information: An 18-month parts-only warranty is available.
Special installation requirements: Manufacturer did not specify.
Contact: WaterFurnace Intl. Inc., 260-478-5667; www.waterfurnace.com.
eProduct 220
Weil-McLain
Model: Evergreen 399 boiler
Footprint (in inches): 23 (length) by 23 (width) by 45 (height)
Serviceability features: For the contractor, installer, and/or service provider, the Evergreen has an easy-to-understand graphical user interface and makes programming and monitoring operations simple, especially for installation and maintenance. A setup wizard is built in to help installers customize the boiler system to the site-specific needs.
Technical support: Support is available at www.weil-mclain.com. Additional support is available Monday to Friday at 800-654-2109 for the following departments: consumer relations, 7:30 a.m. to 4 p.m. Central time; distributor support, 7 a.m. to 4 p.m. Central time; technical service for contractors, distributors, architects, and engineers, 7 a.m. to 4 p.m. Central time or email wmtechnicalservices@weil-mclain.com; and warranty call center and product registration, 8 a.m. to 8 p.m. Eastern time.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; troubleshooting guide; specification sheets; startup instructions; an owner’s manual; and submittal data sheets are available.
Noise-reduction features: Manufacturer did not specify.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: Manufacturer did not specify.
Additional features: For light commercial users requiring a multiple boiler setup, the Evergreen features ZoneStacking™, which offers up to 24-zone capability without an additional external third-party control. With this advanced feature, the boiler maintains efficiency through lead-lag rotation and balanced heat loading, which reduces installation costs and time while increasing reliability.
Warranty information: A 10-year heat exchanger warranty is limited from the product's installation date. A one-year limited parts warranty is available from the date the product is installed for all parts except the heat exchanger.
Special installation requirements: Manufacturer did not specify.
Contact: Weil-McLain, 630-560-3707; www.weil-mclain.com.
eProduct 221
The Whalen Co.
Model: Whisperpack™ Series water-source heat pump
Footprint (in inches): 21 (length) by 16 (width) by 88 (height)
Serviceability features: Supply openings are available in multiple locations. The supply grille’s aluminum construction minimizes future maintenance and eliminates oxidation from condensation. An inner service panel is removable, which allows access to the control wiring and internal piping. The plug-in-type fan and motor assembly is easily removed through the return-air opening with electronically commutated motor (ECM) technology
Technical support: Support is available 8:30 a.m. to 5 p.m., Monday to Friday, at 443-258-2800.
Technical support materials: Wiring diagrams and installation, operation, and maintenance manuals are available.
Noise-reduction features: Water hoses connect the chassis to the supply and return water piping, which isolates sound from the building piping system. An acoustical panel dampens sound, and the filter can be removed without the need for tools. The refrigeration chassis uses an insulated compressor compartment and vibration isolation to further reduce noise.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system utilizes some shared parts and some unique parts.
Additional features: Whisperpack hybrid heat pump units use a hydronic heating coil instead of reversing the refrigerant cycle to allow for energy savings by turning the compressor off and diverting the condenser water to a heating coil. The refrigeration chassis uses a versatile removable-floating design with insulated compressor compartment and vibration isolation.
Warranty information: Fifteen-month cabinet, one-year chassis, five-year compressor, and five-year refrigeration-circuit warranties are available.
Special installation requirements: Manufacturer did not specify.
Contact: The Whalen Co., 410-822-9200; www.whalencompany.com.
eProduct 222

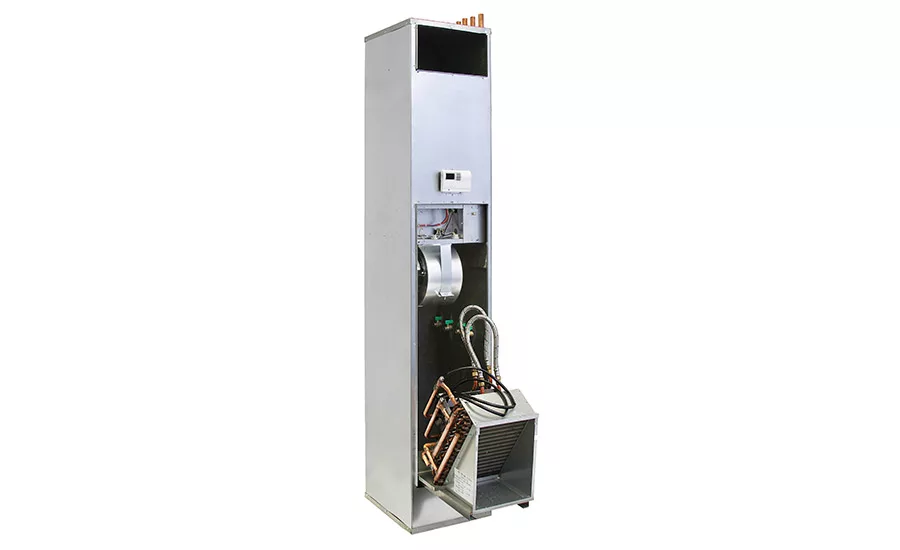

Model: WRX vertical stack fan coil with slide-out chassis
Footprint (in inches): 18 (length) by 16 (width) by 88 (height)
Serviceability features: The chassis slides out easily (just remove four screws and slide out) for removal or to gain access to the valve package, which reduces commissioning time, provides easier access to the drain pan and internal components, and simplifies maintenance with minimal tenant disruption
Technical support: Support is available 8:30 a.m. to 5 p.m. Eastern time, Monday to Friday, at 443-258-2800.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; and specification sheets are available.
Noise-reduction features: Flush-mounted return-air panels are lined with sound-absorbing insulation to help attenuate noise from the fan assembly. Vibration isolation pads, which are attached to the bottom of the cabinet, dampen vibration from the fan motor.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: Manufacturer did not specify.
Additional features: The unit’s slide-out chassis can be shipped separately from the cabinet, which reduces the risk of installation damage and keeps the coil clean during construction. With a very small footprint, WRX customization capabilities include cabinet height, riser locations, handling and discharge arrangements, and sizing, so it can be installed and operated in less time.
Warranty information: Two-year WRX fan coil and 15-month heat pump warranties are available.
Special installation requirements: Manufacturer did not specify.
Contact: The Whalen Co.; www.whalencompany.com.
eProduct 223
Yanmar America

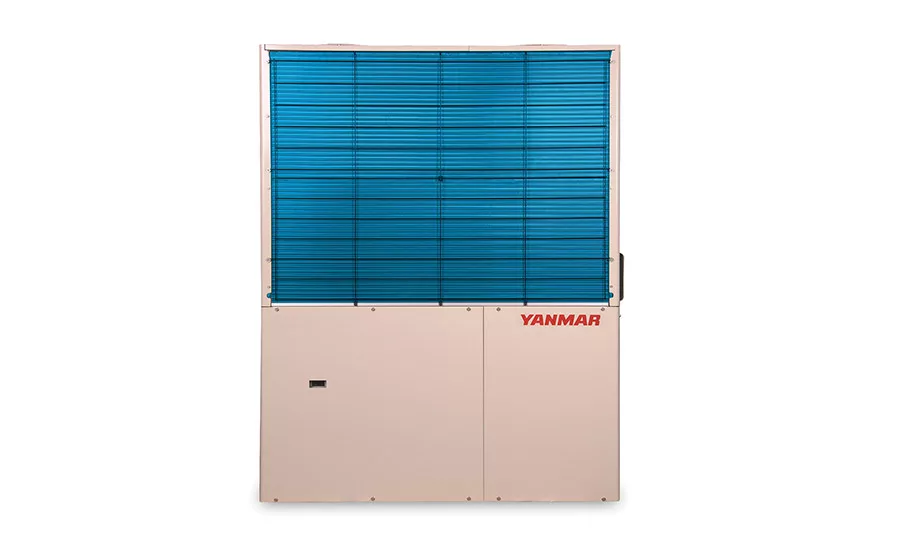

Model: Gas heat pump, NFZP
Footprint (in inches): 32 (length) by 67 (width) by 86 (height)
Serviceability features: Features include a diagnostic display and an optional remote monitoring system, which sends emails for any system errors and required maintenance and simplifies troubleshooting.
Technical support: Factory technical support is available 24/7 at 770-608-8090. On-site factory support is available for design and installation assistance, commissioning, and technical support during normal business hours.
Technical support materials: Specification sheets and submittal data sheets are available.
Noise-reduction features: The unit is designed to operate quietly. The leading edge of the fan blade is serrated to provide high-performance fan volume and airflow with minimal sound. The low sound level allows these outdoor condensing units to be installed on balconies and near windows and rooftop amenities, which maximizes a building’s usable space without disrupting its ambiance.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unit requires a special thermostat.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: The heat-recovery or three-pipe model allows for simultaneous heating and cooling across multiple zones. Engine-heat-recovery technology allows for fast heating. The use of natural gas lowers emissions. No additional building upgrades are required.
Warranty information: The condensing unit offers five-year/20,000-hours parts, one-year/4,000-hours labor, and seven-year/28,000-hours compressor warranties. A one-year parts warranty on the fan coil unit and indoor accessories. All scheduled maintenance must be completed according to the limited warranty statement.
Special installation requirements: Due to its natural gas engine, outdoor installation is recommended. The system's location should be taken into consideration with doors and windows being the main concern because of engine combustion.
Contact: Yanmar America, 770-877-9894; www.yanmar-es.com.
eProduct 224

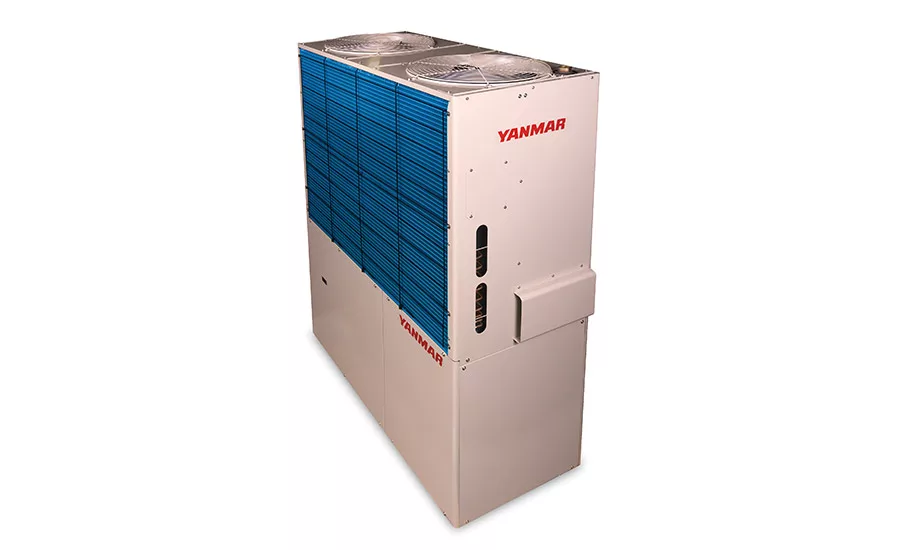

Model: Gas heat pump, NNCP
Footprint (in inches): 32 (length) by 67 (width) by 86 (height)
Serviceability features: A diagnostic display and optional remote monitoring system, which sends emails for any system errors and required maintenance.
Technical support: Factory technical support is available 24/7 at 770-608-8090. On-site factory support is available for design and installation assistance, commissioning, and technical support during normal business hours.
Technical support materials: Specification sheets and submittal data sheets are available.
Noise-reduction features: The unit is designed to operate quietly. The leading edge of the fan blade is serrated to provide high-performance fan volume and airflow with minimal sound. The low sound level allows these outdoor condensing units to be installed on balconies and near windows and rooftop amenities, which maximizes a building’s usable space without disrupting its ambiance.
IAQ equipment supported: Manufacturer did not specify.
Thermostat compatibility: The unite requires a special thermostat.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Engine heat recovery technology helps heat a space quickly. A modular system allows a user to heat or cool only the zones that need it. Natural gas helps lower emissions, and no additional building upgrades are required.
Warranty information: The condensing unit boasts a five-year/20,000-hours parts warranty; a one- year/4,000-hours labor warranty; and the compressor carries a seven-year/28,000-hours warranty. A one-year parts warranty is available on the fan coil unit and indoor accessories. All scheduled maintenance must be completed according to the limited warranty statement.
Special installation requirements: Due to its natural gas engine, outdoor installation is recommended. The system’s location should be taken into consideration with doors and windows being the main concern because of engine combustion.
Contact: Yanmar America, 770-877-9894; www.yanmar-es.com.
eProduct 225
York
Model: Direct Fit™ packaged heat pumps: XYE04-09 (mid-efficiency heat pump) and XXE12 (standard efficiency heat pump)
Footprint (in inches): 74-87 (length) by 49-62 (width)
Serviceability features: Setup, optimization, and monitoring is easy with standard Simplicity Smart Equipment controls, which is a next-generation control system offering an optional mobile access portal (MAP) gateway for access via a smartphone, tablet, laptop, or remote PC. Optional fault detection and diagnostics (FDDs) save contractors time by providing detailed alerts.
Technical support: Support is available through York distributors.
Technical support materials: Wiring diagrams; installation, operation, and maintenance manuals; a parts list; specification sheets; and startup instructions are available.
Noise-reduction features: The system is designed to operate as quietly as 79 dBA.
IAQ equipment supported: Rooftop units are available with an economizer and fresh-air and relief damper options. Three static drive options provide airflow versatility up to 2-inch external static pressure (ESP). Two- or 4-inch field-convertible air filters and epoxy coil-coating options are also available.
Thermostat compatibility: The unit is compatible with most thermostats.
Replacement parts compatibility: The system shares replacement parts with other models.
Additional features: Heat pumps feature an exact-fit replacement design that matches the footprints of other units, which helps to reduce installation time, cost, and complexity. The units are available with adjustable defrost and three heat capacities, two cabinet heights and footprint sizes, and a choice of cooling or electric-heat configurations.
Warranty information: One-year limited complete unit and five-year limited compressor and electric heater element warranties are available.
Special installation requirements: Heat pumps are designed to provide a trouble-free match to the footprints of other units without the need for a curb adapter.
Contact: Johnson Controls Inc., 877-874-7378; www.york.com/directfit.
eProduct 226
Publication date: 10/3/2016
Want more HVAC industry news and information? Join The NEWS on Facebook, Twitter, and LinkedIn today!
Report Abusive Comment
