Huntingdon Fusion Techniques HFT®: Purging System
Company: Huntingdon Fusion Techniques HFT®

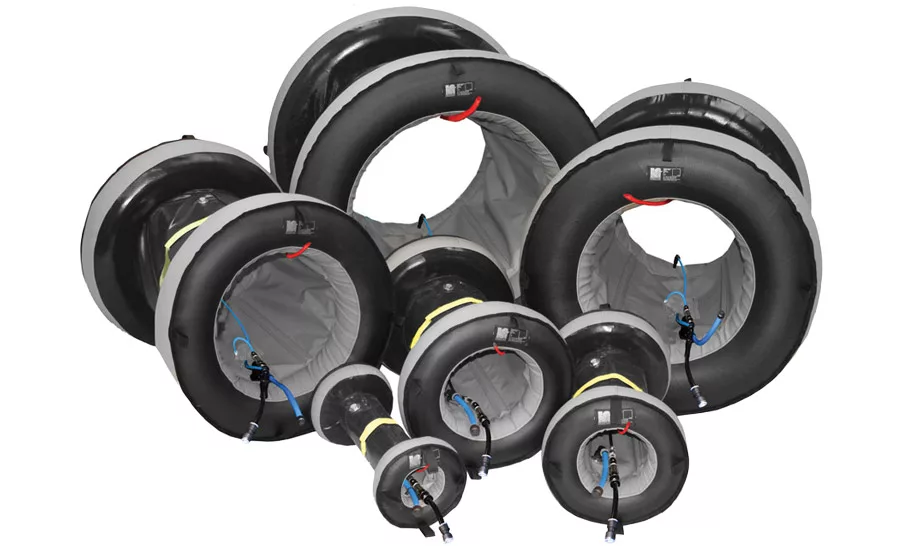

Product: QuickPurge® System
Description: These systems are manufactured for 6- to 96-inch pipe diameters (150-2,440 mm) and are equipped with a QuickFit coupling for the purge/inflation hose. The QuickFit coupling is fitted with an O-ring for gas-tight sealing and a stainless steel collet to hold the tube mechanically tight. The coupling is fitted with an anti-release circlip to prevent parts from accidentally separating inside the pipe. Using IntaCal® combined with the integrated PurgeGate® device makes it possible to safely inflate the dams with argon gas and purge the space between the dams where the weld joint is located. All systems are manufactured as standard with a hose for connecting a Weld Purge Monitor®, which can read oxygen levels down to 10 ppm.
Contact: 800-431-1311; www.huntingdonfusion.com
