Company: NOARK Electric (North America)

Product: B1NQT

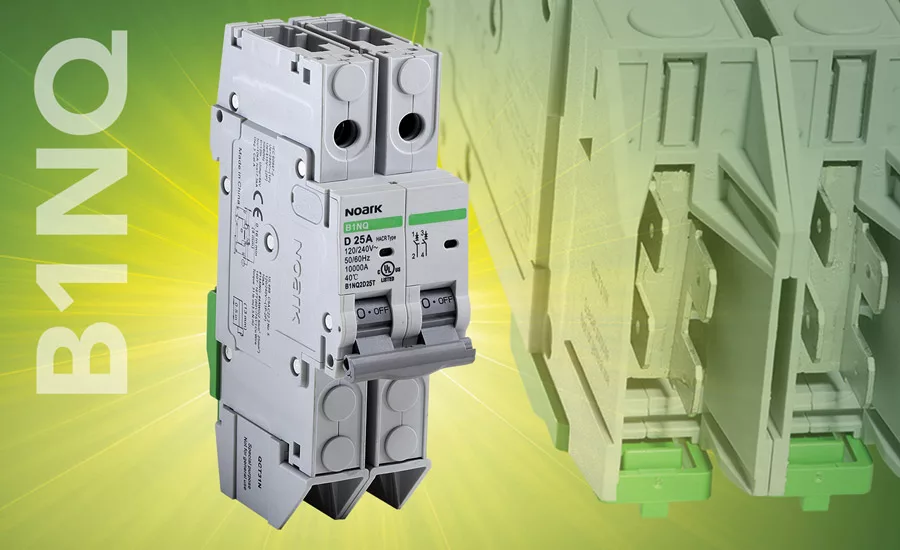

Description: NOARK introduced the latest edition to its B1N miniature circuit breaker family: the UL 489 B1NQT. This recyclable, quick-connect circuit breaker is available in three curves (B, C, and D), ranges 0.5-63 A, and has an optional detachable shield designed to make installation more efficient. The B1NQT is compliant with UL/CSA/IEC standards for branch circuit protection in commercial and residential applications. The current-limiting unit is thermal-magnetic and protects against short circuit and overload conditions. The 1- and 2-pole breaker, offered at 120/240 vac and 60 vdc, provides optimum and efficient protection for branch and control circuits.
