Company: Posifa Technologies

Product: PAV5000

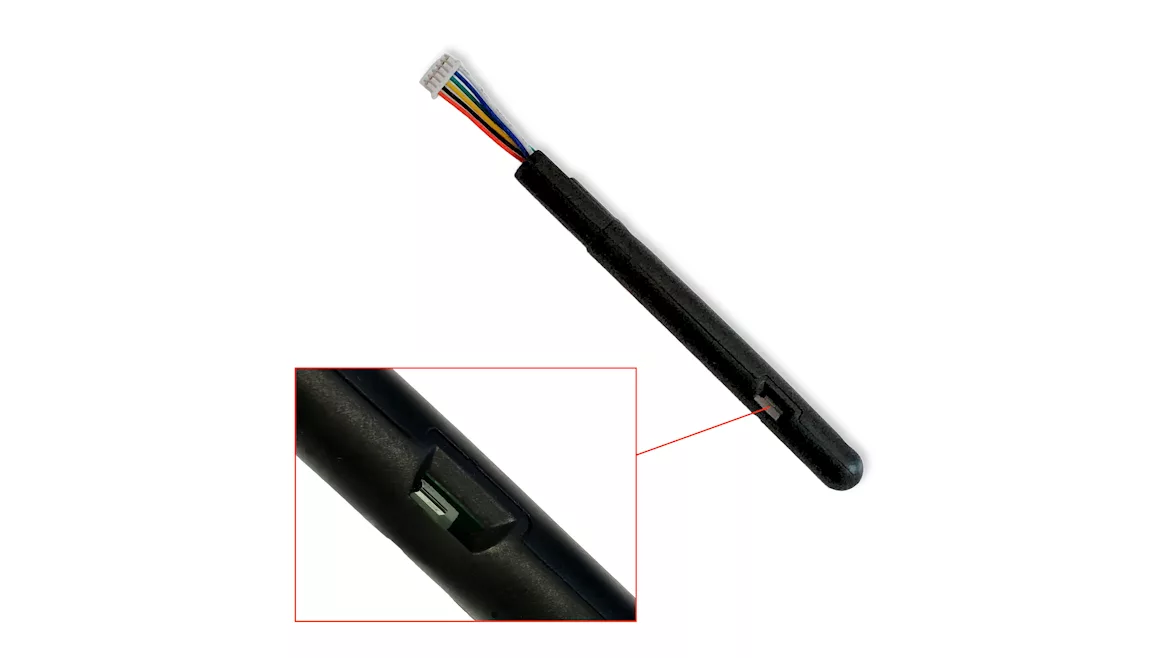

Description: The PAV5000 series MEMS anemometer sensor is fully calibrated and temperature-compensated for easy integration into portable anemometers and fixed in-duct air velocity monitors for the HVAC industry. The device provides accurate air speed and temperature measurement in a probe-style package, providing a comprehensive understanding of the environment. The PAV5000 features Posifa's third-generation thermal flow die, which uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow. The result is a signal-to-noise ratio, repeatability of 1 % FS, and accuracy of 5 % FS. Featuring a solid-state thermal isolation structure on the sensor die, the anemometer eliminates the need for surface cavities or fragile membranes used in competing technologies, making the device resistant to clogging and pressure shock. With no moving parts, the anemometer is not subject to mechanical failure and its performance will not degrade over time. While traditional thermistor-based anemometer sensors connect to the circuit via a thin thread, the PAV5000's sensing element consists of a solid silicon chip flush-mounted onto a PCB. This design protects the anemometer sensor from damage caused by vibration, dropping, or collisions. To extend battery life in portable anemometers, the device offers low power consumption from 4.8 VDC to 5.5 VDC and a supply current of 21 mA. The sensor offers a wide measurement range to 40 m/s (90 mph), extremely fast response times of 20 mS typical, and an I²C digital output via a connector-terminated wire harness. Samples and production quantities of the PAV5000 series are available now and may be ordered directly from Digi-Key.
