Company: Mitsubishi Electric Trane HVAC US

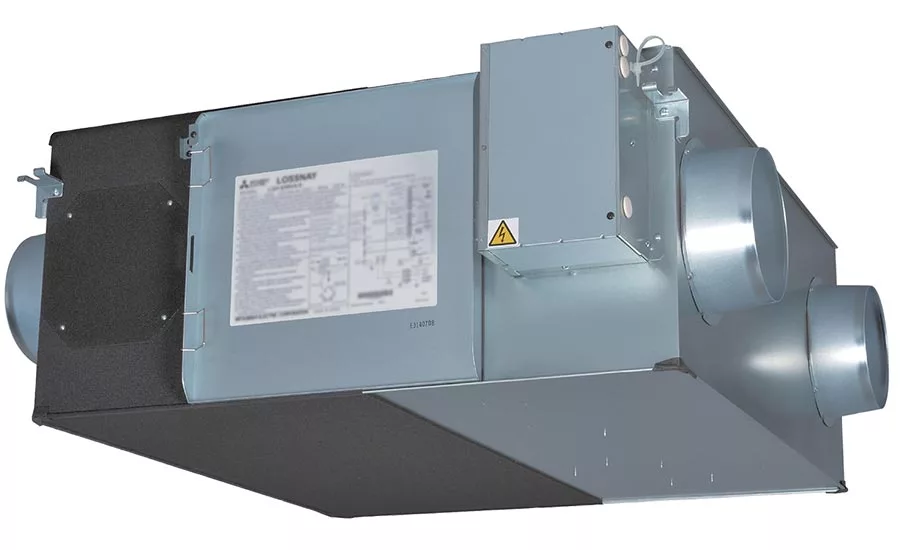

Product: Lossnay® RVX

Description: This product is a total heat-exchange ventilation system that uses a low-maintenance cross-flow energy-exchange core made of a specially-treated, cellulose-fiber membrane to perform temperature (sensible heat) and humidity (latent heat) exchange. It helps building owners, engineers, and architects meet ventilation requirements and improve IAQ. In addition to increasing efficiency by using DC fan motors, the RVX can use external input signals (e.g., from a CO2 sensor) to adjust fan speeds for demand-control ventilation. The product is designed to be fully compatible with existing central controllers and software including AE-200A, AE-50A, and EW-50A Centralized Controllers; TG-2000A software; LonWorks® interface; and BACnet® interface, increasing the scope of total system management. It can also be used independently or interlocked with other systems such as City Multi® R2- and Y-Series systems or S-Series and P-Series indoor units. The units feature a fixed-plate energy transfer component with no moving parts to maintain. They use less than 1 watt per cfm for fan high fan speed (4) and less than 0.5 watts per cfm for fan speeds 1, 2 and 3. The units utilize a free-cooling function that helps to reduce costs and boost efficiency, and they have an integrated bypass damper design that makes installation and integration with existing systems quick and efficient.
