Company: Ruskin

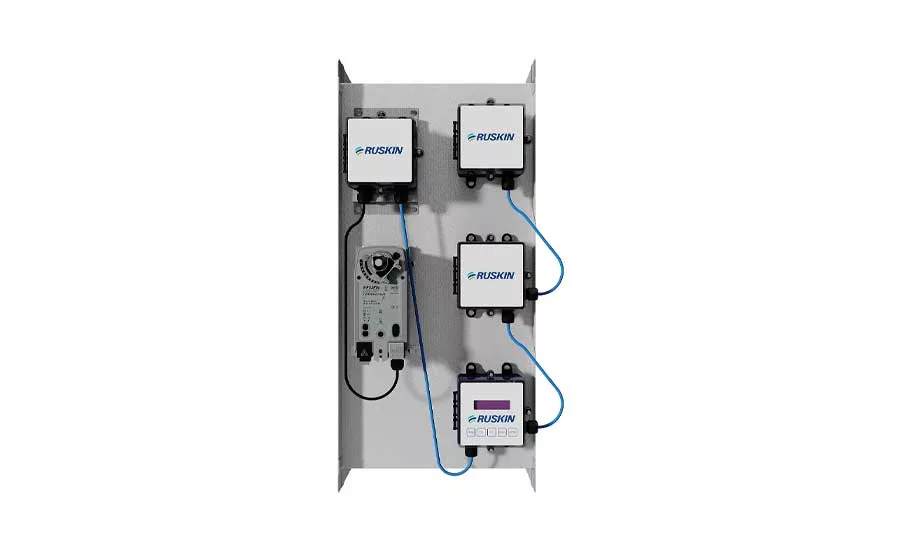

Description: The AIRFLOW-IQ combines the features of the Ruskin TDP05K air flow and temperature measuring probes with the Ruskin CD50 control damper and the Ruskin VAFB24-BAC RAMS Air Measurement BACnet actuator. The unit is factory-assembled and calibrated to provide effective setpoint airflow control from 0 to 5,000 FPM (0 to 25 m/s) using analog or BACnet interface. The ultra low-leak, class 1A-rated CD50 damper meets leakage requirements of the International Energy Conservation Code.

Features of the AIRFLOW-IQ include:

  • Thermal dispersion flow and temperature sensors
  • Factory-calibrated controller in nonvolatile EPROM
  • BACnet standard TDP05K and IP or MS/TP from actuator controller
  • Factory-mounted 24-volt modulating actuator(s)
  • Low-leak CD50 aluminum damper
  • Factory-mounted and wired
  • Single point 24-volt power connection
  • Temperature and altitude compensated

The AIRFLOW-IQ helps satisfy the requirements for minimum outside air as required by ASHRAE 62.1, 90.1 and 189.1, California Title 24, International Mechanical Code (IMC), and International Energy Conservation Code (IECC).

Contact: Ruskin
