Company: Leonardo DRS Inc.

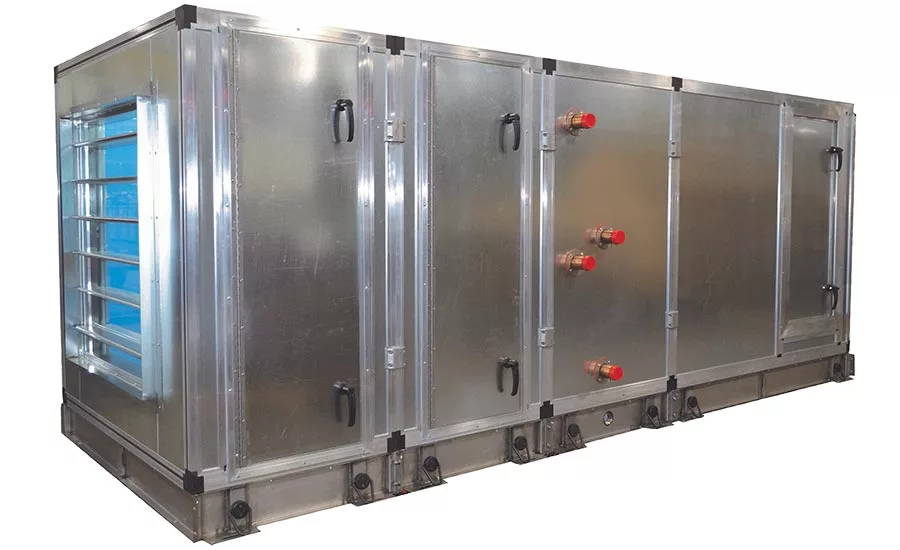

Description: The commercial modular air handling unit was developed by Leonardo DRS’ Marlo Coil business. The system features pre-engineered modules that can be configured to meet the needs of office buildings, retail spaces, manufacturing facilities, and other commercial buildings, with output ranges from 8,000 to 24,000 cfm. The unit can be shipped fully assembled or as individual modules, allowing for simplified transport to and through a building. Suitable for retrofit and new construction applications, the unit has a thermally efficient wall system, featuring galvanized steel wall panels with 2-inch-thick polyurethane foam insulation, integral thermal breaks, and full-perimeter, double-sealed gaskets. The frames are made of military-grade extruded aluminum, and the base system is constructed of 10-gauge stainless steel. Configurable components include air intake, filter, door, heating, cooling, and fan modules, plus a Stratomizer® dampered face and bypass coil that preheats and tempers outside air, protecting against freezing.
Contact: 636-677-6600; www.marlocoil.com; eProduct 184
