Plastic Cooling Tower Eliminates Maintenance Concerns for Punta Cana Airport
Modular tower also provides ease of installation
A dramatic rise in the popularity of the Dominican Republic as a resort destination has led to the expansion of the principal airport serving the island’s eastern provinces, Punta Cana International Airport.
With over 6,500 visitors arriving at this facility daily, Punta Cana serves as a destination for 53 different airlines from over 40 countries. The expanded international terminal (Terminal B) is the leading point of entry in number of arriving passengers in the Dominican Republic. It is also the country’s fastest growing airport with almost a 20 percent increase in traffic yearly, which indicates that in four years the aircraft traffic will double.
All of this activity necessitated a complete airport expansion and modernization. What was once a traditional Dominican-style airport with open-air terminals and roofs covered with palm fronds is transforming to a contemporary facility with enclosed, air conditioned buildings.
The newest of these is the 70,000-square-meter international terminal, which was recently completed. Since the structure is within a kilometer of the ocean off Punta Cana’s eastern shoreline, it was important to consider the choice of cooling towers that support the chillers for the terminal’s HVAC system.
Cooling tower operating efficiency and reliability were also issues because, with tropical temperatures averaging 80°F, the air conditioning system would be running year-round.
“Our primary concern was that rust and corrosion problems due to the salt air would plague a conventional metal-clad cooling tower,” said Jorge Miranda, business development manager at INICA, the mechanical contractor that specified and installed the entire HVAC system. “This would eventually interfere with running the air conditioning system and would also require expensive maintenance or replacement.”
Selecting an appropriate cooling tower was a special consideration due to the Dominican Republic’s year-round high ambient temperatures. Also, an engineered plastic tower would be effective in handling the stiff gusts of corrosive salt air that blows in off the surf surrounding Punta Cana.
Conversely, wind-blown salt and other corrosives are the archenemy of traditional metal-clad cooling towers, which can require maintenance such as re-sheeting, welding, and rebuilding within just a few years as a result.
Although INICA had considerable experience with HVAC and other mechanical systems, the firm had virtually no prior experience with cooling towers. With expertise in HVAC, fire protection, power, and hydro sanitation systems, INICA has been involved in the construction of at least 20,000 hotel rooms in Punta Cana. In Santa Domingo, where the firm is headquartered, it is involved primarily in the construction of apartment buildings and shopping malls.
“The reason we were not so experienced with cooling towers is because there is a lot of underground fresh water available throughout the country,” Miranda explained. “For the majority of HVAC systems, we were able to support the chillers with cold water pumped from wells. But with a facility as large as the new international terminal, the energy costs of pumping that much water would be too great. It quickly became obvious that a closed-loop system with cooling towers would be a much more practical solution.”

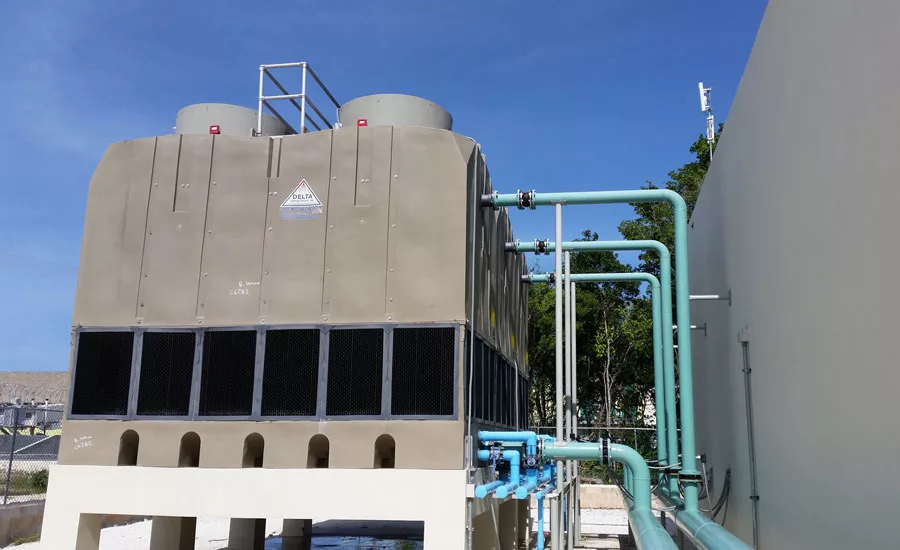

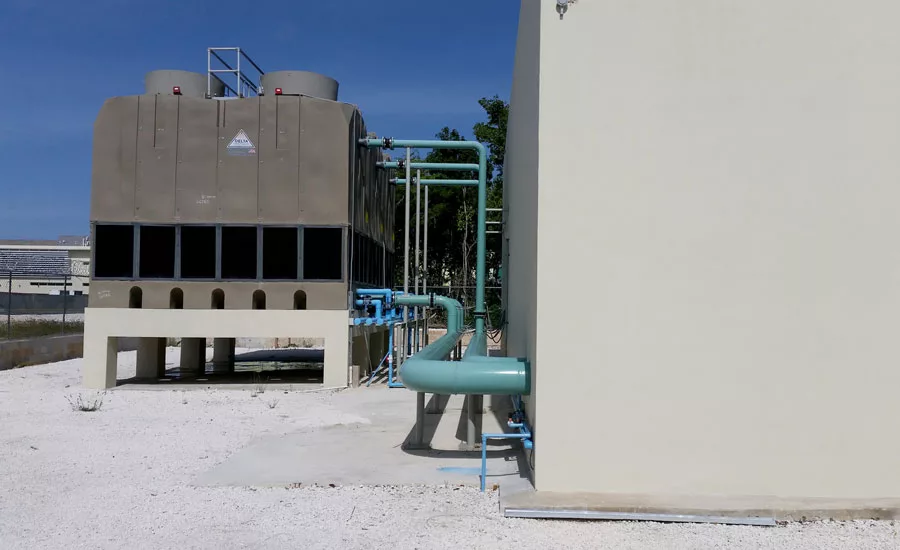

The cooling tower Miranda selected was a high-density polyethylene (HDPE) TM Series modular tower manufactured by Delta Cooling Towers. Delta manufactures a variety of engineered plastic models ranging from 10 to 2,500 cooling tons. The tower Miranda installed at the airport features three modular cells and provides 750 cooling tons.
“With the double-wall HDPE shell we are confident that this tower will be impervious to rust and corrosion problems,” Miranda said. “Also, the Delta TM Series features a direct-drive motor which should mean easier maintenance and lower energy consumption.”
Like other Delta cooling tower models, the TM Series cooling towers carry a 20-year warranty.
The ease of installation of the three-cell cooling tower was also an unexpected benefit.
“One of the things I like most about these cooling towers is the ease of assembling them at the project site,” Miranda explained. “In the case of the airport terminal, we were able to assemble and install the three cooling tower cells in just 24 hours. Because they were pre-assembled at the factory, and we only had to deal with two sections for each cell, that was easy to do using only a ladder. Even the direct-drive motors were pre-installed. This was quite beneficial since other cooling towers that we have looked at are shipped to the job site in many pieces, and assembling them will take two or three days to install just one cell.”
Maintenance is another positive. Not only will the corrosion problem of the salt air be prevented, but also the simplicity of the direct-drive fan drive system will require minimal service.
“The cooling tower has been installed for a year now, and we haven’t had a single service call yet,” Miranda said.
Now that the new International Terminal is completed, the Punta Cana airport is undertaking the modernization of its main terminal, a project that will take about a year. A new HVAC system will be part of the program, and INICA will handle that project.
“I don’t think there’s any doubt about it, we’ll be installing another TM Series modular cooling tower system,” noted Miranda.
For more information, visit www.deltacooling.com.
