Company: Emerson

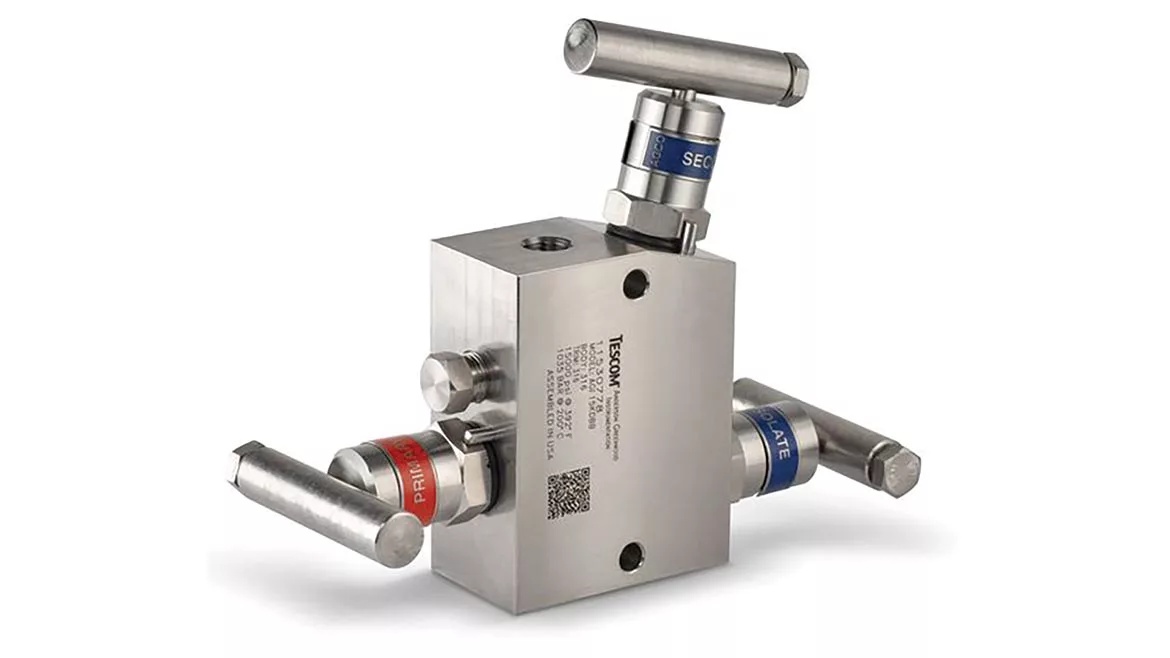

Product: TESCOM Anderson Greenwood Instrumentation H2 Valve Series

Description: Emerson has launched the TESCOM Anderson Greenwood Instrumentation H2 Valve Series for hydrogen applications up to 15,000 pounds-per square-inch (psi) (103.4 megapascal (MPa)). The new solution isolates process pressure in high-pressure gas applications such as hydrogen fueling stations and tube trailers, reducing fugitive emissions and improving safety. The double block bleed (DBB) valve’s positive double block arrangement provides two layers of positive shutoff that shield maintenance staff from high pressure during instrument maintenance. Its modular design reduces the number of potential leakage points, and the reinforced sealing technology reduces the risk of fuel entering the atmosphere through the valve stem. The hand-operated, maintenance-free design of the hand valves and double block and bleed valves in the H2 Valve Series minimizes maintenance and downtime. With low operating torque and adjustment-free seal technology, these hand valves deliver a low cost of ownership in a compact solution.

Contact: (314) 553-2000; www.emerson.com/en-us; eProduct 185

All product information is provided by the manufacturers. For questions or any further information, contact the manufacturer directly at the phone number and/or email listed.
