Company: U.S. Boiler Company

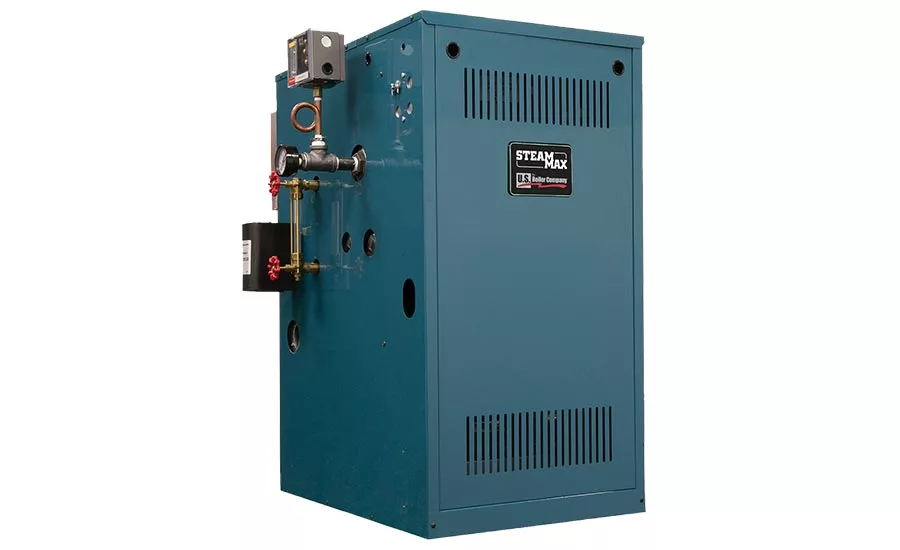

Product:  SteamMax Gas-Fired Steam Boiler

Description: The all-new SteamMax boiler features a completely new, steam-specific cast iron heat exchanger design that provides robust corrosion resistance in a wide variety of water conditions, along with an efficiency rating of 82% AFUE. The heat exchanger includes a larger steam chest with an increased steam disengaging area, a highly stable water line, and wider internal pathways. Heat transfer pins above the water line have been removed and added below the water line. Cast iron sections are joined via leak-free metal push nipples instead of gaskets. Additionally, the boiler’s steam risers are placed on intermediate sections to promote smooth steam flow. Pre-cut, near-boiler piping kits are available for residential models between 75 and 250 MBH. Its rear low-profile draft diverter increases overhead clearance, while tappings on both ends provides piping flexibility. An additional tapping (1.25 inch) is incorporated on the heat exchanger for the addition of an indirect tank or hydronic zone. Available in 12 sizes ranging from 75 MBH (169 square feet) to 550 MBH (1,396 square feet), the SteamMax boiler is covered by a 10-year waterside corrosion warranty (residential applications under 300 MBH).

Contact: 888-432-8887, www.usboiler.net, eProduct 183

All product information is provided by the manufacturers. For questions or any further information, contact the manufacturer directly at the phone number and/or email listed.
