Company: Warren Controls

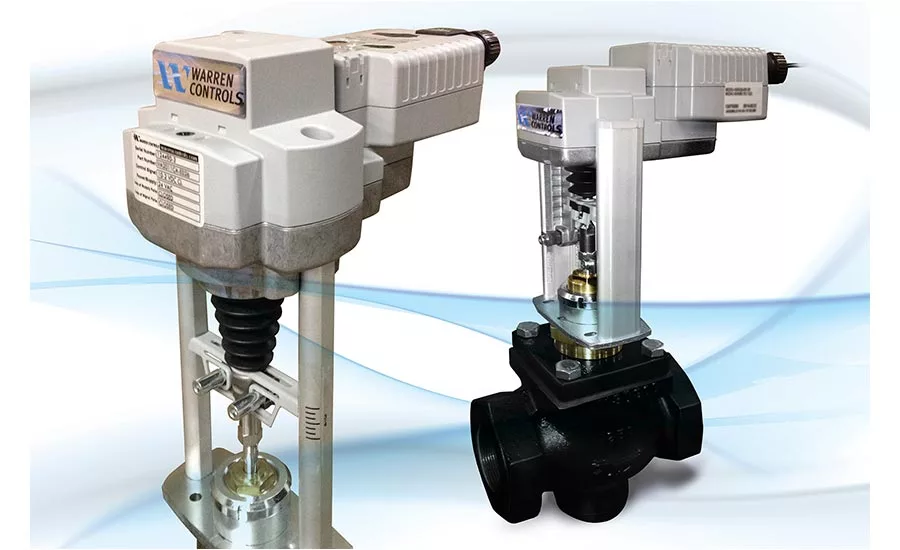

Product: Electrically Actuated HVAC/BAC Control Valves

Description: These products come in two- and three-way electrically actuated HVAC/BAC control valves. They are designed for domestic use and to assist in the transport of low-pressure steam or hot/cold water within a building for temperature regulation. The three-way valves are available in both mixing and diverting, with bronze or cast-iron bodies and bronze or stainless-steel trim. The two-way valves are available in three types: single seated unbalanced, single seated cylinder balanced, and double seated semi-balanced, with the same body and trim options as the three-way valves. The valves offer flowing differential pressure limits up to 100 pounds. Additionally, with many options available, the products can be perfectly calibrated to individual industrial needs. The series includes five different electric actuators for size, force, and failure mode. Pressure ratings are either ANSI 125 or 250 and sizes range from a ½-inch to 10 inches. Warren controls offers both a high degree of customization options and an individualized approach to helping customers determine which products will be right for their specific applications.

Contact: 800-922-0085,, eProduct 181
