Company: E+E Elektronik Ges.m.b.H

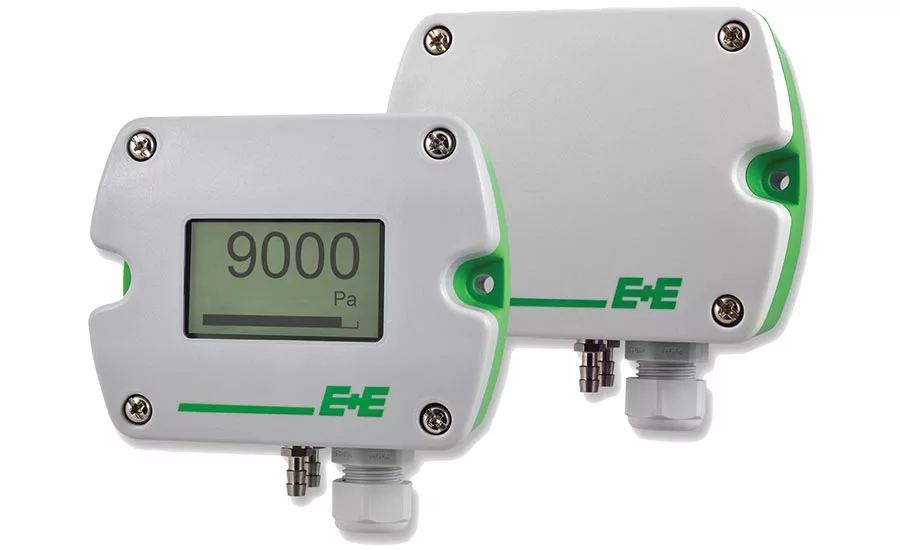

Description: This differential pressure sensor includes four measuring ranges that can be selected via DIP-switches on the electronics board. The transmitter is available with full-scale 1,000 Pa (4 inches of water column) and 10,000 Pa (40 inches of water column). The enclosure was designed to facilitate mounting and minimize installation costs. An optional graphic display shows the actual measured data. The unit is dedicated for the measurement of differential air pressure in ventilation and air conditioning systems or for filter monitoring. Additionally, it can be employed for all non-flammable and non-aggressive gases. The EE600 offers voltage and current output signals, both simultaneously available at the spring terminals. The device can be fitted with a large graphic display. The display backlight and the pressure unit (Pa, mbar, WC, kPa) can also be set via DIP-switches on the electronics board.
Contact: 847-490-0520; www.epluse.com; eProduct 184
