Air curtains allowed as vestibule substitutes in ASHRAE Standard 90.1-2019

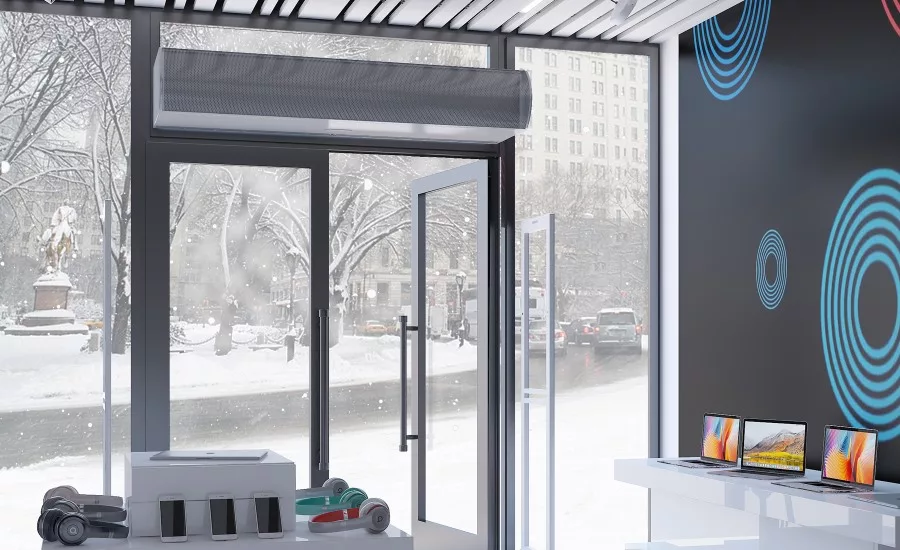

Doorway air curtains were approved June 2019 as alternatives to vestibules on most commercial building entries in the upcoming ASHRAE Standard 90.1-2019 “Energy Standard for Buildings Except Low Rise Residential Buildings.” The professional association’s approved addition requires that the air curtain performance be tested in accordance with ANSI/AMCA Standard 220 to ensure it provides a minimum 400-ft/min. airstream velocity at the floor.

The approval is seen as good news for retail, health care, hospitality, office and other facility owners, because they can now opt to forego the expense of vestibules in new construction, or repurpose significant square footage for more productive uses by retrofitting existing vestibules. Consulting engineers and architects, who previously were hesitant to supplant vestibules with air curtains due to inconsistent code language, now have the support of ASHRAE Standard 90.1-2019 which will be published this fall. Furthermore, HVAC contractors will see a spike in air curtain installations to accommodate facilities looking to prevent energy loss through their main entries and meet building codes. Air curtains also protect against the infiltration of outdoor air, fumes, flying insects, wind and dust through open doorways, and contribute to occupant air comfort.

The addition’s Air Curtain Effectiveness task force was sponsored by AMCA (Air Movement and Control Association–International), an Arlington Heights, Ill.-based trade association dedicated to certifying manufacturers' air performance statistics. “This is the most significant recognition of air curtains as an effective energy conservation device since the International Energy Conservation Code (IECC) approved air curtains as vestibule substitutes in 2015,” says David Johnson, president of AMCA, and director of engineering for air curtain manufacturer, Berner International, New Castle, Pa.

Inclusion in ASHRAE Standard 90.1 required more than eight years of air curtain research and presentations. The IECC code and the high performance overlay code, the International Green Construction Code (IgCC), helped initiate the path to Standard 90.1 acceptance by allowing AMCA-certified air curtains as substitutes for vestibules. However, ASHRAE’s mechanical, building envelope and other subcommittees required additional research of real world air curtain situations such as wind loads and building pressure differentials on an annual national-weighted average basis.
