Blue-Tube UV-X UVC Light – Fresh-Aire UV

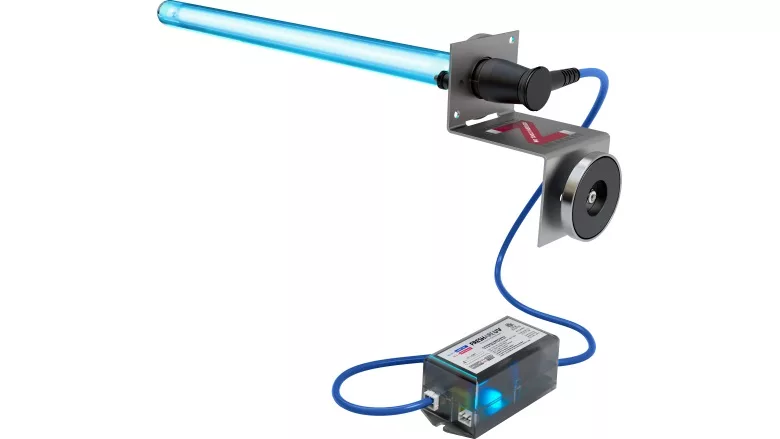

Image courtesy of Fresh-Aire UV
JUPITER, Fla. — Fresh-Aire UV®, a manufacturer of IAQ products, introduces the Blue-Tube UV-X, the enhanced, next generation series of UVC light, the Blue-Tube UV for HVAC systems. The feature-rich Blue-Tube UV-X features a three-year lamp, a newly designed mounting bracket, upgraded power supply, and 90-degree electrical connector.
Like its predecessor, the patented Blue-Tube UV-X keeps HVAC interiors clean of biological contaminants and continually treats the airstream.
The Blue-Tube UV-X’s mounting bracket redesign includes a smaller footprint and a powerful magnet with an anti-vibration coating that prevents vibrating out of position when positioned near an evaporator coil or in a plenum or duct. The mounting assembly also includes a 90-degree low profile electrical connector for the remote power supply that offers inches of more clearance than space-consuming straight plugs in HVAC confines.
The compact power supply, which carries Fresh-Aire UV’s renowned lifetime warranty, now features a power and lamp indicator LED on the low-voltage power supply model. The power supply is available in two models:
• 18-32 VAC, 60-Hz, 0.8-amps, 20-VA in a 4.2 (l) x 1.8 (w) x 1.7 (d)-inch (106 x 45 x 43-mm) enclosure; and
• 110-277 VAC, 60-Hz, 0.18-amps/120V through 0.09 Amps/277V in a 5 (l) x 2.4 (w) x 1 (d)-inch (127 x 61 x 25-mm) enclosure.
The Blue-Tube UV-X also features a three-year, 15-inch-long (381-mm) UVC (254-nm) quartz lamp and UL-2998 validation as free of potentially harmful ozone.
Other APCO-X MAG features include:
• Designed and assembled in the U.S.; and
• Consumer oriented packaging helps contractors educate consumers on the benefits of UV disinfection.
While SARS CoV-2 has inspired many industry products with airborne virus neutralization claims, the Blue-Tube UV-X maintains UVC fundamentals of reliable microbial prevention for sterile HVAC coils and interiors, in addition to airstream disinfection. For more information, visit www.freshaireuv.com.
