The challenge

The Lochinvar boilers installed more than 25 years ago on the FLCC main campus delivered state-of-the-art, high-efficiency performance in their day, but the college needed to upgrade in order to meet FLCC Forward’s ambitious energy-reduction goals.

Catherine Ahern, FLCC’s director of facilities and grounds, met with Bill Coe, director of project development for EMCOR Services-Betlem, and WMS Sales, a Lochinvar sales representative, to begin a New York State Energy Research and Development Authority (NYSERDA) study to identify capital projects to improve the college’s energy efficiency.

When the study was completed, Ahern and Coe began exploring options for replacing the domestic hot water system.

The solution

After a visit to Lochinvar, Ahern and Coe decided to integrate the company’s Micro CHP XRGI 25 cogeneration system into the capital project in order to increase savings further by connecting the school’s domestic hot water system to its space-heating hot water loop. Adding the cogeneration system will allow FLCC to generate electricity on-site.

FLCC received a $17,000 design-build incentive from New York State Energy & Gas (NYSEG), the first incentive ever given for a cogeneration project in the utility’s history.

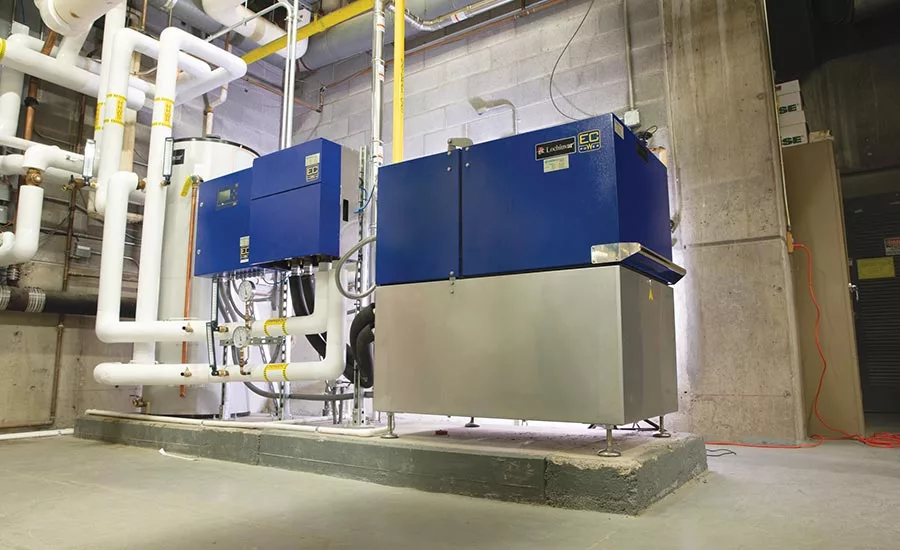

The college removed its two old boilers and replaced them with two Lochinvar KNIGHT 399,000-Btuh, high-efficiency boilers and two hot water storage tanks. The Micro CHP system was then piped in, prioritizing domestic hot water while also supplying space heating for nearly 500,000 square feet of campus buildings.

The Micro CHP system uses natural gas to simultaneously create heat for hot water and electricity that can be used on the campus. This capability is particularly important in regions of the country where there’s a wide “spark spread” – the difference between the low cost of natural gas and the high cost of local electricity.

By relying on the high-efficiency KNIGHT Boilers during periods of peak demand, the system provides all the hot water required at the school. Simultaneously, it generates electricity to reduce grid dependence and lower electrical costs using the same fuel used to produce hot water.
The results

“The Micro CHP cogeneration project demonstrates FLCC’s commitment to the sustainability and energy-saving goals that are central to our FLCC Forward strategy,” said Ahern.

“Adding the Micro CHP system along with the KNIGHT boilers will help FLCC achieve significant long-term savings by improving the efficiency of both space heating and domestic hot water delivery while simultaneously generating electricity on campus,” said Coe.

EMCOR Services-Betlem estimates that the school will reduce its annual electric bill by $11,074 per year by generating electricity on-site with the Micro CHP system. Cogeneration projects typically have a return on investment payback of four years or less – sometimes significantly less if the business is located in an area with a high spark spread.

The cogeneration system is the first commercial product released in Lochinvar’s partnership with EC POWER, a European producer of combined heat and power plants. The partnership aims to meet the fast-growing need for cogeneration products that can reduce the environmental impact and electricity costs for commercial businesses across North America.
