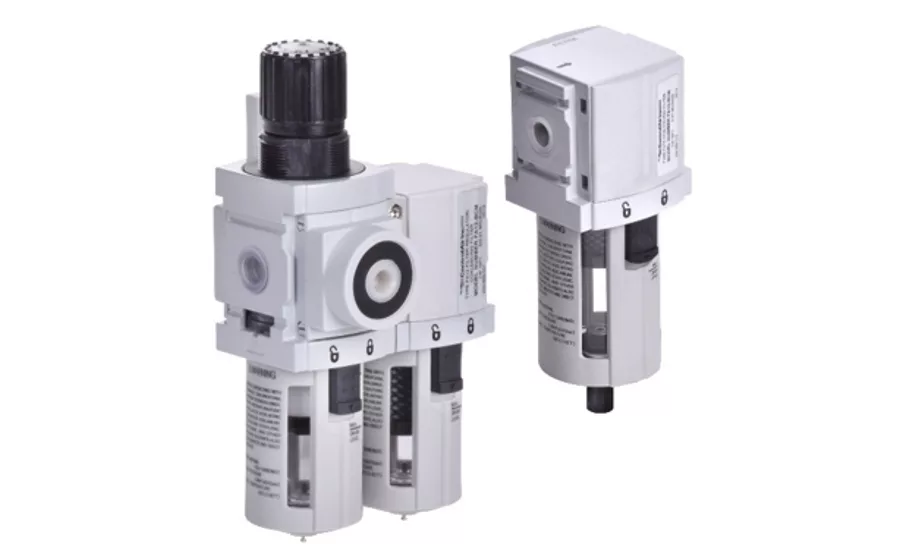

AMHERST, N.H. — ControlAir Inc., a manufacturer of precision pneumatic and electro-pneumatic control products, introduced its new Type FA10 Coalescing Filter and the Type FA12 Filter Regulator/Coalescing Filter Combo. The Type FA10 Coalescing Filter is specifically designed to remove liquid aerosols and sub-micron particles from compressed air. The Type FA12 Filter Regulator with Coalescing Filter combines the coalescing filter with a high-performance filter regulator in one convenient piggy-back assembly.
In many industries, the quality of airflow is critical for equipment performance and longevity. ControlAir’s Coalescing Filters help protect equipment and processes by efficiently removing oil or water droplets and particulate solids from compressed air systems. Droplets are captured, coalesced, and drained to the bottom of the polycarbonate bowl, preventing filtered droplet re-entrainment into the air flow. The polycarbonate bowl allows for visual indication of the filtered liquid level. Quick release locks on the drain bowls allow for fast and easy replacement of the filter elements. The Type FA10 and Type FA12 provide high flow rates, low pressure drops, and long service life.
The Type FA10 Coalescing Filter provides superior filtration down to 0.3 or 0.01 micron. Offered with 1/8-, ¼-, or ½-inch NPT porting. Maximum operating pressure up to 150 psig (10 bar) and proof pressure of 200 psig (15 bar). Temperature limits of 23° to 140°F (minus 5° to 60°C). Flow capacities range up to 39 scfm (1,100 l/m). Drain capacities range up to 1.89 oz (56 cm3). The unit can be mounted in-line or with bracket.
The Type FA12 Filter Regulator/Coalescing Filter Combo comes in one convenient compact package. The high-performance filter regulator provides accurate pressure regulation and filtration to 5 micron, while the coalescing filter provides further filtration down to 0.3 or 0.01 micron. The Type FA12 offers 1/8- or ¼-inch NPT porting. Operating pressure range of 7-140 psig (0.5-10 bar). Supply pressure up to 150 psig (10.5 bar). Temperature limits of 23° to 140°F (minus 5° to 60°C). Flow capacities range up to 46 scfm (1,300 l/m). Drain capacities range up to 1.28 oz (38 cm3). The unit can be mounted in-line or with a bracket.
ControlAir Coalescing Filters protect expensive analytical equipment and instrumentation from damage. Applications include air intended for use with air conveyors, air gauging, spray painting, food processing and packaging, dairy, breweries, semi-conductor processing and packaging, cosmetics, film processing, bottling, textile looms, pneumatic instrumentation, aeration in pharmaceutical and chemical processes, medical, robotics and close tolerance valves, blow molding, and more. For more information, visit www.controlair.com.
